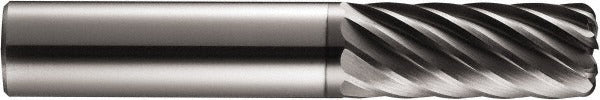

Sgs 46627 Corner Radius End Mill 6mm 7 Flute Carbide

Product Description

The SGS 46627 is a solid carbide corner radius end mill engineered for finishing operations in steel and similar ferrous materials. It features a 6 mm cutting diameter, a 19 mm length of cut, and a 0.5 mm corner radius that reduces stress concentrations at part edges and extends tool life in demanding machining environments. With 7 flutes in a close-pitch configuration and a medium helix spiral geometry, this end mill promotes efficient chip evacuation and stable cutting at higher feed rates. The TX coating provides thermal and wear resistance suited to dry or minimum-quantity lubrication machining of steel workpieces.

This end mill is designed for finishing passes on steel components in CNC milling applications. The single-end, right-hand cutting, straight-cylindrical shank fits standard end mill toolholders and collet chucks. The long flute length type and 63 mm overall length make it well suited to moderate-depth side milling and profiling operations where a fine corner radius is required. It is intended for use in professional machine shop environments by machinists working with ferrous and tool steel grades.

Key Features

• 7-flute close-pitch geometry supports high feed rates and smooth surface finishes on steel
• 0.5 mm corner radius reduces edge chipping and stress risers on finished parts
• Solid micrograin carbide substrate delivers rigidity and wear resistance
• TX coating provides elevated thermal protection for dry and semi-dry cutting
• Medium helix spiral flutes promote stable chip flow and reduce cutting forces
• Straight-cylindrical shank with h6 tolerance fits precision end mill toolholders

Compatibility

Designed for use with standard end mill toolholders and collet chucks accepting an 8 mm shank diameter. Primary workpiece material is steel (material code P). Series 66M Multi-Carb geometry is optimized for finishing operations on ferrous materials.

Installation Notes

Installation and tool changes must be performed by a qualified machinist with the machine in a full stop, locked-out state. Ensure the toolholder bore and shank are clean and free of debris before seating the end mill. Confirm runout at the cutting end is within acceptable limits for the application before beginning a cut. Follow the machine tool manufacturer and cutting tool manufacturer guidelines for speeds, feeds, and depth of cut for the specific workpiece material.
