Product Description
The Senva HT1R-2AUD is a humidity and temperature sensor designed for recessed or wall mounting. The HT1 series features a newly engineered enclosure for quick installation. It has a universal analog output and a variety of thermistor options for on-site flexibility. Mounts easily in any junction box or directly to drywall using built-in drywall clamps.
- LCD and non-LCD versions available

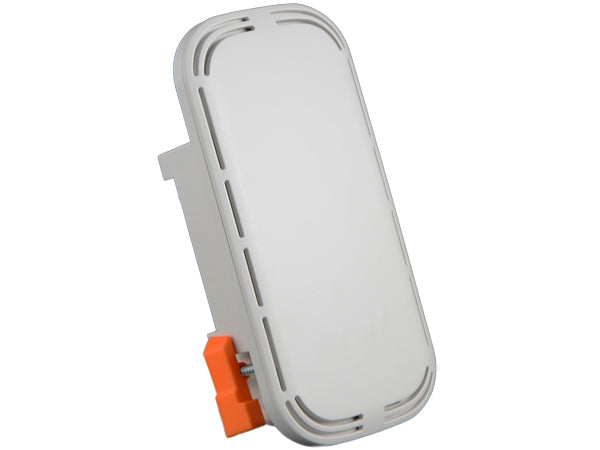

- Attachable dry wall clamps for easy retrofit installation
- Universal analog output provides 0-5V, 0-10V, 2-wire or 3-wire 4-20mA
Product Highlights
This humidity and temperature sensor offers versatile mounting options and easy installation, ideal for schools and institutional environments.
Product Information
Standard Information
-
Brand: SENVA
-
Manufacturer Part Number: HT1R-2AUD
-
Country of Origin: USA
Technical Specifications
-
Power Supply: 12-30VDC/24VAC (1), 100mA max.
-
Outputs: RH% and Temperature 3-wire 0-5, 10V (4), or 4-20mA, 2-wire 4-20mA(selectable)
-
Output scaling RH%: 0-100% RH
-
Temperature: 50-95 F (10-35 C) or 32-122 F (0-50 C)
-
Thermistor Options: Yes, see ordering table
-
Media filter: PTFE membrane, IP54 protection
-
Relative Humidity Accuracy: 2% models: 2% max 0 to 100% RH
-
Resolution: 0.01 C
-
Hysteresis: 0.8%RH
-
Non-Linearity: factory linearized <1%RH
-
Temperature coefficient: fully compensated by on-board temp sensor
-
Response time (2): 2s
-
Output update rate: 0.5s
-
Operating range: -40 C to 140 F (-40 to 60 C)
-
Long term drift: <0.25%RH per year
-
Normal Operating conditions (3): 41 to 140 F (5 to 60 C) @ 20 to 80%RH
-
Temperature Accuracy: 2% models, < 1 C; 0.5 C typ @ 25 C 3% models, < 2 C; 0.5 C typ @ 25 C
-
Repeatability: 0.04 C
-
Temperature Scaling: 50-95 F (10-35 C)
-
Environmental Enclosure Rating: IP20/NEMA 1
-
Unit Temp Rating: -40 C to 158 F (-40 to 70 C)
-
Compliance Agency: CE, RoHS
-
Sensor Type: Wall Mount
-
Temperature Element: None
-
Supported Protocols: None
-
Humidity Element: 2%
-
CO2 Element: None
-
Setpoint: No Setpoint
-
Override: No Override
-

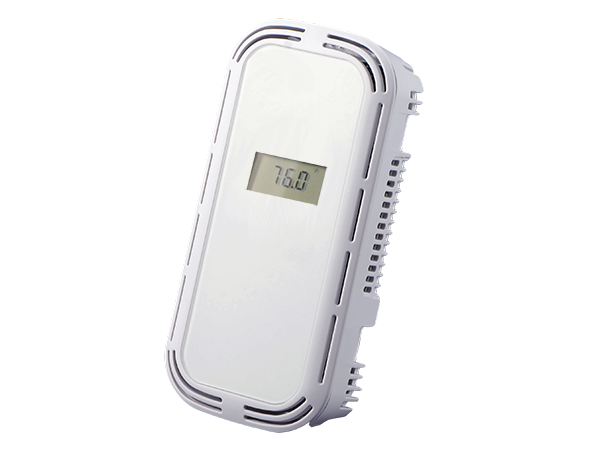

Display: LCD Display
-
Item Number: HT1R-2AUD
-
Brand: Senva Sensors
