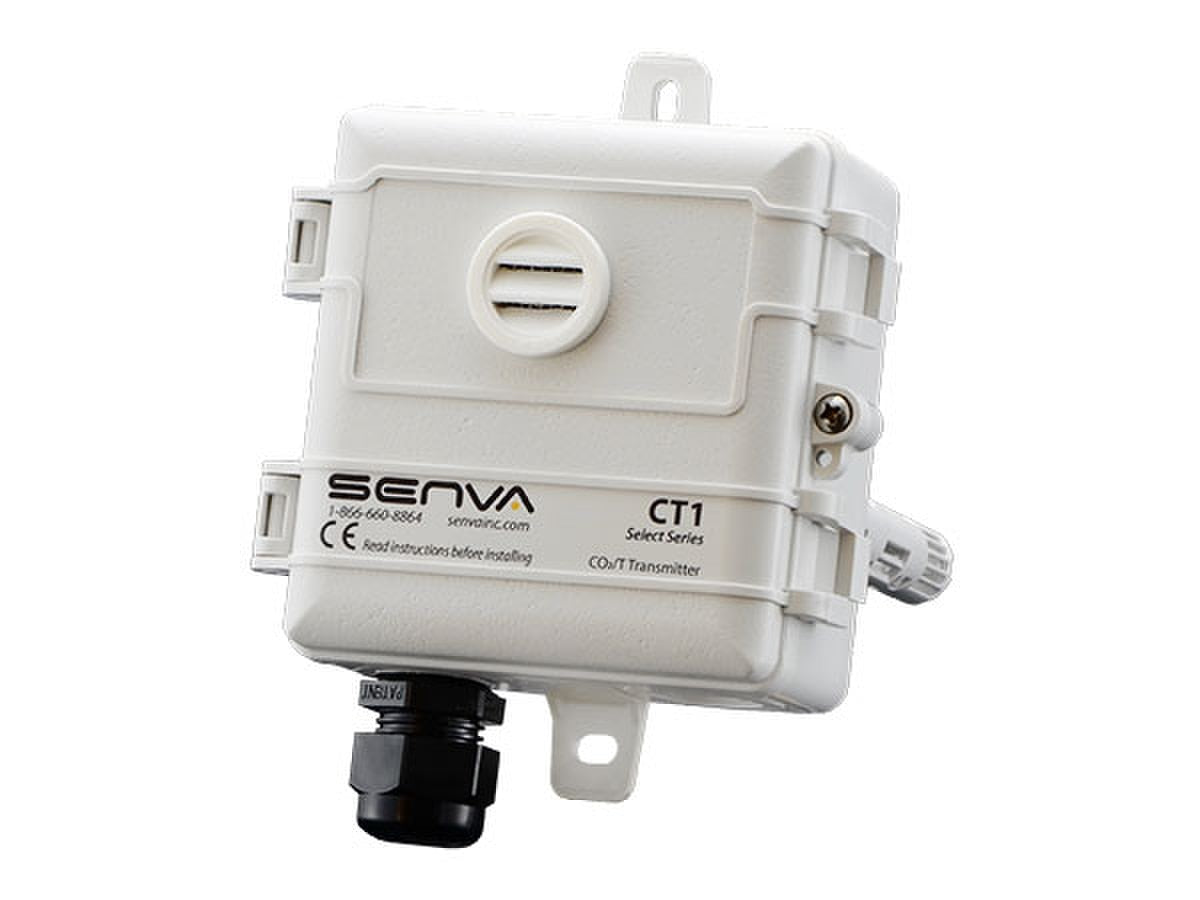

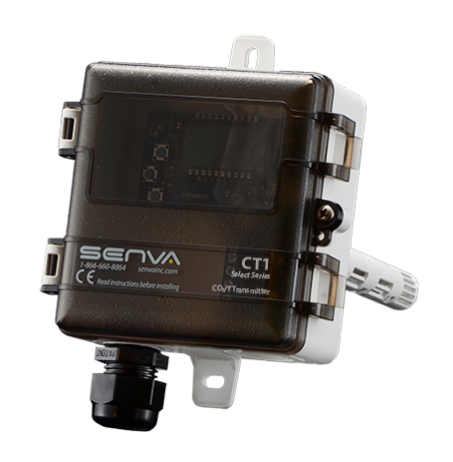

Senva CT1D-A3D Co2 Duct Lcd Notemp

Product Description

The SENVA CT1D-A3D CO2 sensors maximize energy savings by ensuring optimal ventilation. This duct CO2 sensor features dual analog 3-wire 4-20mA and 0-5V/0-10V outputs and a programmable solid-state digital setpoint output. It is designed for greenhouse, laboratory, food & beverage, IAQ, parking garage, agricultural, and transportation applications.

• Easy to install and maintain
• High reliability reduces call backs
• High accuracy for improved system performance

Product Highlights

Maximize energy savings with SENVA's CT1D-A3D CO2 sensor, ensuring optimal ventilation and high accuracy for various applications.

Product Information

Standard Information

• Brand: SENVA
• Manufacturer Part Number: CT1D-A3D
• Country of Origin: USA

Technical Specifications

• Output Type: V or mA
• Display: No
• Measurement Range: 0 - 500 ppm
• Application: Greenhouse,Laboratory,Food & Beverage,IAQ,Parking Garage,Agricultural,Transportation
• Output Signal: Voltage,Current
• Mount: Duct
• Supply Voltage: 12-30VDC/24VAC (1), 100mA max.
• Analog Outputs: Dual Analog 3-wire 4-20mA and 0-5V/0-10V (2) (jumper)
• Output scaling: 0 - 2000 or 0 - 5000 ppm (selectable)
• Digital Setpoint Output: Programmable Solid-state, 1A @ 30VAC/DC, N.O.
• Temperature: 14 to 122 F (-10 to 50 C)
• Humidity: 0-95% non-condensing
• Enclosure Material: ABS Plastic
• Dimensions: 4.7"H x 2.9"W x 1.24"D (0.48" x wall profile)
• Power Supply: 12-30VDC/24VAC(1), 100mA max.
• Accuracy: 30ppm, 3% of reading (400-2000ppm) 50ppm, 5% of reading (2000-5000ppm) Consult Factory for accuracy above 5000ppm
• Response time: 60 seconds to 90% reading
• Output update rate: 1 second
• SPH, Setpoint, Hi (On point): 500ppm to full-scale (800ppm default)
• SPL, Setpoint, Lo (Off point): 400ppm to full-scale-50 (700ppm default)
• SCL, Scaling: 0-2000ppm, 0-5000ppm, 0-10000ppm (2000ppm default)
• ADJ, Adjustment: Offset adjustment +/-250ppm (0 default)
• CAL, Calibration mode: Automatic mode ON or OFF (default=ON)
• RUN, Run mode: Displays CO2 in ppm
• Enclosure: ABS/Polycarbonate
• Sensor Type: Duct Mount
• Humidity Element: None
• CO2 Element: Yes
• Temperature Element: None
• VOC: No
• MPN: CT1D-A3D
• Brand: SENVA
• Product category: Gas & Specialty Sensors
• Product subcategory: Indoor Air Quality
• Supplier part number: CT1D-A3D
• Yorkland id: CT1D-A3D
