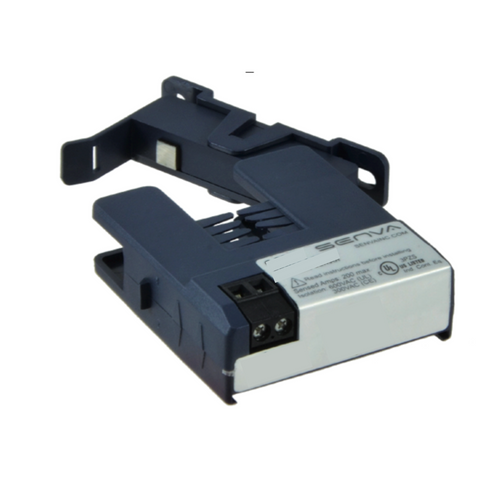

Senva C-2343 analog 0-5VDC current sensor 30-60-120A

Product Description

The Senva analog transducers measure AC current and provide a proportional output for load trending and control. The SENVA C-2343 offers selectable ranges and optional command relay make for a versatile transducer. Choose from easy to install split-core or compact solid core.

• Multiple selectable range split-cores
• Selectable ranges reduce inventory and minimize callbacks. Made in USA

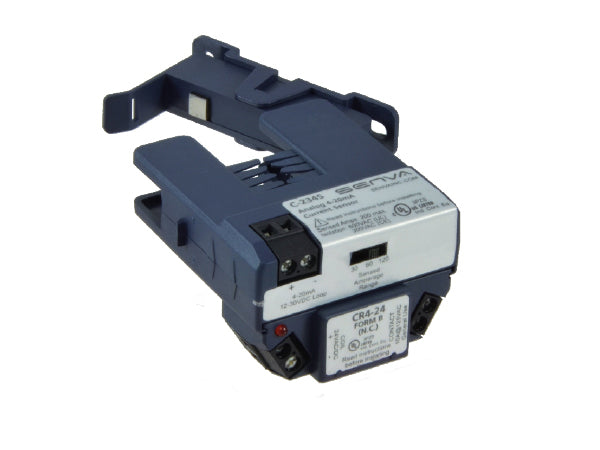

• Optional CR command relay for stop/start/status in a single labor saving device.

Product Highlights

Factory calibrated with 0-5VDC, 0-10VDC, and 4-20mA linear output options. No call backs due to mis-sizing.

Product Information

Standard Information

• Brand: SENVA
• Manufacturer Part Number: C-2343
• Country of Origin: USA

Technical Specifications

• Environmental Rating: 5-140 F (-15-60 C) 10-90% RH Non-condensing
• Insulation Class: 600V RMS. For use on insulated conductors only!
• Accuracy: +/-2% F.S. over 10 to 100% range
• Frequency Range: 50/60Hz
• Temperature Rating: -15-60 C
• Mounting Type: Split-Core
• Selectable Range: 0-30/60/120A
• Output Signal: 0-5VDC
