Senva C-2320-L ECM Current Switch ECM N.O. Split-Core 0.25-200A Range

Product Description

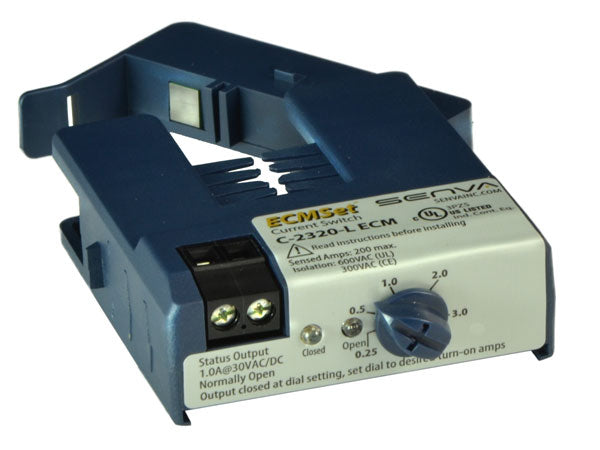

The SENVA C-2320-L ECM is a split-core current switch designed for accurate no/go run detection on Electronically Commutated Motors (ECMs). It features a wide amperage range of 0.25-200A and a normally open, 1.0A@30VAC/DC output for simplified integration into control systems.

• Turn-on setpoint minimizes false trips due to standby ECM inverter draw.

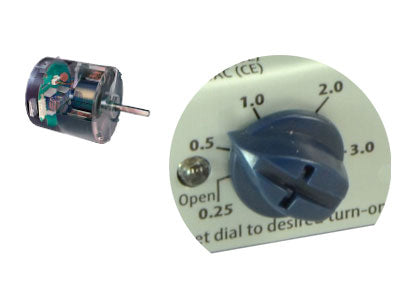

• Tool-free adjustable trip-point as low as 0.25A
• Precise ECM Run Detection: 0.25-200A range with adjustable setpoint to ignore standby current.

Product Highlights

This current switch is ideal for monitoring ECMs in HVAC, data centers, and industrial equipment. It ensures reliable motor status monitoring and reduces maintenance calls.

Product Information

Standard Information

• Brand: SENVA
• Manufacturer Part Number: C-2320-L ECM
• Country of Origin: USA

Technical Specifications

• Vendor: SENVA
• SKU Number: C-2320-L ECM
• Standard Output Rating: 1.0A@30VAC/DC
• Output Type: NO, solid-state FET
• Environmental Rating: 5-140 °F (-15-60 °C) 10-90% RH Non-condensing
• Insulation Class: 600V RMS. For use on insulated conductors only! Use minimum 75 ° C insulated conductor
• Sensor Power: Induced
• Frequency Range: 50/60Hz
• Sensor Aperture: 0.75"
• Compliance: cUL, UL, CE, RoHS
• Core Type: Split
• Set Point Type: Adj.
• Connection: Terminals
• Contact Form: SPST
• Current Range: 0.25 - 200 A
• Trip Point Type: Adjustable
• Output Signal: Relay
• Mount: Split Core
• Temperature Rating: -15-60 ° C
• Mounting Type: Split-Core
• Setpoint: Adjustable Trip
• Contact Type: Normally Open
• Amp Range: 0.25-200A
• Contact Rating: 1.0A @ 30VAC/DC
• Contact Termination: Terminal Strip
• Brand: Senva Sensors
