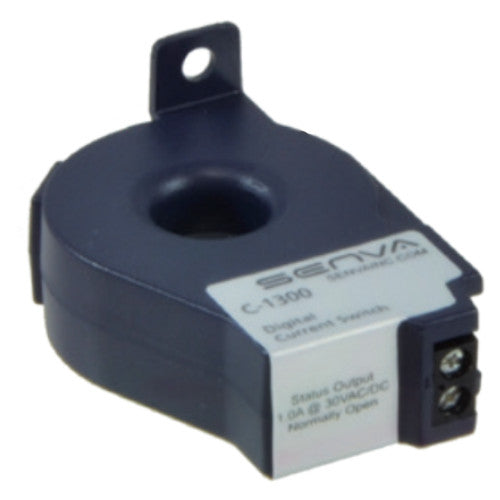

Senva C-1300 Current Switch, Go/No, N.O., Solid-Core

Product Description

The SENVA C-1300 is a solid-core AC Current Transducer with a fixed threshold trip point which detects the presence of current. It provides cost-effective status monitoring for unit vents, exhaust fans, recirculation pumps and other fixed loads. It has an amperage range of 0.25 - 200 A.

• Mini-solid core fits in the smallest enclosures
• Run status based on current
• Solid state - no moving parts to fail

Product Highlights

The SENVA C-1300 is reliable and cost-effective. It is ideal for status monitoring for unit vents, exhaust fans, and recirculation pumps.

Product Information

Standard Information

• Brand: SENVA
• Manufacturer Part Number: C-1300
• Country of Origin: USA

Technical Specifications

• Current Range: 0.25 - 200 A
• Trip Point Type: Fixed
• Mount: Solid Core
• Standard Output Rating: 1.0A@30VAC/DC
• Line Voltage Output Rating: 0.2A@120VAC (-HV models only)
• Output Type: N.O., soli-state FET
• Environmental Rating: 5-140°F (15-60°C) 10-90% RH non-condensing
• Insulation Class: 600V RMS. For use on insulated conductors only! Use minimum 75°C insulated conductor
• Sensor Power: Induced
• Frequency Range: 50/60 Hz
• MPN: C-1300
• Brand: SENVA
• Diameter: 0.5" Window
• Features: Solid-Core CT
• Manufacturer: Senva
• Type: Current Transducers
