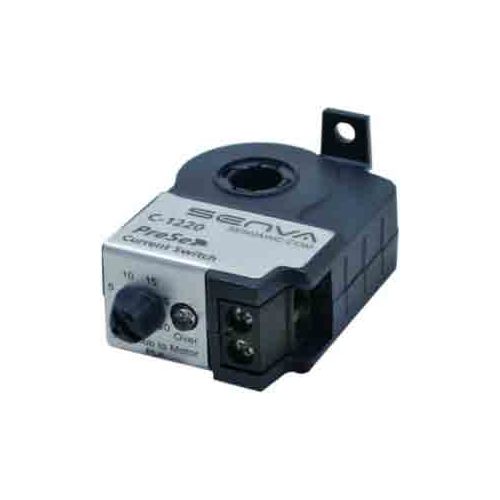

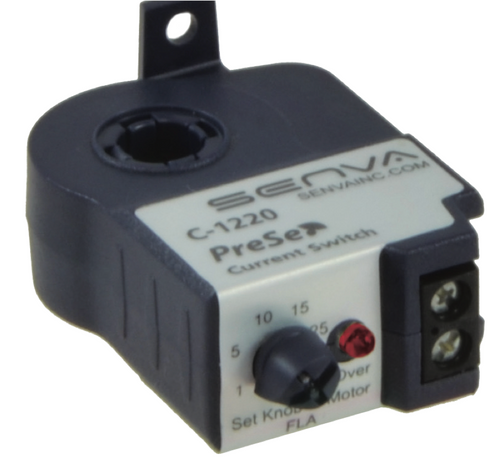

Senva C-1220 Current Switch 0.75-50A

Product Description

The SENVA C-1220 is a Preset Solid-Core Mini Current Switch with an adjustable amperage range of 0.75-50A. It features a normally open contact type with a rating of 1.0A@30VAC/DC and a trip LED. This current switch is designed for use on insulated conductors only.

• PreSet Solid-Core Mini Current Switch
• Adjustable Amperage Range
• Normally Open

Product Highlights

The SENVA C-1220 current switch is made in the USA and is designed to detect motor undercurrent conditions such as belt loss, coupling shear, and mechanical failure on fans and pumps.

Product Information

Standard Information

• Brand: SENVA
• Manufacturer Part Number: C-1220
• Country of Origin: USA

Technical Specifications

• Adjustable Amperage Range: 0.75-50A
• Contact Type: Normally Open
• Contact Rating: 1.0A@30VAC/DC
• Standard Output Rating: 1.0A@30VAC/DC
• Line Voltage Output Rating: 0.2A@120VAC (-HV ONLY)
• Output Type: NO, solid-state FET
• Environmental Rating: 5-140 10-90% RH Non-condensing
• Insulation Class: 600V RMS. For use on insulated conductors only! Use minimum 75
• Sensor Power: Induced
• Frequency Range: 50/60Hz
• Temperature Rating: -15-60
• Mounting Type: Solid-Core
• Setpoint: Adjustable Trip
• Amp Range: 0.75 to 50A
• Contact Termination: Terminal Strip
