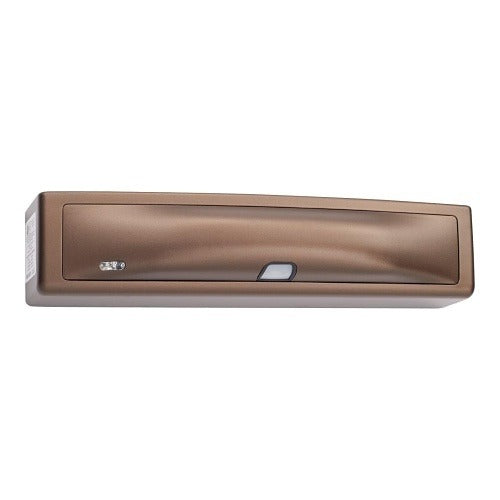

Securitron -u.s. M680EBD-612 Electromagnetic Door Lock

Product Description

The SECURITRON -U.S. M680EBD-612 is an electromagnetic door lock designed for access control applications in commercial and institutional facilities. Operating on 12 or 24 volts DC, this mag lock holds a door secured by generating a strong magnetic bond between the electromagnet body and the armature plate mounted to the door. Licensed electricians and security system integrators are the primary installers. The M680EBD-612 belongs to the Eco Magnalock 680 series, a product line built for reliable fail-safe door locking in high-traffic entryways.

This electromagnetic lock is suited for single door applications in commercial buildings, office entries, stairwell doors, and secured access points where a fail-safe locking solution is required. It is appropriate for both new installations and retrofit projects where an existing magnetic lock is being replaced. The dual-voltage 12/24VDC input makes it compatible with a wide range of access control power supplies commonly found in the field.

Key Features

• Dual-voltage operation at 12 or 24 volts DC for flexible power supply compatibility
• Fail-safe design releases door upon power loss, meeting standard egress requirements
• Electromagnetic locking mechanism with no moving mechanical parts for low maintenance
• Part of the Eco Magnalock 680 series for consistent performance in access control systems
• Sold as a single unit (EA), suitable for individual door installations

Compatibility

Designed as an OEM-style replacement or new installation electromagnetic lock for commercial access control systems requiring a 12/24VDC fail-safe mag lock solution.

Installation Notes

Installation should be performed by a licensed electrician or a certified access control integrator in accordance with NFPA 70 (NEC) and applicable local codes. Disconnect and lock out all power to the access control system before beginning installation or wiring. Mount the electromagnet body to the door frame and the armature plate to the door surface, ensuring proper alignment for full magnetic contact. Do not apply power until all mechanical mounting and wiring connections have been verified and secured.
