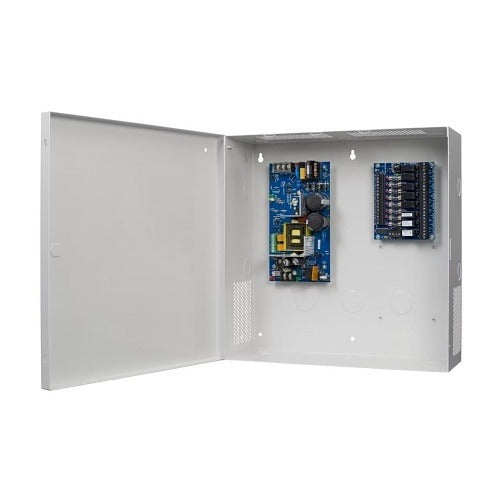

Securitron -u.s. AQD6-4C1R1 Supervised Power Supply

Product Description

The SECURITRON -U.S. AQD6-4C1R1 is a supervised access control power supply designed to deliver regulated 12 or 24 volt DC output at up to 6 amps. Supervised power supplies continuously monitor output circuits for fault conditions, providing status feedback to a connected access control panel or alarm system. This unit is suited for powering electric locks, magnetic locks, door strikes, and other low-voltage access hardware in commercial security installations. Licensed electricians and security system integrators typically handle the installation of this class of equipment.

The AQD6-4C1R1 is intended for use in commercial and light industrial access control systems where supervised power distribution is required. It supports both 12 VDC and 24 VDC output configurations, making it adaptable to a range of field devices. Typical installations include multi-door access control panels, electric locking hardware, and integrated security system backplanes where continuous monitoring of the power circuit is a code or system requirement.

Key Features

• Supervised output continuously monitors circuits for fault conditions and reports status to the control panel
• Dual voltage output selectable at 12 VDC or 24 VDC to match field device requirements
• 6 amp output capacity supports multiple low-voltage access control devices on a single supply
• Designed for commercial access control applications including electric locks and door hardware

Compatibility

Designed as an OEM-style replacement or direct installation unit for commercial access control power distribution systems requiring supervised 12 or 24 VDC supply at 6 amps.

Installation Notes

Installation should be performed by a licensed electrician or credentialed security systems integrator in accordance with NFPA 70 (NEC) and applicable local codes. Disconnect and de-energize all circuits before servicing or wiring the unit. Verify that connected load current draw does not exceed the rated 6 amp output. Confirm output voltage selection matches the requirements of all downstream devices before energizing.
