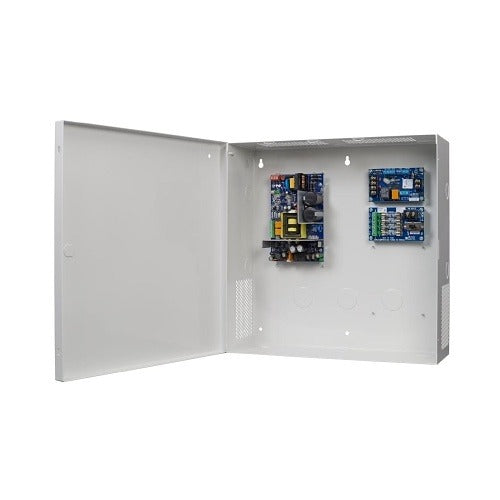

Securitron -u.s. AQD4-8C8R1 Supervised Power Supply

Product Description

The SECURITRON -U.S. AQD4-8C8R1 is a supervised power supply designed for access control applications operating at 12 or 24 volts DC. Supervised power supplies continuously monitor output circuits and report fault conditions, making them a critical component in life-safety and security installations. The AQD4-8C8R1 is configured with 8 outputs and 8 relays, providing a multi-zone power distribution solution. Licensed security and low-voltage electricians typically specify and install this unit in commercial and institutional access control panels.

This power supply is suited for commercial access control environments where supervised, multi-output power distribution is required. The dual-voltage operation at 12 or 24 volts DC allows integration with a wide range of access control hardware including door strikes, magnetic locks, and card reader systems. Its supervised design supports system-level monitoring requirements common in commercial security installations.

Key Features

• Supervised outputs for continuous circuit fault monitoring
• Dual-voltage operation: 12 or 24 volts DC selectable
• 8 power outputs for multi-zone distribution
• 8 onboard relays for switching and control functions
• Designed for commercial access control panel integration

Compatibility

Designed as an OEM-style replacement or primary unit for commercial access control power distribution systems requiring supervised 12 or 24 volt DC multi-output power supplies.

Installation Notes

Installation should be performed by a licensed low-voltage electrician or certified access control technician in accordance with applicable NEC requirements for power-limited and non-power-limited circuits. Disconnect all power to the panel and connected door hardware before wiring or servicing this unit. Verify output voltage selection matches the connected load requirements before energizing. Follow the manufacturer data sheet for relay and output wiring diagrams.
