Securitron MCL-24 Magnetic Cabinet Maglock 24V

Product Description

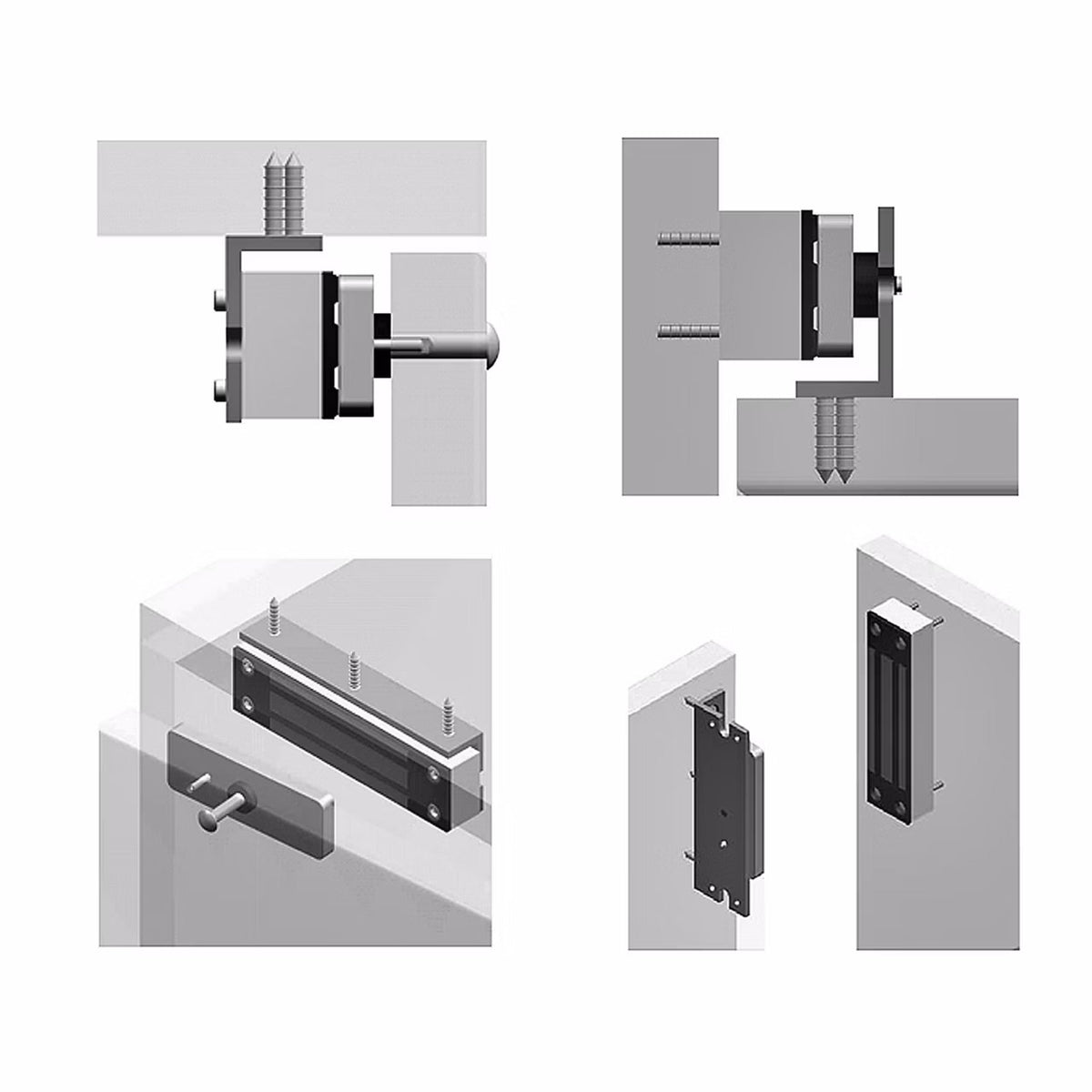

The SECURITRON MCL-24 is a magnetic lock designed to extend access control to cabinets and enclosures. This compact magnetic lock is ideal for asset management in applications such as jewelry cases, museum cases, gun cabinets, pharmaceutical storage, and cash drawers. It is suitable for any swinging or sliding door or drawer requiring asset control, both indoors and outdoors.

• Features an architectural brushed stainless steel finish (US32D/630).
• Equipped with six feet [1.8m] of jacketed, stranded conductor cable.
• Fully sealed electronics provide tamper and weather resistance.

Product Highlights

The MCL-24 magnetic lock offers versatile asset protection with easy surface mounting and durable construction for indoor or outdoor use.

Product Information

Standard Information

• Brand: SECURITRON
• Manufacturer Part Number: MCL-24

Technical Specifications

• Maximum Operating Temperature (° F): 140
• Minimum Operating Temperature (° F): -40
• Current 24v DC (amps): 0.084
• Voltage: 24
• Holding Force (lbs): 170
• Magnet Depth (in): 1
• Magnet Height (in): 1.125
• Magnet Length (in): 4.625
• Outdoor Rated: Yes
• Fire Rated: No
• Preload Capable: Yes
