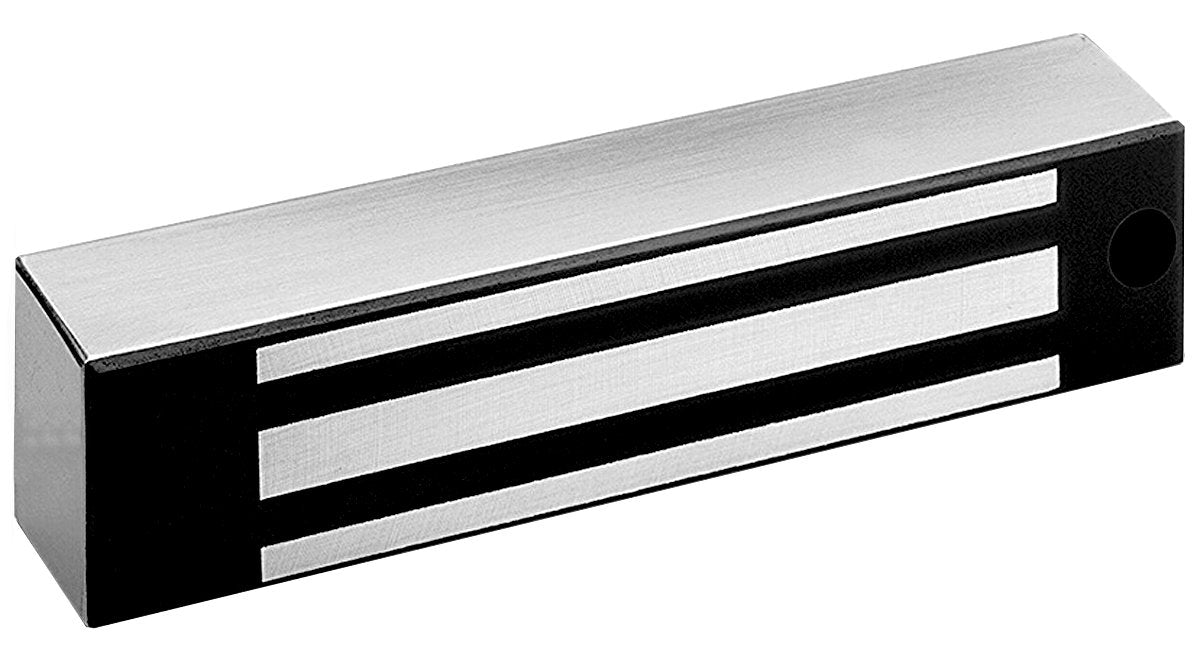

Securitron M32FB Electromagnetic Lock 12V 24V Dc

Product Description

The SECURITRON M32FB is a dual-voltage electromagnetic door lock rated for both 12 volt and 24 volt DC operation, finished in satin stainless steel (MBS). It belongs to the M32 Magnalock product line, a series of high-holding-force electromagnetic locks designed for access control applications in commercial and institutional buildings. The unit arrives with the face plate pre-drilled, reducing field modification time during installation. Access control integrators and licensed electricians are the primary trades that specify and install this hardware.

This electromagnetic lock is suited for single-door access control installations where a controlled, fail-safe locking solution is required. Typical applications include interior and perimeter doors in commercial office buildings, government facilities, healthcare environments, and educational institutions. The satin stainless steel finish makes it a practical choice for high-visibility or corrosion-resistant installations. The face-drilled configuration (MBS) is intended for use with specific mounting bracket assemblies that align with the pre-drilled pattern on the lock body.

Key Features

• Dual-voltage operation: compatible with both 12 volt and 24 volt DC power supplies
• Satin stainless steel (MBS) finish for corrosion resistance and clean aesthetics
• Face-drilled configuration reduces field drilling and speeds bracket installation
• Compact form factor at 11.7 inches long x 5.9 inches wide x 3.3 inches tall
• Sold individually as a single unit (EA)

Compatibility

Designed as an OEM-style electromagnetic lock for commercial single-door access control systems requiring a dual-voltage, fail-safe locking device with a face-drilled MBS bracket mounting configuration.

Installation Notes

Installation should be performed by a qualified access control integrator or licensed electrician in accordance with applicable NFPA 70 (NEC) requirements and local building codes. Disconnect and lock out all power to the access control panel and door hardware circuit before mounting or wiring the lock. Verify the power supply output matches the selected operating voltage (12 volt or 24 volt DC) before energizing. Do not exceed the rated supply voltage, and ensure the mounting surface and bracket hardware are appropriate for the pre-drilled face pattern on the M32FB.
