Securitron EL-EPT Electromagnetic Lock Power Supply Electrical Power Transfer (1 Pack)

Product Description

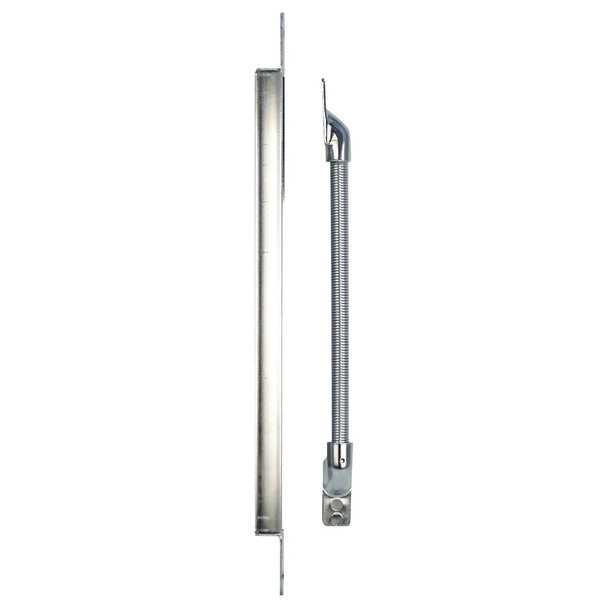

The Securitron EL-EPT is an electromagnetic lock power supply that provides electrical power transfer for electromagnetic locking systems. The unit features a steel housing, a flexible steel conduit to protect wiring, and includes comprehensive mounting hardware and bezel/lead cover. It installs into door and frame edges and is compatible with butt hinges, continuous hinges, and offset pivot hinges up to 3/4 inch.

• Steel housing with included mounting hardware, bezel plate, flexible shield, and lead cover
• Flexible steel conduit protects wiring; conduit inside diameter 3/8 inch (9.5 mm)
• Compatible with butt, continuous, and offset pivot hinges up to 3/4 inch (19.0 mm); not for center pivot doors

Product Highlights

Concealed electrical power transfer for electrified locks with steel housing and flexible conduit; meets multiple UL and ANSI standards.

Product Information

Standard Information

• Brand: SECURITRON
• Manufacturer Part Number: EL-EPT
• Country of Origin: United States

Technical Specifications

• Brand: Securitron
• Manufacturer: Securitron by ASSA ABLOY
• Manufacturer Part Number: EL-EPT
• Product Name: Electromagnetic lock power supply
• Product Model: EL-EPT
• Type: Electrical power transfer
• Application/Usage: Door
• Housing Material: Steel
• Conduit Inside Diameter: 3/8 inch (9.5 mm)
• Hinge Compatibility: Butt hinges; continuous hinges; offset pivot hinges up to 3/4 inch (19.0 mm)
• Not Suitable For: Center pivot doors or pivot hinges with offset greater than 3/4 inch
• Includes: (2) flush tab bracket; (2) Phillips pan head 8-32 x 3/16 in; (2) split helical washer for #8 screw; (4) #6 x 5/8 in SMS screw; (6) 6-32 3/8 in Type "F" self tapping screw; bezel plate; flexible shield; lead cover
• Standards: ANSI/SDI-BHMA A250.13 (+/- 60PSF) Windstorm Listed; CAN4-S104; UL 10B; UL 10C; UL 634; UL/cUL AMQV.BP6799 / AMQV7.BP6799; UL/cUL GVUX.R21028 / GVUX7.R21028; ULC/ORD-C634
• Batteries Required: No
• Country of Origin: United States
• Package Quantity: 1
• Dimensions: 12.80 x 1.00 x 0.60 inches
• UPC Code: 784607034469
• ADI Part Number: SN-ELEPT
