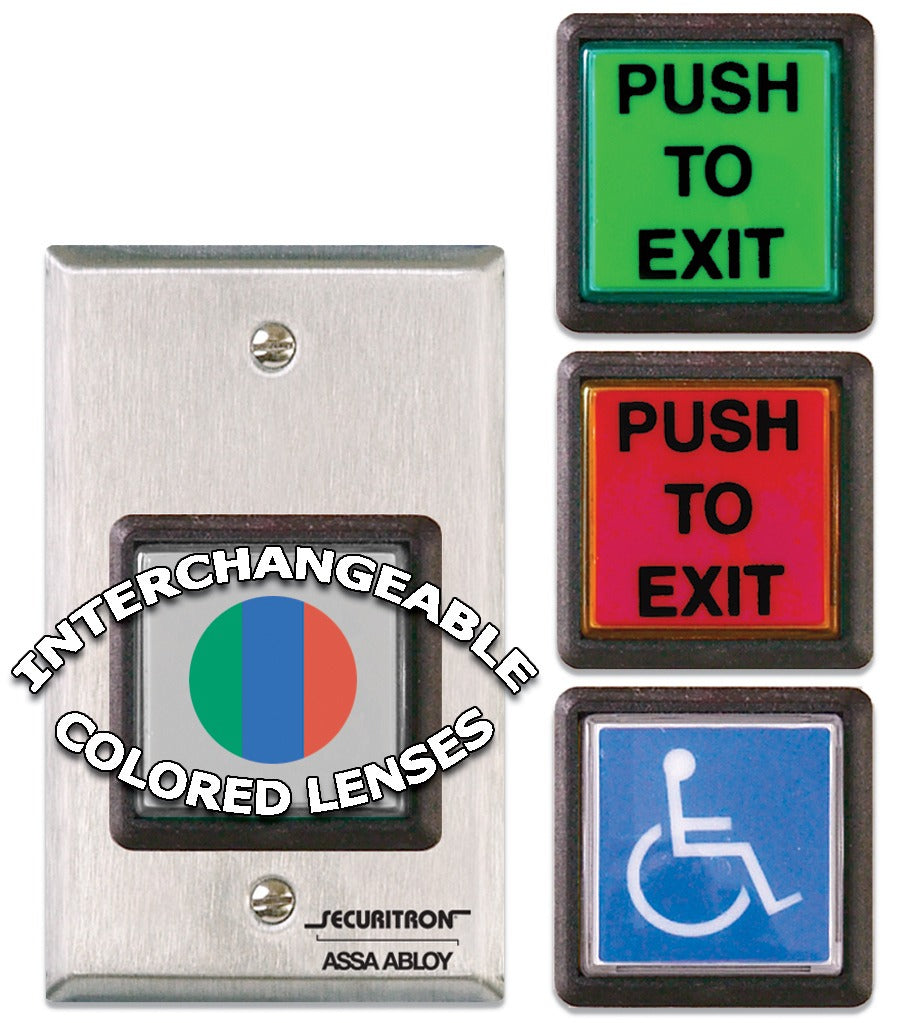

Securitron EEB2 Emergency Exit Button 30 Second Timer

Product Description

The SECURITRON EEB2 is an emergency exit button designed for access-controlled door applications where a timed egress release is required. The unit incorporates a built-in 30-second timer that holds the door release signal for the full timer duration after activation, allowing orderly egress without sustained manual contact. The EEB2 ships in a satin stainless steel finish and is available with green, red, or handicap-symbol faceplate legends. It is installed by licensed locksmiths, access control technicians, and low-voltage security integrators working on commercial or institutional door hardware systems.

The EEB2 is suited for interior egress points in commercial buildings, schools, healthcare facilities, and other occupancies where an electromagnetic lock or electric strike must be momentarily released for exit. The 30-second timer function makes it appropriate for applications where door-prop monitoring or delayed egress logic is integrated into the access control panel. The satin stainless steel finish is consistent with standard commercial hardware aesthetics and meets typical architectural specification requirements for exit hardware trim.

Key Features

• Built-in 30-second timer holds the egress output signal after button activation
• Satin stainless steel finish compatible with standard commercial door hardware trim
• Available faceplate legends: green, red, and handicap symbol
• Compact form factor sized for standard single-gang or proprietary surface-mount installation
• Designed for integration with electromagnetic locks, electric strikes, and access control panels

Compatibility

Designed as an OEM-style egress button for use with electromagnetic lock and electric strike systems in commercial access control applications. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation should be performed by a licensed low-voltage technician or access control integrator familiar with NFPA 101 life-safety egress requirements and local building codes. Disconnect power to the access control panel and any connected locking devices before wiring the EEB2. Verify that the timer output signal is compatible with the voltage and current ratings of the connected lock or control panel input. Do not bypass or defeat the timer circuit in applications where delayed egress compliance is required by the authority having jurisdiction.
