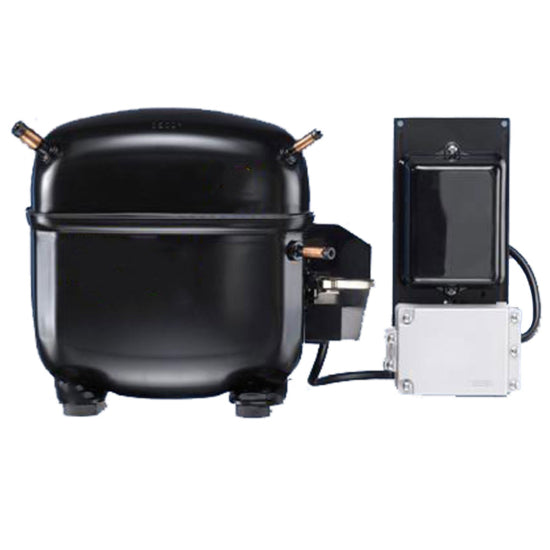

SECOP SCE18MNX-1 Compressor 115V R290

Product Description

The SECOP SCE18MNX-1 compressor is built for medium back pressure applications. It runs on a power supply of one hundred fifteen volts and utilizes R290 refrigerant. This compressor includes a CSIR motor and features copper connectors for discharge, process, and suction. The SECOP S-Series compressors offer a displacement of seventeen point sixty-eight cubic centimeters.

• Runs on 115-127V/60Hz power supply.
• Utilizes R290 refrigerant.
• Includes copper connectors for discharge, process, and suction.

Product Highlights

This compressor is ideal for those needing reliable cooling solutions in MBP applications.

Product Information

Standard Information

• Manufacturer: Secop
• MPN: SCE18MNX-1

Technical Specifications

• Type Designation: SCE18MNX
• Application: MBP
• Refrigerant: R290
• Power Supply: 115-127V/60Hz
• Input Voltage: 115V
• Hertz: 60
• Motor Type: CSIR
• Displacement: 17.68 cm³ | 1.08 cu.in.
• Oil Type: POE
• Oil Charge: 550 cm³ | 18.6 fl.oz.
• Weight: 14.2 kg | 31.3 lbs.
• Height: 219 mm | 8.62 in.
• Suction Connector Diameter: 9.63 mm | 0.38 in.
• Discharge Connector Diameter: 6.5 mm | 0.26 in.
• Process Connector Diameter: 6.5 mm | 0.26 in.
• Suction Material: Copper
• Discharge Material: Copper
• Process Material: Copper
• MBP Cooling Capacity: 1786 W | 6101 Btu/h
• MBP COP: 2.14 W/W | 7.3 Btu/Wh
• Motor Speed: 3500 rpm
