SEALMASTER SRF-19 2 Bolt Flg REPLACEMENT SRC-19

Product Description

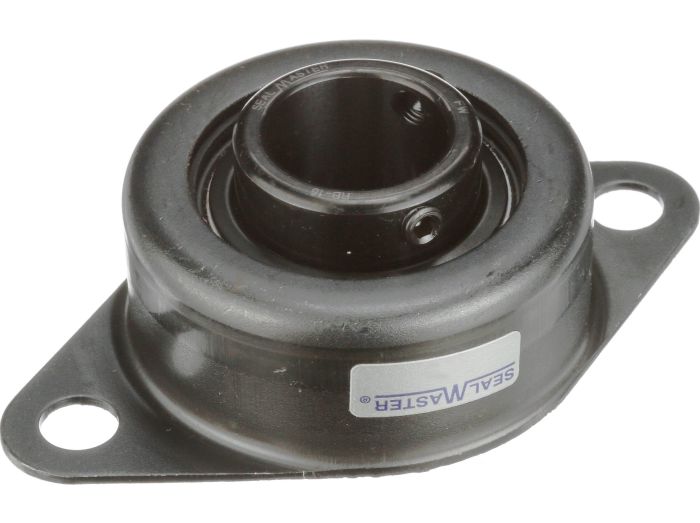

The SEALMASTER SRF-19 is a flange-mount ball bearing unit designed for durability and reliability. It features an epoxy powder-coated cast iron housing and comes with inner ring bearings for enhanced performance.

• Includes a zone-hardened inner ring with set screw locking
• Provides 360-degree grease circulation for optimal lubrication
• Designed for direct lubrication and anti-rotation

Product Highlights

The design supports standard duty applications, ensuring effective operation under various conditions.

Product Information

Standard Information

• Brand: SEALMASTER
• MPN: SRF-19

Technical Specifications

• Product Type: Sealmaster Gold - Standard
• Bore Diameter: 1.1875 inches
• Duty Type: Standard Duty
• Overall Length: 5.375 inches
• Housing Width: 3.5 inches
• Max Operating Temperature: 220 degrees Fahrenheit
• Locking Device: Set Screw
• Seal Type: Felt Labyrinth Seal
• Radial Dynamic Load Capacity: 4381 lbf
• Radial Static Load Capacity: 2567 lbf
• Operating Temperature Range: -20 to 220 degrees Fahrenheit
• Diameter: 1-3/16 inches
• Mounting Type: 2-Bolt Flange
