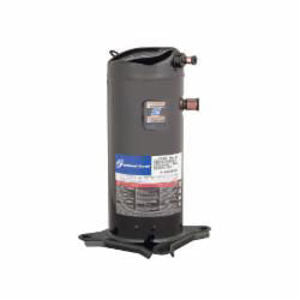

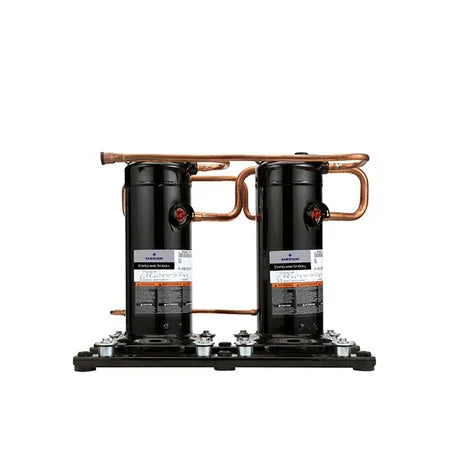

Copeland ZRT250KCE-TFD-950 Compressor 460/3/60 Compliant Scroll A/C 1-1/8 x 1-5/8

Product Description

Copeland presents the ZRT250KCE-TFD-950 compressor designed for air conditioning applications. This scroll compressor operates at a voltage of 460V with three phases and sixty Hertz. It has a cooling capacity of 237000 BTU per hour and is compatible with refrigerants R-22, R-134a, and R-407C.

• Cooling Capacity: 237000 BTU
• Sound Level: 83 dBA
• Mounting Dimensions: 19-3/4 inches by 10 inches by 23 inches

Product Highlights

The ZRT250KCE-TFD-950 is efficient for use in air conditioning systems, ensuring reliable cooling performance in various installations.

Product Information

Standard Information

• Manufacturer: Copeland
• Part Number: ZRT250KCE-TFD-950

Technical Specifications

• Cooling Capacity: 237000 BTU
• Voltage Rating: 460 V, 60 Hz, 3 Phase
• Power Rating: 20-53/64 hp
• EER Rating: 10.8
• Amperage Rating: 33.25 A
• Refrigerant Type: R-407C
• Suction Line Size: 1-5/8 inch Stub
• Discharge Line Size: 1-3/8 inch Stub
