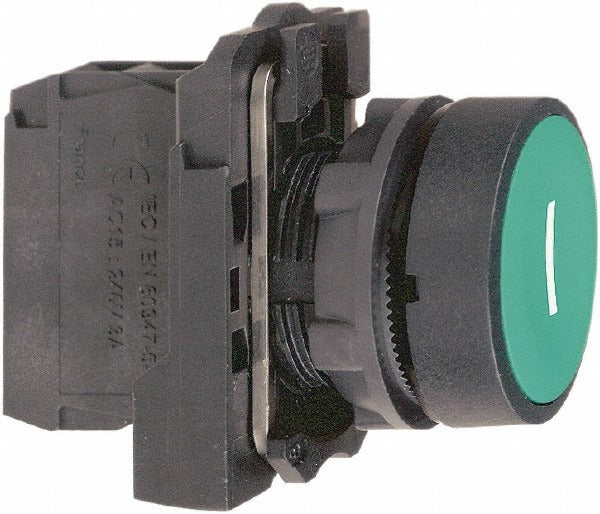

Schneider Electric XB5AA3311 Push-button Switch 22mm

Product Description

The SCHNEIDER ELECTRIC XB5AA3311 is a momentary-action push-button switch designed for industrial control panel applications. It features a flush-style, round green button with a normally open (NO) contact configuration and screw terminal connections. The 22 mm mounting hole diameter fits standard 22 mm cutout panels. Rated to NEMA 4X and NEMA 13, this switch is built for environments where moisture resistance and dust ingress protection are required. Licensed electricians and control panel technicians are the primary installers. The plastic button body and screw terminals make field wiring straightforward during panel assembly or retrofit work.

This push-button switch is suited for use in industrial and commercial control panels where a momentary-contact, normally open input is needed. Typical applications include machine start circuits, motor control centers, and operator interface stations. The green button color follows conventional color-coding for start or run functions in control circuits. It fits any panel or enclosure with a standard 22 mm round mounting cutout.

Key Features

• Momentary (MO) action with normally open (NO) contact configuration
• Flush-style round green plastic push button
• 22 mm mounting hole diameter fits standard industrial panel cutouts
• Screw terminal wiring for reliable, tool-accessible connections
• NEMA 4X and NEMA 13 rated for wet and dusty environments
• Meets CSA, UL 508, EN/IEC 60947, and JIS C 4520 standards

Compatibility

Designed as an OEM-style replacement or new-install push-button switch for industrial control panels with standard 22 mm round mounting cutouts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and applicable local codes. De-energize and lock out the control panel before mounting or wiring this switch. Screw terminals should be tightened to the terminal manufacturer specification using an appropriate flat-blade screwdriver. Verify contact configuration and circuit logic before returning the panel to service.
