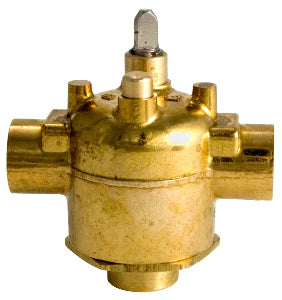

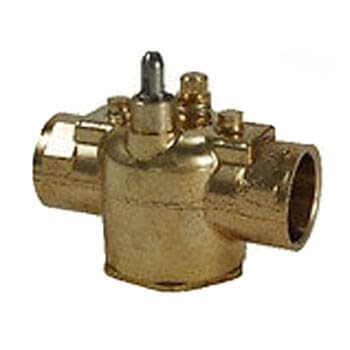

Schneider Electric (Erie) VM3517 1 1/4SW 3W 8CV Modulating Valve

Product Description

The Schneider Electric (Erie) VM3517 is a 1 1/4 SW 3-Way Modulating Valve with a flow capacity of 8CV. This valve is designed for industrial settings where fluid control is essential. The robust brass body construction earns it a reputation for durability and corrosion resistance. It supports a pressure range of twenty-five to one hundred twenty-five PSI and a temperature range of thirty-three to one hundred forty degrees Fahrenheit.

• Body Pattern: 3-Way
• Connection Type: Sweat
• Flow Capacity (Cv): 8

Product Highlights

This valve provides precise control over fluid flow in challenging environments, making it suitable for various applications in heating and cooling systems.

Product Information

Standard Information

• Brand: Schneider Electric (Erie)
• Item Number: VM3517

Technical Specifications

• Body Material: Brass
• Pressure Rating: 300 psig
• Flow Coefficient (Cv): 8
• Min Temperature: 33 °F
• Max Temperature: 140 °F
• Min Pressure: 25 PSI
• Max Pressure: 125 PSI
• Connection Type: Sweat
