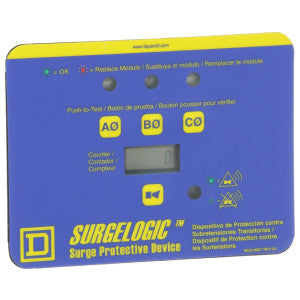

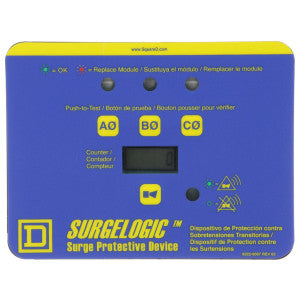

Schneider Electric TVS3DSPHCN Surge Protective Device Diagnostic Display

Product Description

The Schneider Electric TVS3DSPHCN is a diagnostic display unit for surge protective devices designed to monitor alarm status in three-phase systems. This device is suitable for use in panelboards, switchboards, PZ4 switchgear, and busways. It connects via RJ45 patch cables and adheres to the European RoHS directive.

• Provides alarm status for surge protective devices.
• Compatible with three-phase, four-wire systems.
• Utilizes RJ45 connections for installation.

Product Highlights

This display unit ensures that users can monitor the status of surge protection systems effectively.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: TVS3DSPHCN

Technical Specifications

• Range of Product: Surgelogic
• Phase: Three-phase
• Rated Operational Voltage: One hundred twenty over two hundred forty V AC, two hundred eight Y over one hundred twenty V AC, four hundred eighty Y over two hundred seventy-seven V AC, six hundred Y over three hundred forty-seven V AC
• Max. Surge Current: One hundred twenty kA, one hundred sixty kA, two hundred forty kA

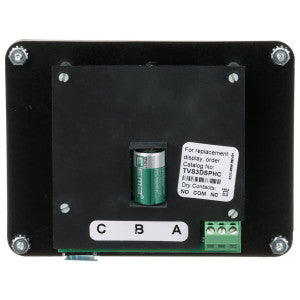

• Connections - Terminals: RJ45 connector bottom
• EU RoHS Directive: Compliant
• Mercury Free: Yes
• Toxic Heavy Metal Free: Yes
• Warranty: Eighteen months
