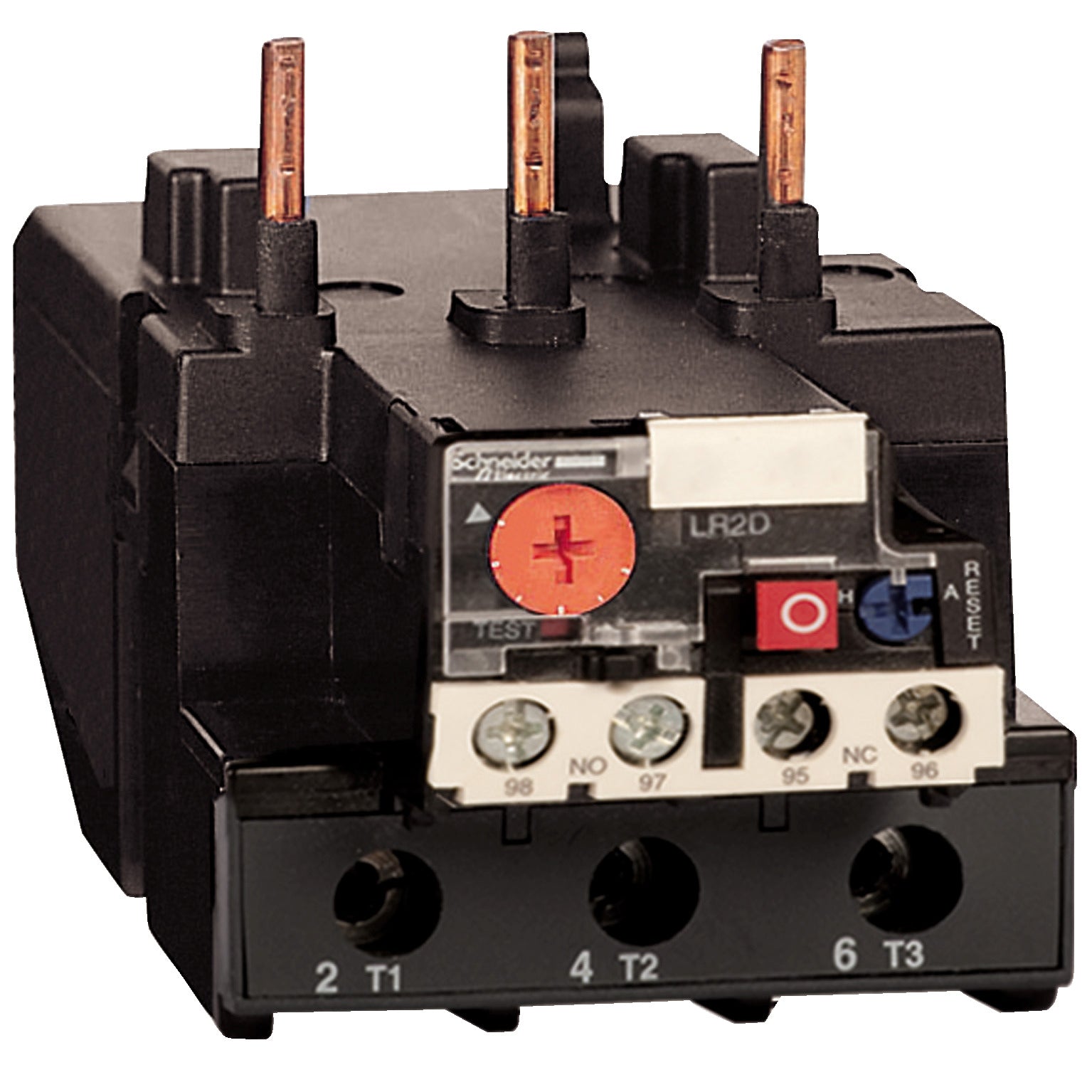

Schneider Electric LR2D3555 Thermal Overload Relay 600 Volt 40 Amp 3-Pole

Product Description

The Schneider Electric LR2D3555 TeSys Deca Thermal Overload Relay is engineered for optimal motor protection. Suitable for direct mounting on TeSys D contactors, it features a 30-40A thermal setting range and a tripping class of 20, safeguarding motors up to 18.5kW@400V.

• Phase unbalance detection and protection
• Equipped with manual test and reset buttons, automatic reset
• RoHS/Reach Green Premium compliance

Product Highlights

This overload relay incorporates advanced features such as trip auxiliary contacts, a flag indicator for trip signaling, and bimetallic temperature compensation for accurate protection. It's designed to be light and compact, enhancing installation ease and flexibility.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: LR2D3555

Technical Specifications

• Current Range: 30 to 40A
• Trip Class: 20
• Mounting Type: Direct on TeSys D contactors or separate mounting with additional accessories
• Certifications: IEC, UL, CSA, CCC, EAC, Marine
• Connection: Screw clamp terminals
• Protection: Phase unbalance, thermal overload
