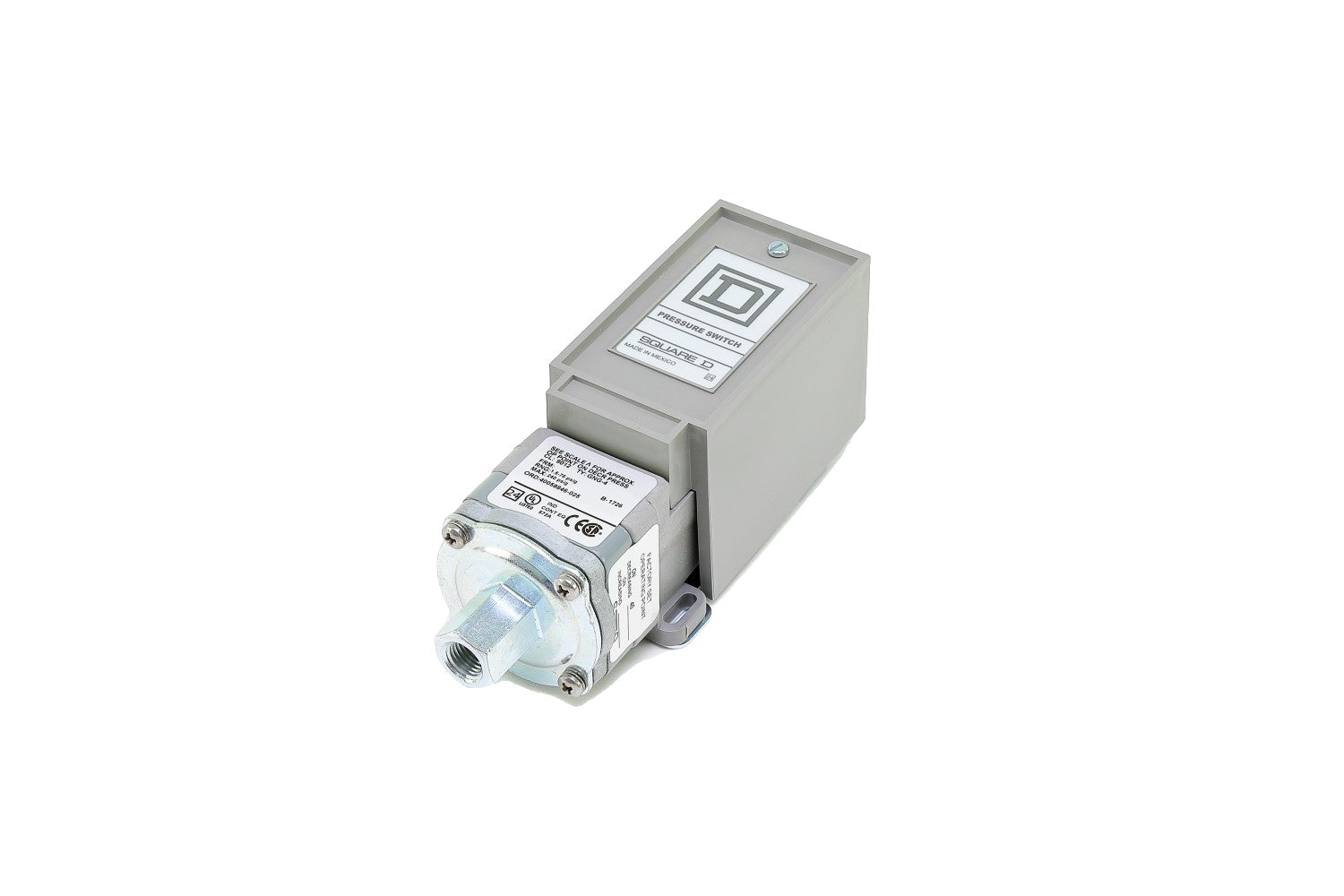

Schneider Electric 9012GNG4 Pressure Switch 480V 1-Port (SIZE) Replacement 9012GNG4

Product Description

The Schneider Electric model 9012GNG4 is a robust pressure switch designed primarily for industrial applications requiring monitoring and regulation of air and fluid pressures. Exceptionally constructed for durability, it's suitable for systems like HVAC, compressed air setups, and fluid mechanics within a range of 1.5 to 75 psi.

• High resilience against mechanical shocks, ensuring reliable operation under physical stress.
• Features an adjustable differential range from 2.2 to 6.6 psi for precise control.
• Comes with SPDT contact form and 1/4-18 inch FNPT port type for versatile connectivity.

Technical Specifications

• Actuation Type: Diaphragm
• Temperature Range: Operational between -10 to 185 degrees Fahrenheit ambient and -40 to 250 degrees Fahrenheit media temperatures.
• Electrical Ratings: AC contact rating of 10A at 480V.
• Construction: The switch features a sturdy thermoplastic housing.
• Certifications: Compliant with UL 508, CE, and CSA C22.2 No 14.
