Schneider Electric M220M02 Actuator Power 110-277 VAC Replacement MPN

Product Description

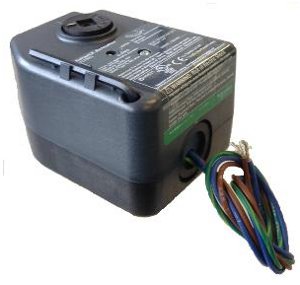

The Schneider Electric M220M02 is an electric actuator designed for controlling ball valves. It operates on a power supply of 110 to 277 VAC and features a spring return mechanism for reliable performance.

• Two-position control for straightforward operation
• Robust NEMA 2 protection for added durability
• Compatible with SmartX actuator technology

Product Highlights

This actuator is ideal for HVAC applications requiring automation and efficient control of fluid flow. It ensures optimum operation under various conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Actuator Type: Electric
• Control Signal: 2-Position (On/Off)
• Power Input Voltage: 110 to 277 VAC
• NEMA Protection Rating: NEMA 2
• Mechanical Movement: Rotary
• Operating Temperature: 0 to 76.1 °C
• Relative Humidity: 5-95 % non-condensing
• Motor Type: Split capacitor synchronous motor
• Power Consumption: 6 VA AC
