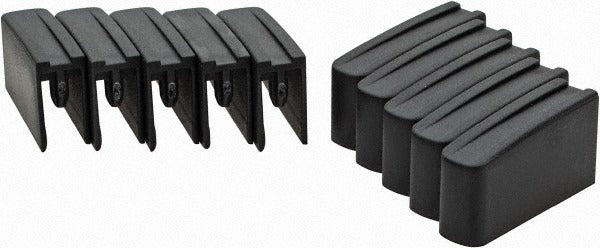

Schneider Electric A9XPE110 Circuit Breaker End Cap

Product Description

The Schneider Electric A9XPE110 is a circuit breaker end cap designed for use with C60 comb busbars in electrical distribution systems. This accessory provides a finished, insulated termination point at the end of a comb busbar assembly, helping to protect exposed conductors and maintain system integrity. Measuring 3 inches in length, 2 inches in width, and 0.2 inches in height, it is a compact, lightweight component weighing 0.01 pounds. Electricians and panel technicians install this end cap as part of a complete busbar assembly during panel builds or service upgrades.

This end cap is suited for residential and light commercial electrical distribution panels where C60 comb busbars are used to connect multiple circuit breakers to a common distribution point. It is typically installed at the terminal end of the busbar to cap off the assembly and prevent accidental contact with live conductors. This part ships in a package quantity of one and is intended as a direct accessory component in new installations or replacement work involving C60 busbar systems.

Key Features

• Designed specifically for use with C60 comb busbars
• Provides insulated termination at the open end of a busbar assembly
• Compact form factor: 3 inches x 2 inches x 0.2 inches
• Lightweight at 0.01 pounds for easy handling during panel assembly
• Sold individually for single-point replacement or new installation use

Compatibility

Designed for use with Schneider Electric C60 comb busbars as a termination accessory in compatible electrical distribution panel assemblies.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the panel and verify the absence of voltage before handling any busbar components or installing this end cap. The end cap should be firmly seated at the terminal end of the comb busbar before restoring power to the panel. Do not modify or trim the end cap, as doing so may compromise its insulating properties.
