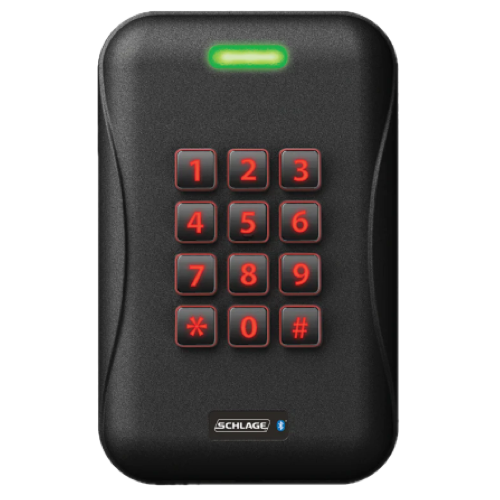

Schlage Electronic Security MTKB15-BLK-C1 Mobile Enabled Multi-Technology Wall Reader with Keypad

Product Description

The Schlage Electronic Security MTKB15-BLK-C1 mobile-ready MTB reader provides essential capabilities for modern access control solutions. This unit is designed to support Bluetooth, NFC, keypad, and proximity technologies, ensuring compatibility with a variety of secure credentials.

• Supports multiple credential technologies including mobile access.
• Enables Schlage Mobile Access through 2.4 GHz Bluetooth technology.
• Features voltage range of five to twenty-eight volts for effective power management.

Product Highlights

This reader allows for flexible access control through various authentication methods and is ready to integrate with existing security systems.

Product Information

Standard Information

• Brand: Schlage Electronic Security
• MPN: MTKB15-BLK-C1

Technical Specifications

• Physical dimensions (HxWxD): 5.1 inches x 3.25 inches x 0.76 inches
• Frequency: 2.4 GHz, 13.56 MHz, and 125 kHz
• System interface: Wiegand / Clock & Data / OSDP / Optional RS-485 capability
• Standards: ISO 14443A, ISO 15693
• Power: 5-28 VDC
• Wiring: 22 AWG, 12 conductor, 12 inches length
• Operating temperatures: -31 to 151°F (-35 to 67°C)
• LED: Red, green, or amber visual indicator and audio feedback
• Material: PBT Polymer
