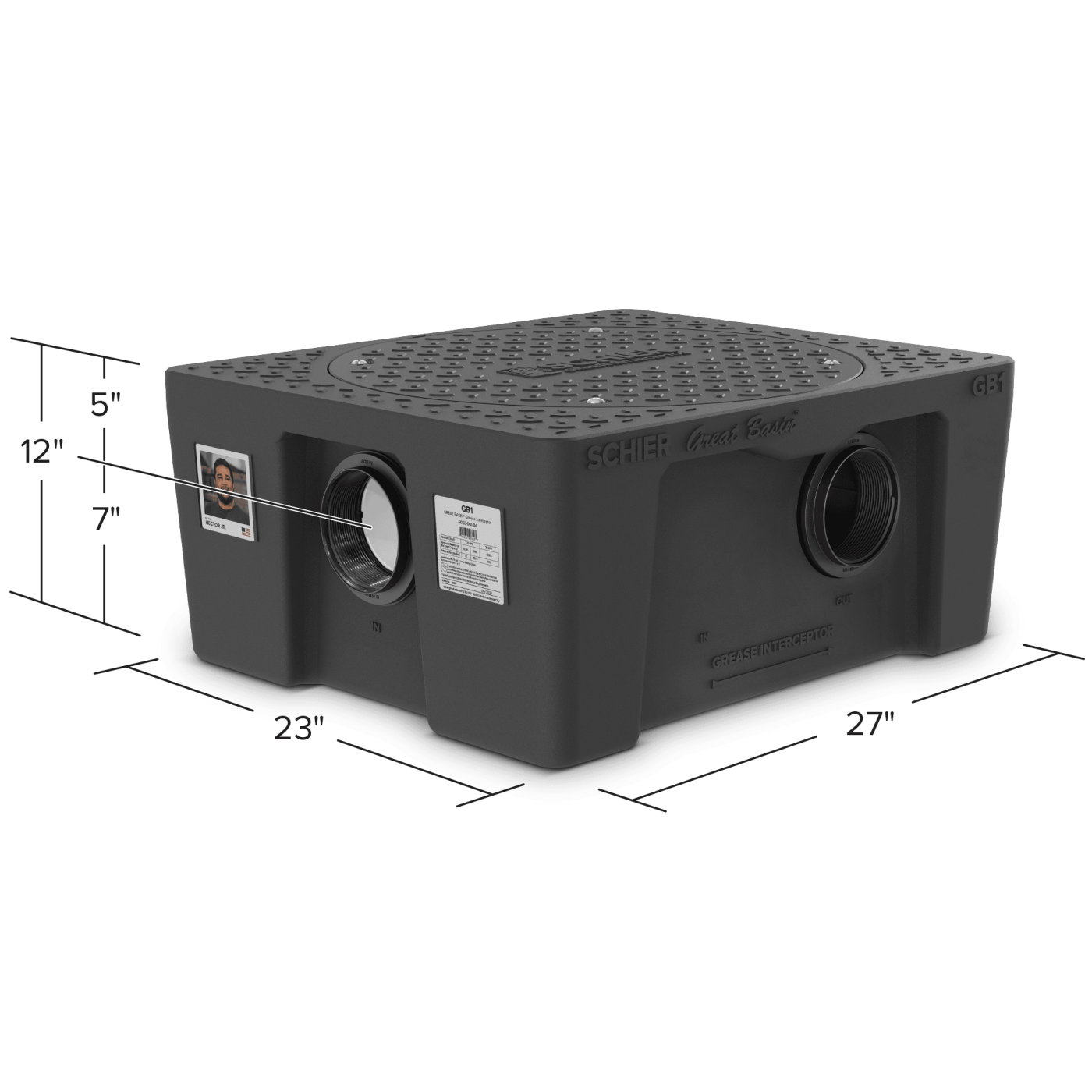

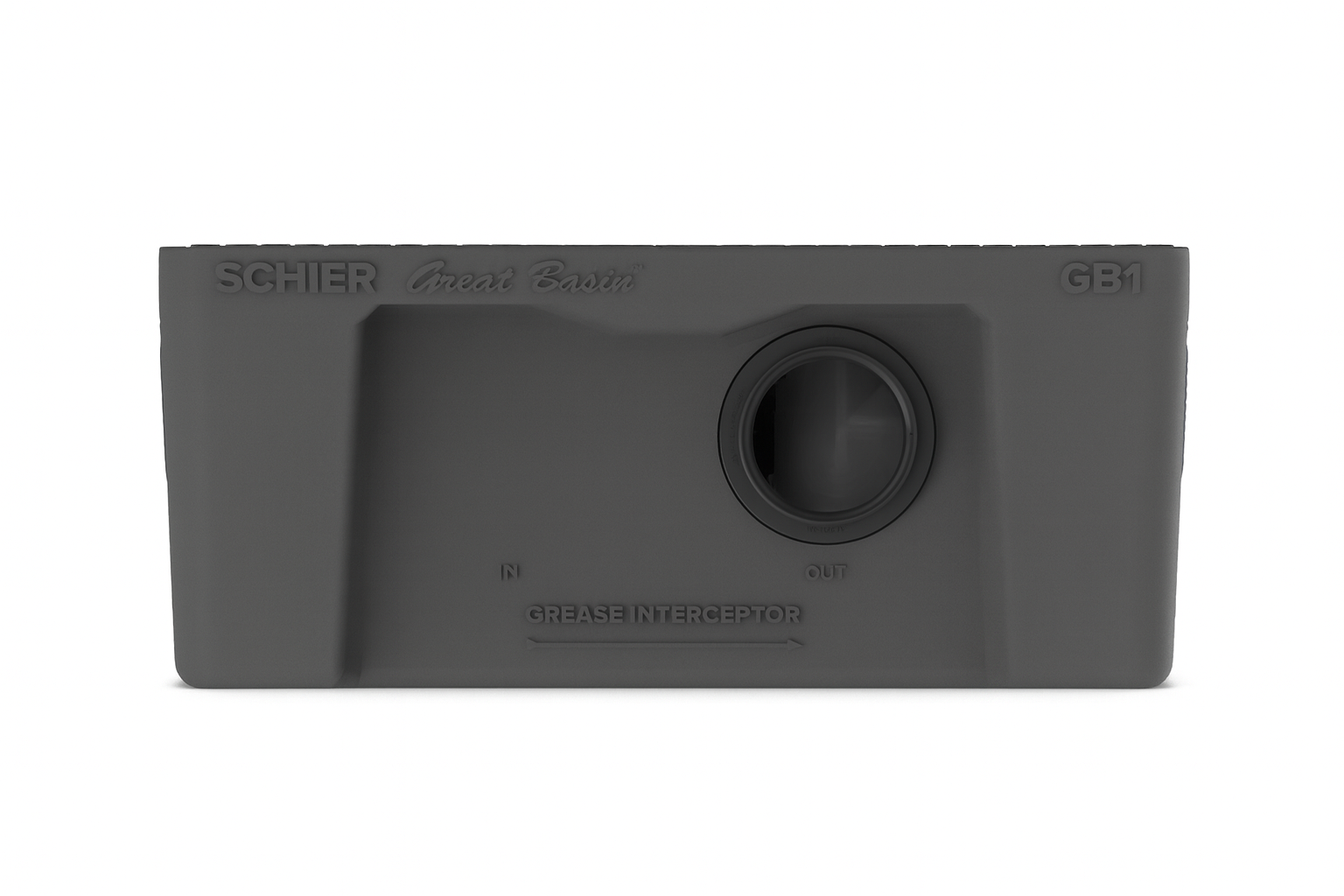

Schier GB1 Great Basin Grease Interceptor 20/25 gpm

Product Description

The SCHIER GB1 Great Basin Grease Interceptor is designed for indoor use with a flow rate of 20 or 25 gpm. Constructed from polyethylene, this grease interceptor features built-in flow control and allows full access to the tank for maintenance. It is ready to connect to 2-, 3- or 4-in. pipe.

• Built-in flow control
• For gravity drainage applications only
• Cover placement allows full access to tank for proper maintenance

Product Highlights

This grease interceptor is suitable for indoor, on-floor, buried, low-profile under-sink gravity drainage applications and is ASME A112.14.3, CSA B481.1, IAMPO, UPC listed.

Product Information

Standard Information

• Brand: SCHIER
• Manufacturer Part Number: GB1
• Country of Origin: USA

Technical Specifications

• Connection Size: 2 x 3 in
• Connection Type: FPT
• Flow Rate: 20/25 gpm
• Height: 12 in
• Item Name: Grease Interceptor
• Length: 27 in
• Material: Polyethylene
• Sub Brand: Great Basin
• Width: 23 in
• Model Number: GB1
• Catalog Number: GB1
• MPN: GB1
• Brand: SCHIER
• ManufacturerName: SCHIER PRODUCTS
• SellUom: Each
• Solids Capacity: 1.3 gal
• Liquid Capacity: 10 gal
• Installation Location: Indoor
• Max Flow Rate: 20/25 GPM
• Installation Type: Indoor
• Gallons: 10 Gallons
• Height (Inches): 12"
• Length (Inches): 27''
• Width (Inches): 23"
