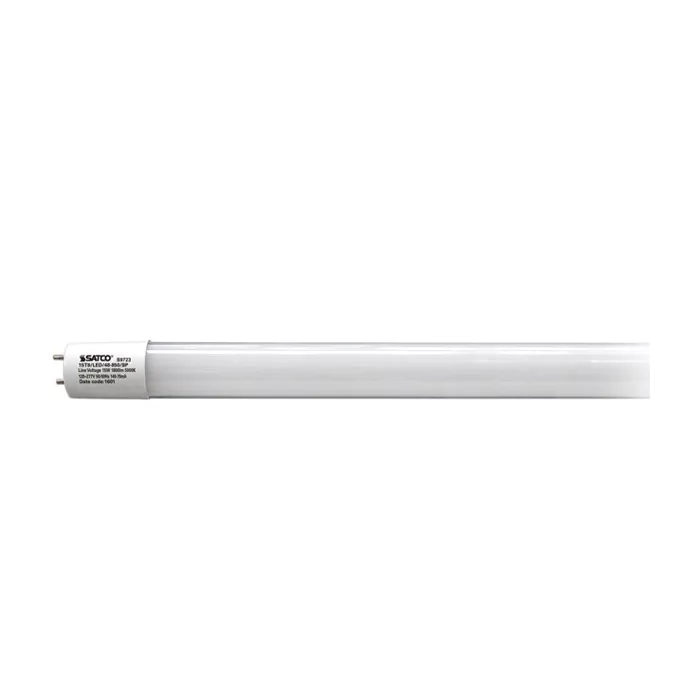

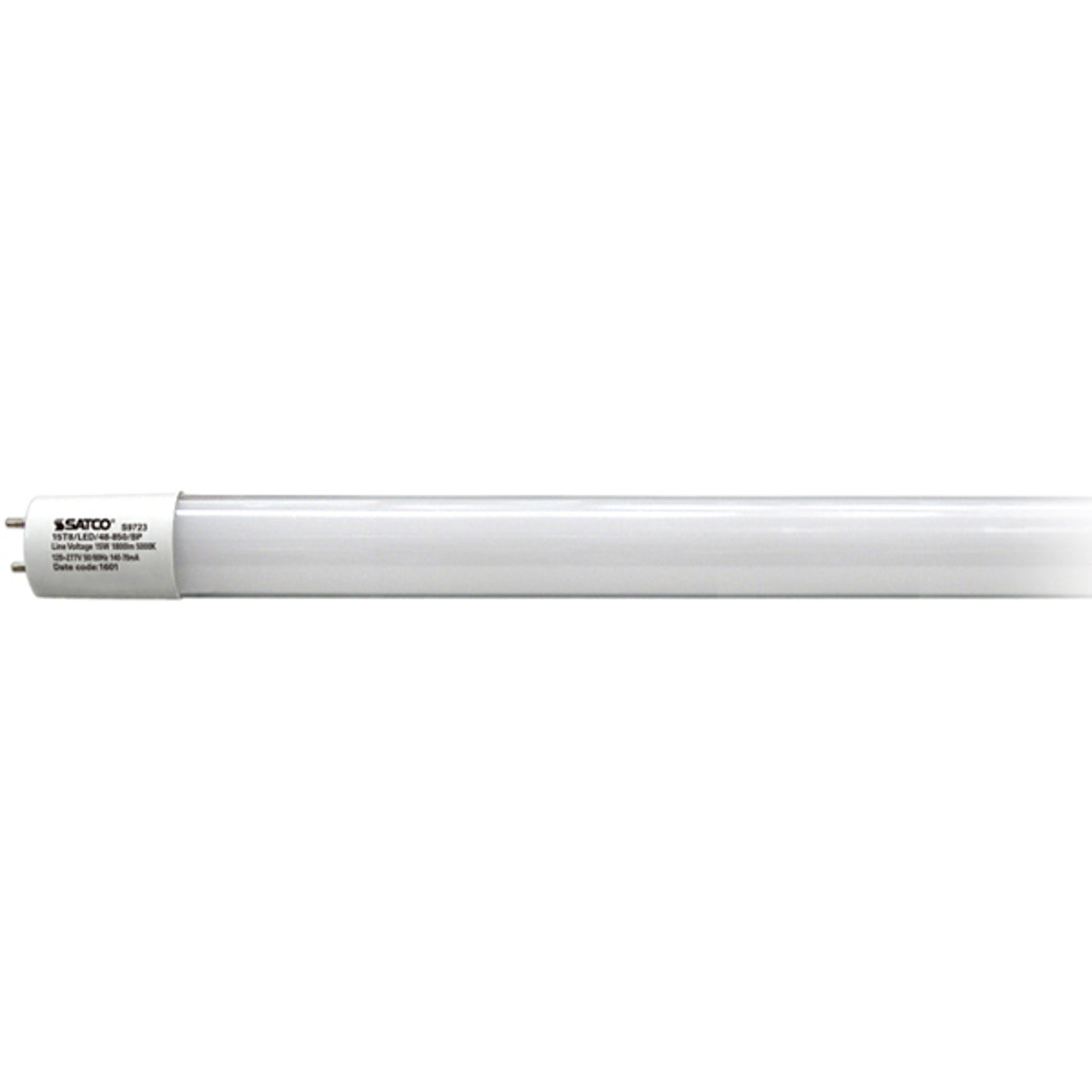

Satco S9723 T8 LED 15W 4 Foot

Product Description

The Satco S9723 is a 15W T8 LED featuring a medium bi-pin base, 5000K color temperature, and an average rated life of 50000 hours. This Type B ballast bypass LED tube emits 1800 lumens and requires single-ended wiring. It is designed for indoor use and operates at 120V.

• Ballast Bypass
• 50000 Average rated hours
• Single Ended Wiring

Product Highlights

This 15W T8 LED tube offers a long-lasting, energy-efficient lighting solution for various indoor applications. It provides a natural light with a color rendering index of 82.

Product Information

Standard Information

• Brand: Satco
• Manufacturer Part Number: S9723
• Country of Origin: China

Technical Specifications

• Base: Medium Bi Pin
• Type: Linear
• Brand: Satco
• Finish: White
• Length: 4 Foot
• Lumens: 1800L
• Voltage: 120 Volt
• Wattage: 15 Watt
• Amperage: 0.125-0.054 Amp
• Material: Glass
• Dimmable?: No
• Bulb Shape: T8
• Lens Color: Gloss,White
• Beam Spread: 230
• Product UPC: 04592309723
• 12-Digit UPC: 045923097232
• Power Factor: 0.9
• Wet Location: Damp
• Housing Color: White
• Lens Material: Glass
• Color Accuracy: 82
• Indoor Outdoor: Indoor
• Technology Type: LED
• Color Temperature: Natural Light
• Average Rated Life: 50000 hr
• Operating Frequency: 50 Hz
• Color Rendering Index: 82
• Correlated Color Temp: 5000 K
• Operating Temperature: -20 degrees C
• Catalog Number: S9723
• Manufacturer: Satco
• Country of Origin: China
• Made in USA: No
• GTIN: 00045923097232
• Item Type: LED T8
• Size: 48
• Watts: 15 W
• Lamp Ballast Type: Type B
• Ballasting Requirements: Ballast Bypass
• Lamp Filament: LED
• Fixture Type: Linear
• CCT Selectable: False
• Wattage Selectable: False
• Finish Family: White
• Amps: 0.125-0.054A
• Has Camera: False
• IOT Enabled: False
• Lensed: True
• Nominal Length: 48.0
• Operating Position: Universal
• SDS Class: LED_Lamp
• Product Technology: LED
• Fluor Equiv: 25W-32W
• Incandescent Equivalent: 100W
• CCT (Kelvin Temp): 5000K
• Hours Rated: 50000
• Beam Angle (degree): 230
• CRI: 80+
• Operating Temp: -20C (-4F) to +45C (+113F)
• Volts: 120V-277V
• Lamp Base: Medium Bi Pin
• ANSI Base: G13
• MOD Lamps: 1.0
• MOL: 48.0
• Rated For Enclosed Fixture: True
• Mfg #: S9723
• Order Code: 15T8/LED/48-850/BP
• Input Volts: 120-277V
• Lumens/Watt: 120
• Retrofit Type: Direct Wire (Type B)
• Life (hrs): 50000
• Length (in.): 48
• Volts AC Range: 120 - 277
