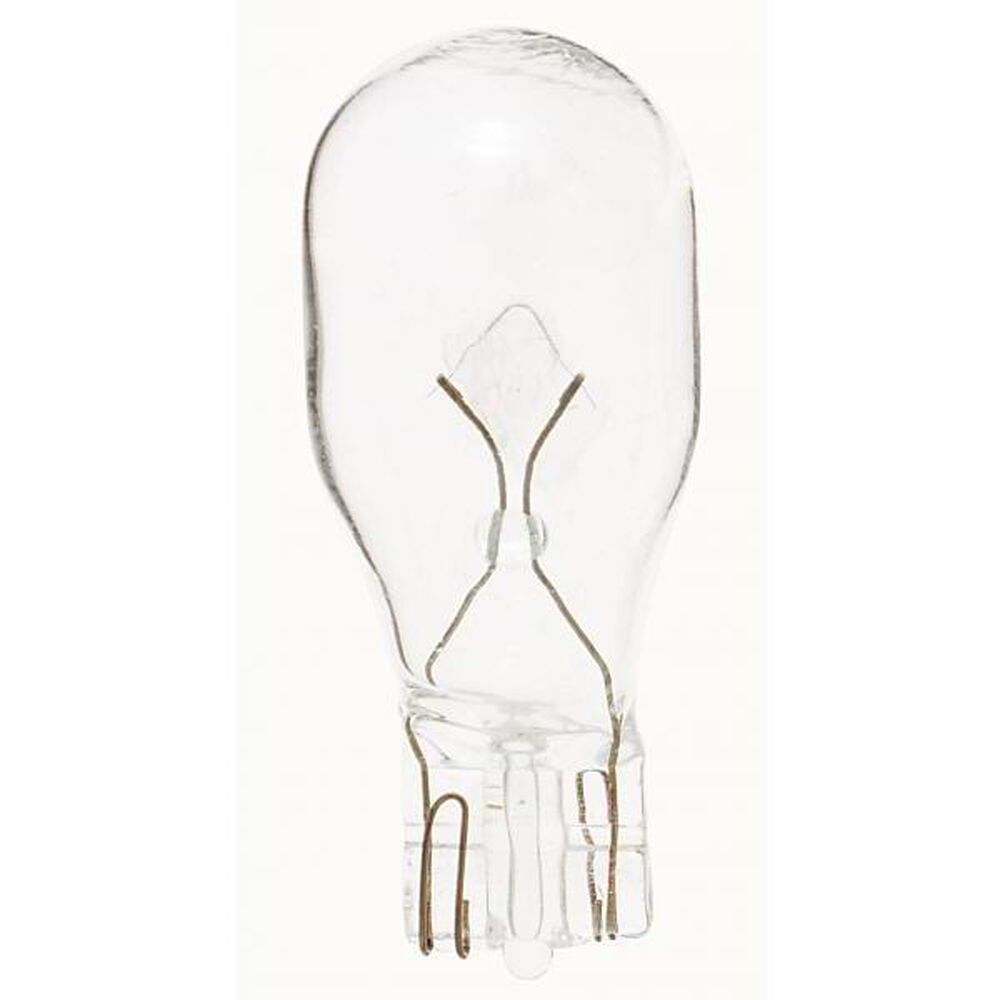

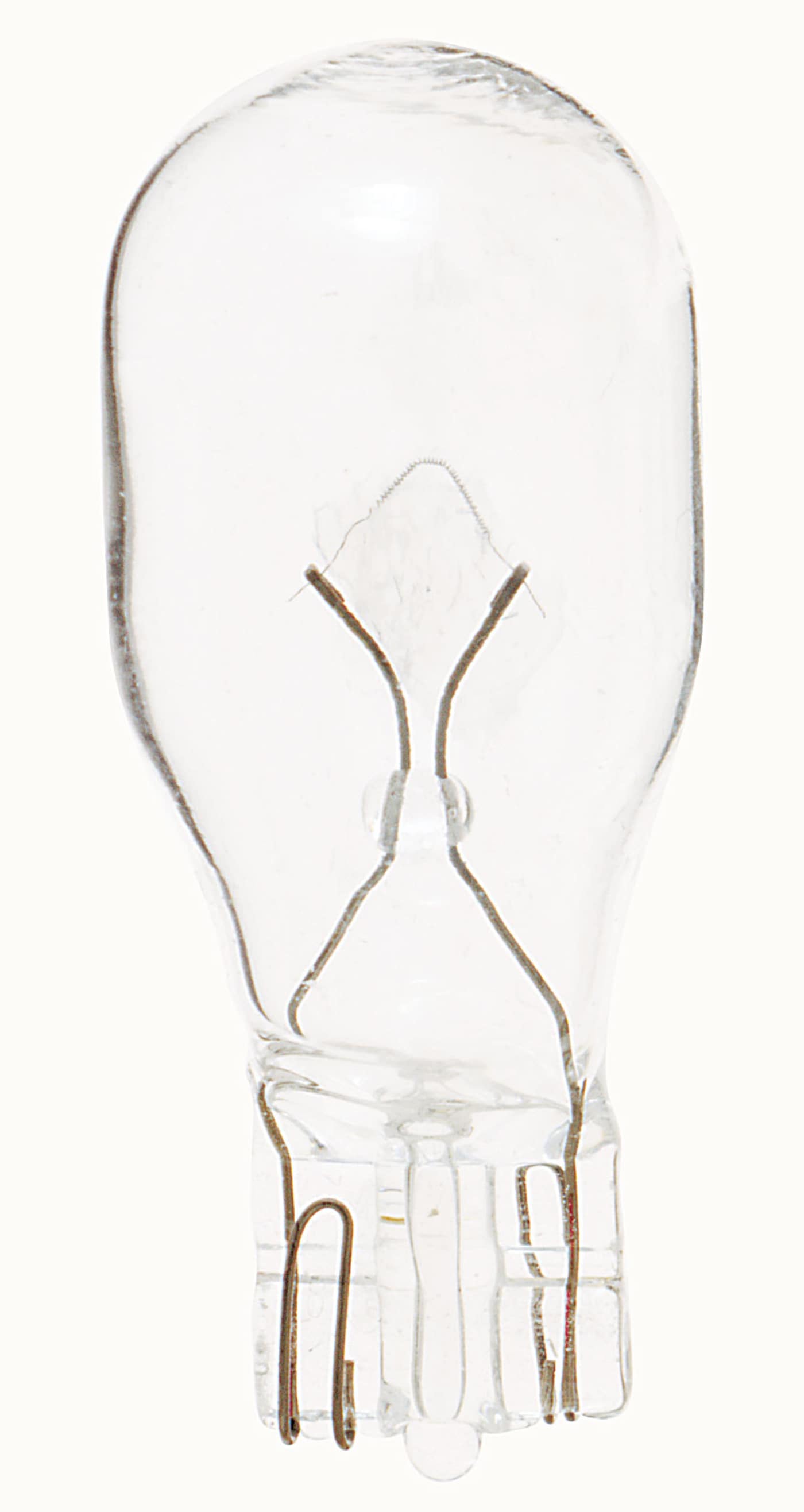

Satco S6941 miniature T5 9 watt 6 volt

Product Description

The SATCO S6941 is a 9 Watt miniature T5 incandescent lamp with a mini wedge base and a 6 Volt rating. This lamp provides a clear light and has an average rated life of 50 hours. It is suitable for various applications requiring a compact and low-voltage light source.

• 9 Watt power consumption
• Mini Wedge base for easy installation
• 50 hours average rated life

Product Highlights

Miniature T5 incandescent lamp with mini wedge base, ideal for low-voltage applications.

Product Information

Standard Information

• Brand: SATCO
• Manufacturer Part Number: S6941

Technical Specifications

• Base: Mini Wedge
• Type: Miniature
• Voltage: 6 Volt
• Wattage: 9 Watt
• Amperage: 1.5 Amp
• Dimmable?: No
• Bulb Shape: T5
• Lens Color: Clear
• Beam Spread: 360
• Housing Color: None
• Technology Type: Incandescent
• Average Rated Life: 50 hr
• Length: 1-1/2 Inch
• Diameter: 0.63 Inch
• Finish: Clear
• Lamp Filament: C-2R
• Fixture Type: Miniature
• CCT Selectable: No
• Wattage Selectable: No
• Finish Family: No Finish
• Lensed: Yes
• Operating Position: Universal
• SDS Class: Incandescent_Lamp
• Product Technology: Incandescent
• Hours Rated: 50
• Beam Angle (degree): 360
• Watts: 9W
• Lamp Base: Mini Wedge
• ANSI Base: W2.1x9.5d
• Lamp Type: T5
• MOD Lamps: 0.63
• MOL: 1.5
• Brand Category: Light Bulb
• Brand Product Description: 908 6V 9W W2.1X9.5D T5 C2R
• Lamping Category: Incandescent
• Lamping Included: Bulbs Not Included
• Primary Number of Bulbs: 1
• Total Number of Bulbs: 1
• Wattage Max: 9.00
• RoHS Compliant: Yes
