Product Description
The SATCO S23147 LED HID replacement lamp offers CCT and wattage selectable capabilities, providing versatile and tailored lighting. Designed for high ceilings, this lamp delivers clean, efficient 360-degree LED light, making it suitable for gymnasiums, factory floors, health clubs, and warehouses. It provides up to 80% energy savings and superior light output for various industrial and commercial applications.
- Up to 80% energy savings for reduced operational costs.
- CCT and wattage selectable for versatile and custom-tailored lighting.
- Delivers 360-degree LED light, ideal for high-ceiling applications.
Product Highlights
Versatile Hi-Pro LED lamp with selectable CCT and wattage, offering significant energy savings and superior 360-degree illumination for high-ceiling environments.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: S23147
-
Country of Origin: China
Technical Specifications
-
Application Type: Industrial
-
Wattage: 22/18/16W
-
Input Voltage: 100-277V
-
Dimmable: Yes
-
Bulb Type: Corncob
-
Certifications: cULus listed, cULus classified, FCC Compliant, RoHS Compliant, UL Listed, IP64
-
Bulb Shape: Type B
-
Bulb Finish: White
-
Base Type: E26 (Medium)
-
Housing Material: Aluminum and Plastic
-
Light Technology: LED
-
Incandescent Equivalent: 100W
-
Location Rating: Indoor and Outdoor
-
Operating Temperature Range: -30C to +45C (-22F to +113F)
-
Ballasting Requirements: Ballast Bypass
-
Surge Protection: 4KV
-
CCT Selectable: Yes
-
Wattage Selectable: Yes
-
Current: 0.220-0.079/0.180-0.065/0.160-0.058A
-
Lens Material: Plastic
-
Operating Position: Universal
-
Power Factor: >0.9
-
Color Temperature: 3000K/4000K/5000K
-
Rated Life Hours: 50000 hours
-
Beam Angle: 300 degrees
-
CRI: 80+
-

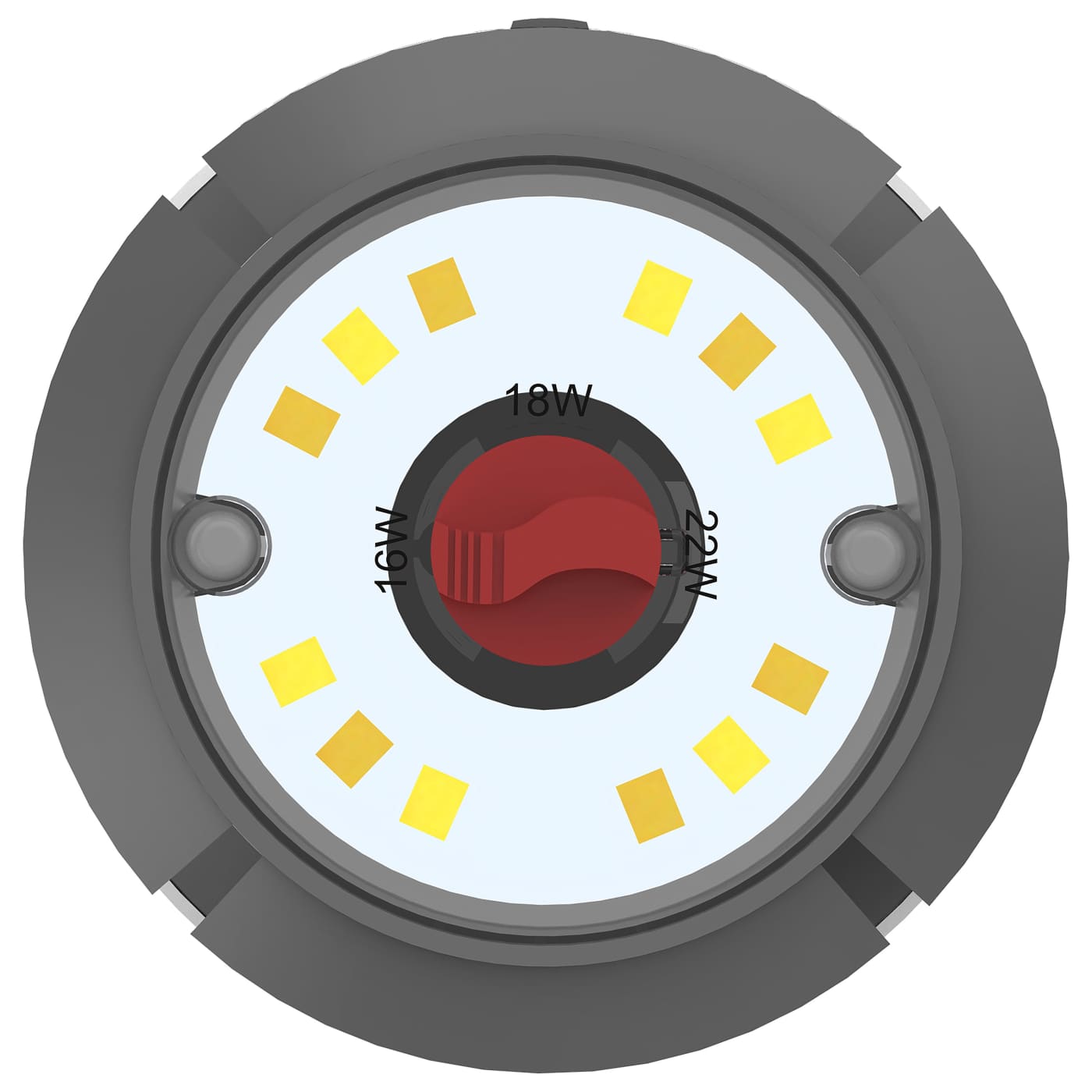

Dimming Type: Step Dimming (via wattage selection switch on lamp)
-
Operating Frequency: 50/60Hz
-
HID Equivalent: 100W/75W/50W
-
Lumens: 3080/2520/2240
-
Housing Color: Dark Gray
-
Rated For Enclosed Fixtures: Yes
-
Bulb Shape Size: ED28
-
Efficacy: 139.91 lm/W
-
Model Name: Hi-Pro
-
Lens Finish: Clear
-
Driver Type: Internal
