Product Description
The SATCO S13185 is a 24 Watt LED HID replacement with an ED23.5 lamp type, a medium base, and a white finish. This lamp operates within a 120-277 range voltage and features ballast bypass. It provides natural light with a 5000K color temperature and has built-in surge protection of 4KV. Ideal for upgrading dated HID lamps in streetlights, warehouses, and retail spaces.
- 24 Watt LED HID Replacement
- Ballast Bypass
- Built-in surge protection - 4KV
Product Highlights
Energy-efficient LED replacement for HID lamps, offering long-lasting performance and excellent efficacy in various applications.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: S13185
Technical Specifications
-
Company: SATCO
-
Lamp Ballast Type: Type B
-
Ballasting Requirements: Ballast Bypass
-
Lamp Filament: LED
-
Material: Glass
-
Fixture Type: LED HID
-
Status: Active
-
Style: Utility
-
Surge Protection: 4kV
-
CCT Selectable: False
-
Wattage Selectable: False
-
Finish Family: White
-
Amps: 0.200-0.090A
-
Operating Position: Universal
-
Power Factor: 0.9
-
Indoor Outdoor: Indoor, Outdoor
-
Product Technology: LED
-
Color Temperature (CCT): 5000 Kelvin
-
Dimmable: Non-Dimmable
-
Hours Rated: 50000
-
Beam Angle (degree): 320
-
Color Temp: Natural Light
-
CRI: 80+
-
Operating Frequency: 60Hz
-
Operating Temperature: -30C (-22F) to +65C (+149F)
-
HID Equivalent: 100W
-
Lumens: 4000L
-
Input Voltage: 120V-277V
-
Watts: 24W
-
Lamp Base: Medium
-
Finish: White
-
Housing Color: White
-
ANSI Base: E26
-
Lamp Type: ED23.5
-
MOD Lamps: 2.95
-
MOL: 7.6
-
Rated For Enclosed Fixture: True
-
Brand / Product Series: SATCO
-
MPN: S13185
-
Model: 24W/LED/HID/ED23.5/850/E26/WH
-
Metal Halide Equivalent: 100 Watt
-
Lamp Shape: ED23.5
-
Base Code: E26
-
Base Type: Medium
-
Efficacy: 166 lumens / Watt
-
Life Rating: 50,000 Hours
-
Operation Type: Type B (Bypass)
-
Voltage: 120/208/240/277
-
Frequency: 50/60 Hz
-
THD: N/A
-
IP Rating: IP65
-
Location Rating: Wet
-

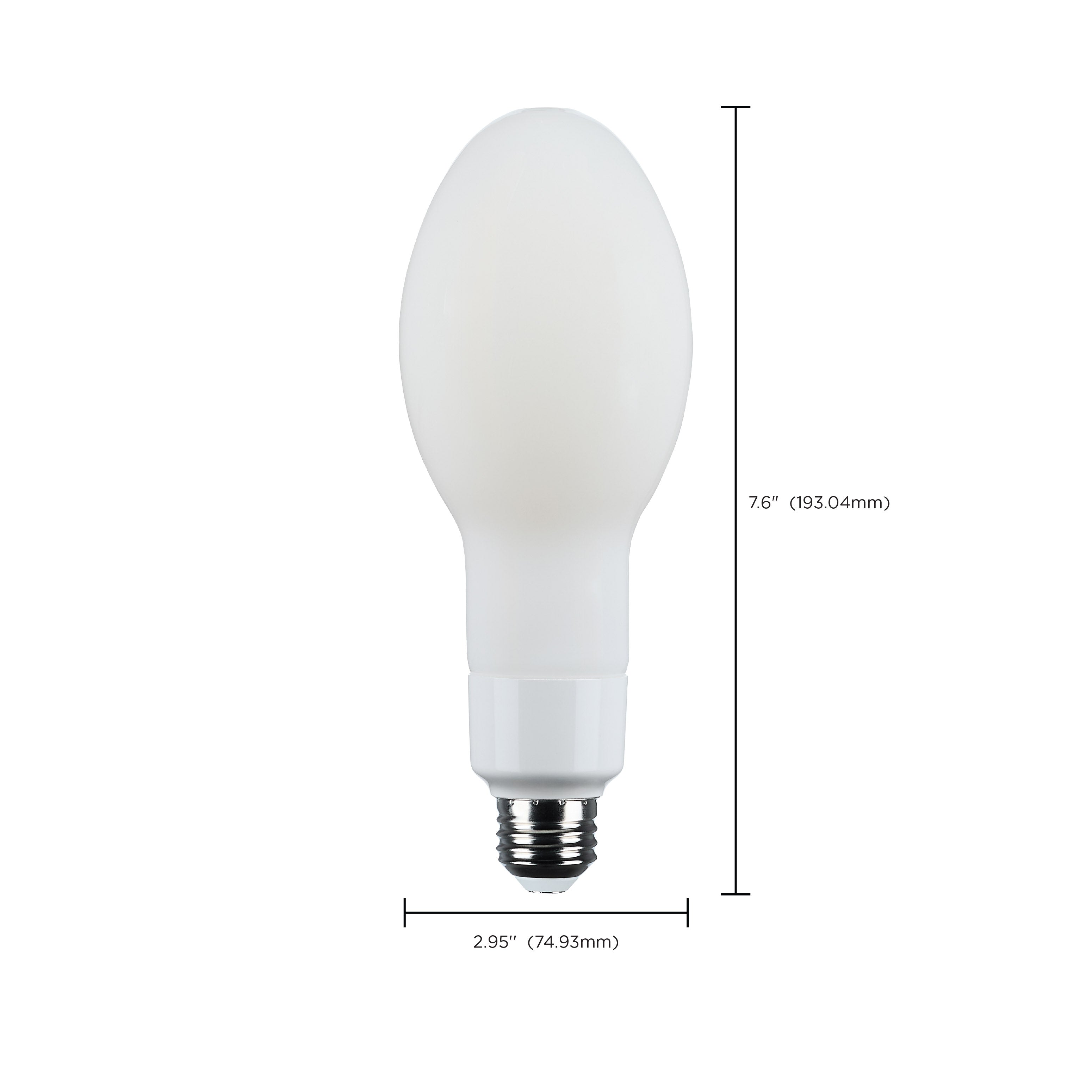

Length: 7.60 in.
-
Width: 2.90 in.
-
Height: 2.90 in.
-
UL: Yes
-
ETL: No
-
RoHS: Yes
-
FCC: Yes
-
CEC Status: Lawful for Sale
-
DLC ID: N/A
