Product Description

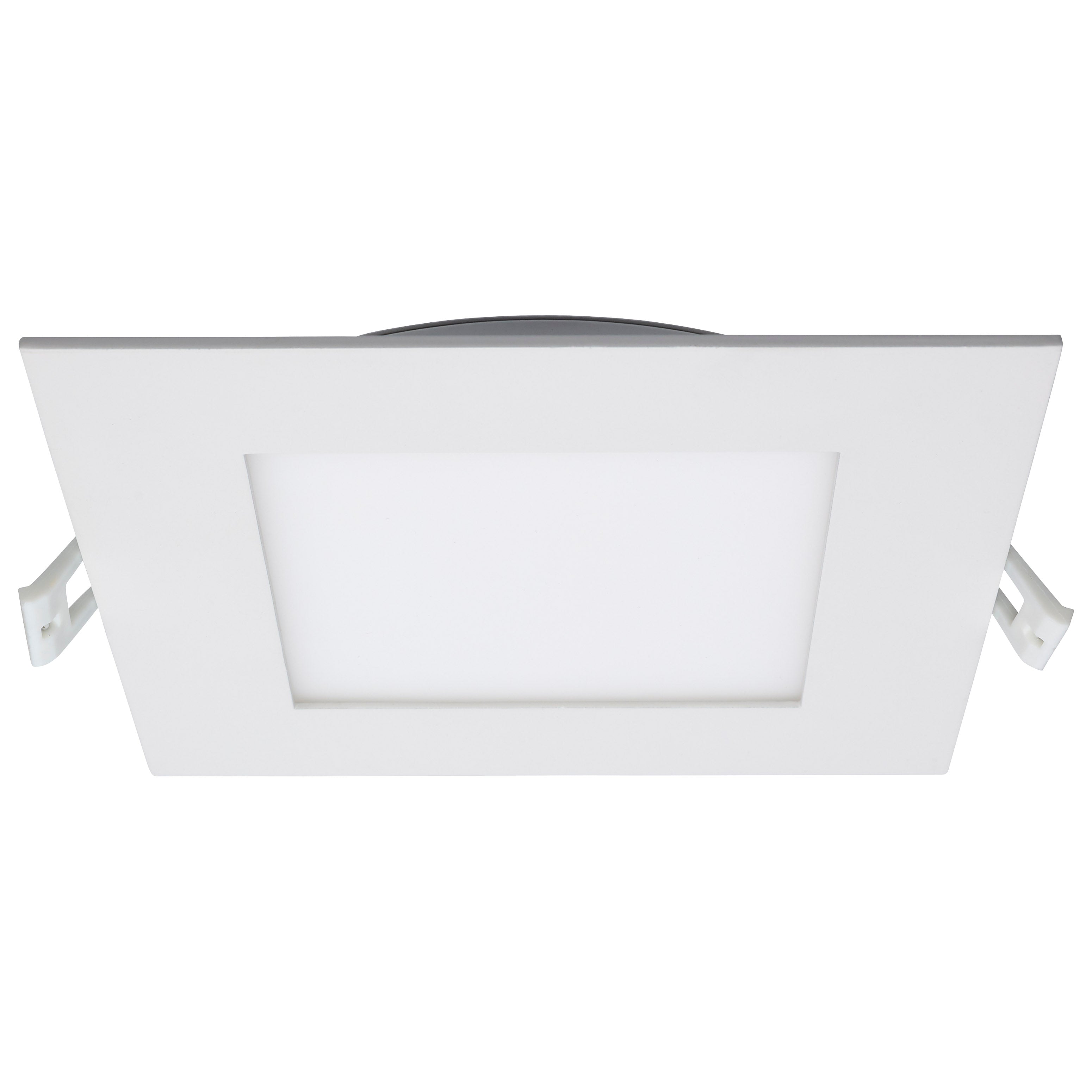

The Satco S11830 is a 12 Watt LED direct wire downlight with edge-lit technology. This 6-inch square fixture features CCT selectable options and is dimmable with a 120V power supply. It has a remote driver and an IP20 rating, suitable for indoor use. The downlight is constructed from aluminum with a frost lens finish.
- Lawful for sale in California
- Edge-lit
- CCT Selectable
Product Highlights
12W LED direct wire downlight with selectable color temperature and dimming capabilities. Ideal for recessed lighting applications.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: S11830
-
Country of Origin: China
Technical Specifications
-
Type: Direct Wire LED Downlight
-
Brand: Satco
-
Style: Utility
-
Width: 6.69 in
-
Finish: White
-
Height: 1.02 Inch
-
Length: 6.69 Inch
-
Lumens: 750L
-
Voltage: 120 Volt
-
Wattage: 12 Watt
-
Material: Aluminum
-
Dimmable?: Yes
-
IP Rating: IP20
-
Beam Angle: 108
-
Lens Color: Frost
-
Beam Spread: 108 degrees
-
Fixture Type: Square
-
Power Factor: 0.9
-
Indoor Outdoor: Indoor
-
Number of Lamps: 1
-
Technology Type: LED
-
Color Temperature: Cool White,Warm White
-
Country of Origin: China
-
Average Rated Life: 50000 hr
-
Correlated Color Temp: 2700 K
-
Operating Temperature: -20 degrees C
-
Incandescent Equivalent: 65 W
-
Catalog Number: S11830
-
Manufacturer: Satco
-
Application: Recessed Lighting
-
Mounting: Ceiling
-
Standard: cETLus
-
Item Type: Edge-Lit
-
Bulb Included: Integrated
-
Candle Power: 290.0
-
Dimmable Text: Reverse Phase or Phase Selectable
-
Total Harmonic Distortion: <20%
-
CCT Selectable: Yes
-
Wattage Selectable: No
-
Can Size: 6 in.
-
Finish Family: White
-
Additional Info: Candlepower: 290
-
Amps: 0.100A
-
Lens Finish: Frost
-
Sloped Ceiling Compatible: No
-
Product Technology: LED
-
CCT (Kelvin Temp): 2700K/3000K/3500K/4000K/5000K
-
Dimmable: Yes-Dimmable
-
Hours Rated: 50000
-
Beam Angle (degree): 108
-
Color Temp: Warm to Cool White
-
CRI: 90+
-
Dimming Type: 120V only, Phase cut
-
Operating Frequency: 60Hz
-
Operating Temp: -20C (-4F) to +45C (+113F)
-
Volts: 120v
-
Watts: 12W
-
Lamp Base: Integrated
-
ANSI Base: Integrated
-
Lamp Type: Integrated LED
-
Fixture Shape: Square
