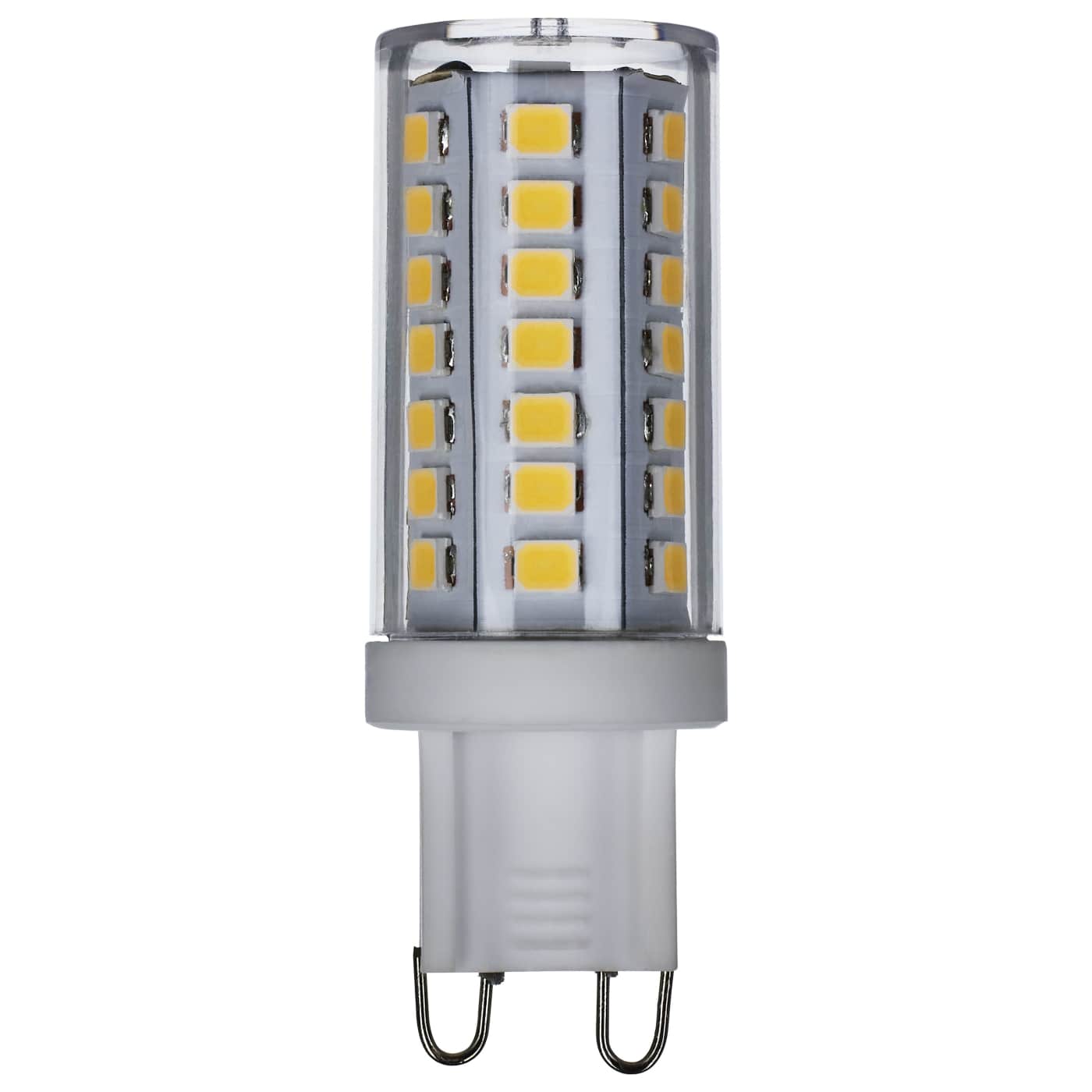

Satco s11234 Led G9 T4 Lamp 5W 3000K Dimmable

Product Description

The SATCO s11234 is a 5-watt LED T4 lamp with a G9 double loop base, designed as a direct replacement for halogen G9 capsule lamps in residential and light commercial luminaires. Operating at 120 volts and producing 550 lumens at 3000K (Soft White), it delivers a wide 300-degree beam angle and a CRI of 80 or better. The clear polycarbonate lens maintains the light quality expected from a small-format lamp while cutting energy use compared to the 40-watt halogen equivalent it replaces. Rated for 25,000 hours and listed for enclosed fixture use, this lamp suits applications where longevity and low maintenance matter.

The s11234 is rated for indoor use in universal operating position, making it suitable for pendants, chandeliers, sconces, undercabinet fixtures, and accent luminaires that accept a G9 base. It is phase-cut dimmable on 120V circuits, compatible with standard leading-edge and trailing-edge dimmers. This lamp targets electricians, lighting contractors, and maintenance techs performing halogen-to-LED retrofits in hospitality, residential, and light commercial settings.

Key Features

• 5 watts replaces 40-watt halogen equivalent, reducing fixture energy draw significantly
• 550 lumens output with 300-degree beam angle for wide, even distribution
• 3000K Soft White color temperature with CRI 80 or better
• Phase-cut dimmable at 120V for compatibility with standard dimmers
• Rated for enclosed fixtures with universal operating position
• 25,000-hour rated life with 5-year warranty

Compatibility

Designed as an OEM-style replacement for G9 base halogen and LED T4 capsule lamps in indoor luminaires rated for 120V operation. Rated for enclosed fixture use.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize the circuit and allow any existing halogen lamp to cool completely before handling. Per manufacturer guidance, the original protective glass shield used with halogen lamps should be removed during installation of this LED lamp, and this lamp is not rated for use in vapor-tight fixtures. Confirm dimmer compatibility before installation when used on a dimmed circuit.

Technical Specifications

• Wattage: 5W
• HID/Halogen Equivalent: 40W
• Lumens: 550
• Color Temperature (CCT): 3000K Soft White
• CRI: 80+
• Beam Angle: 300 degrees
• Voltage: 120V
• Amperage: 0.042A
• Operating Frequency: 60Hz
• Power Factor: 0.9
• Total Harmonic Distortion: 70%
• Dimmable: Yes, 120V phase-cut only
• Dimming Type: Phase cut
• Lamp Base: G9 Double Loop
• ANSI Base: G9
• Lamp Type: T4
• Finish: Clear
• Lens Material: Plastic
• Housing Color: White
• Material: Ceramic and Polycarbonate (PC)
• Operating Position: Universal
• Indoor/Outdoor: Indoor
• Rated for Enclosed Fixture: Yes
• Rated Hours: 25,000
• Operating Temperature: -4 degrees F to +104 degrees F (-20C to +40C)
• Maximum Overall Diameter (MOD): 0.75 inches
• Maximum Overall Length (MOL): 2.13 inches
• Warranty: 5 years

Standard Information

• Brand: SATCO
• Manufacturer Part Number: s11234
