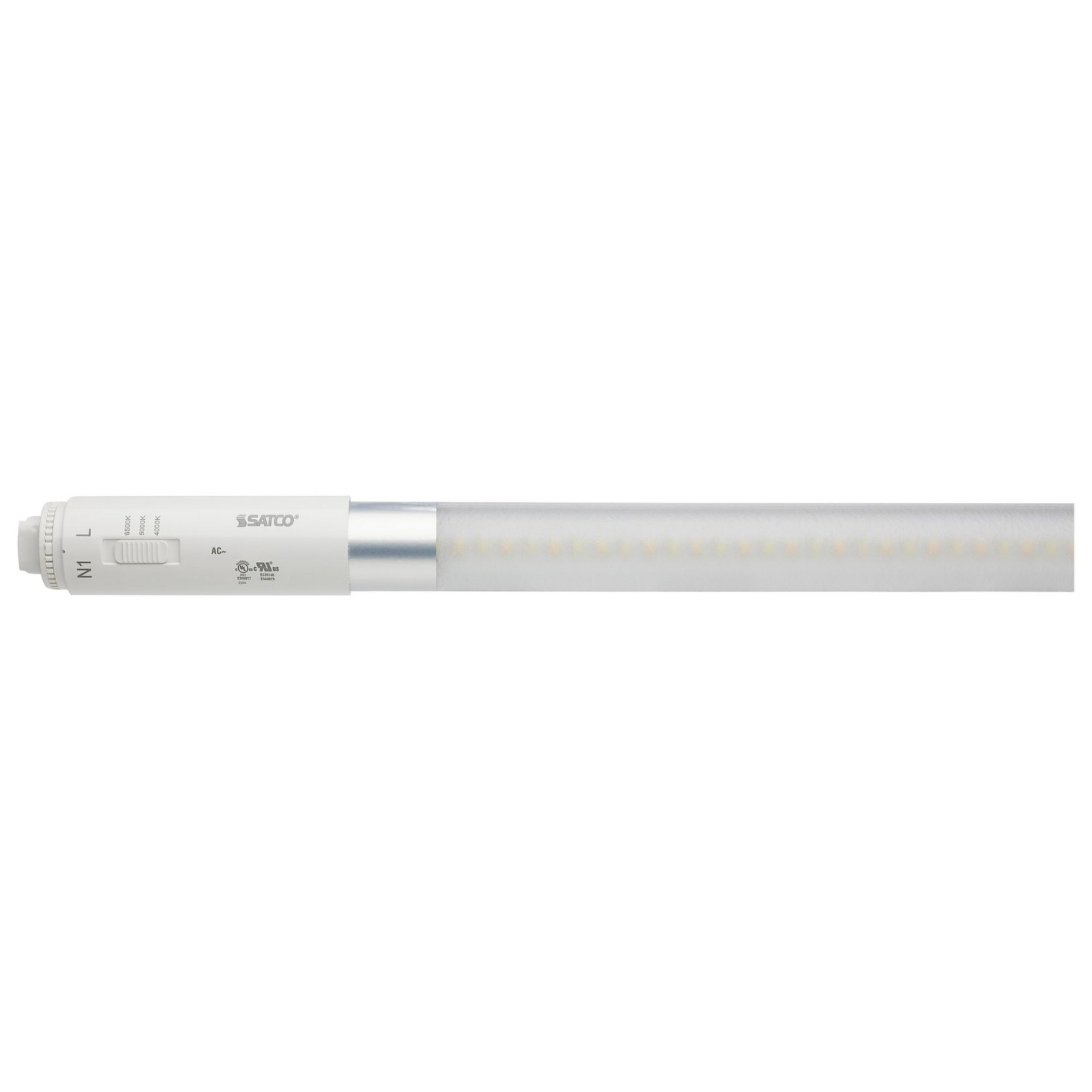

SATCO-NUVO S16432 11W T8 LED, CCT Selectable, Ballast Bypass

Product Description

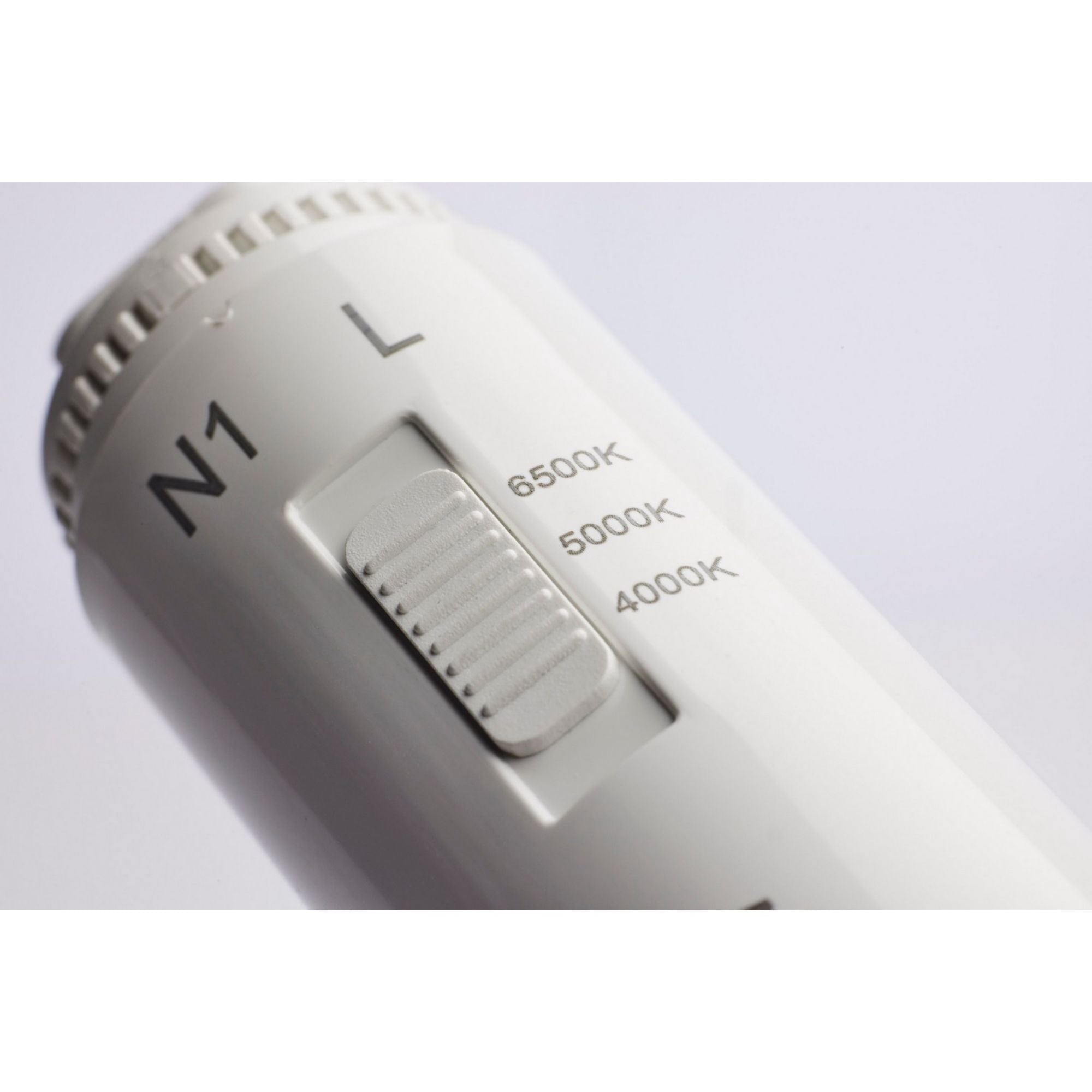

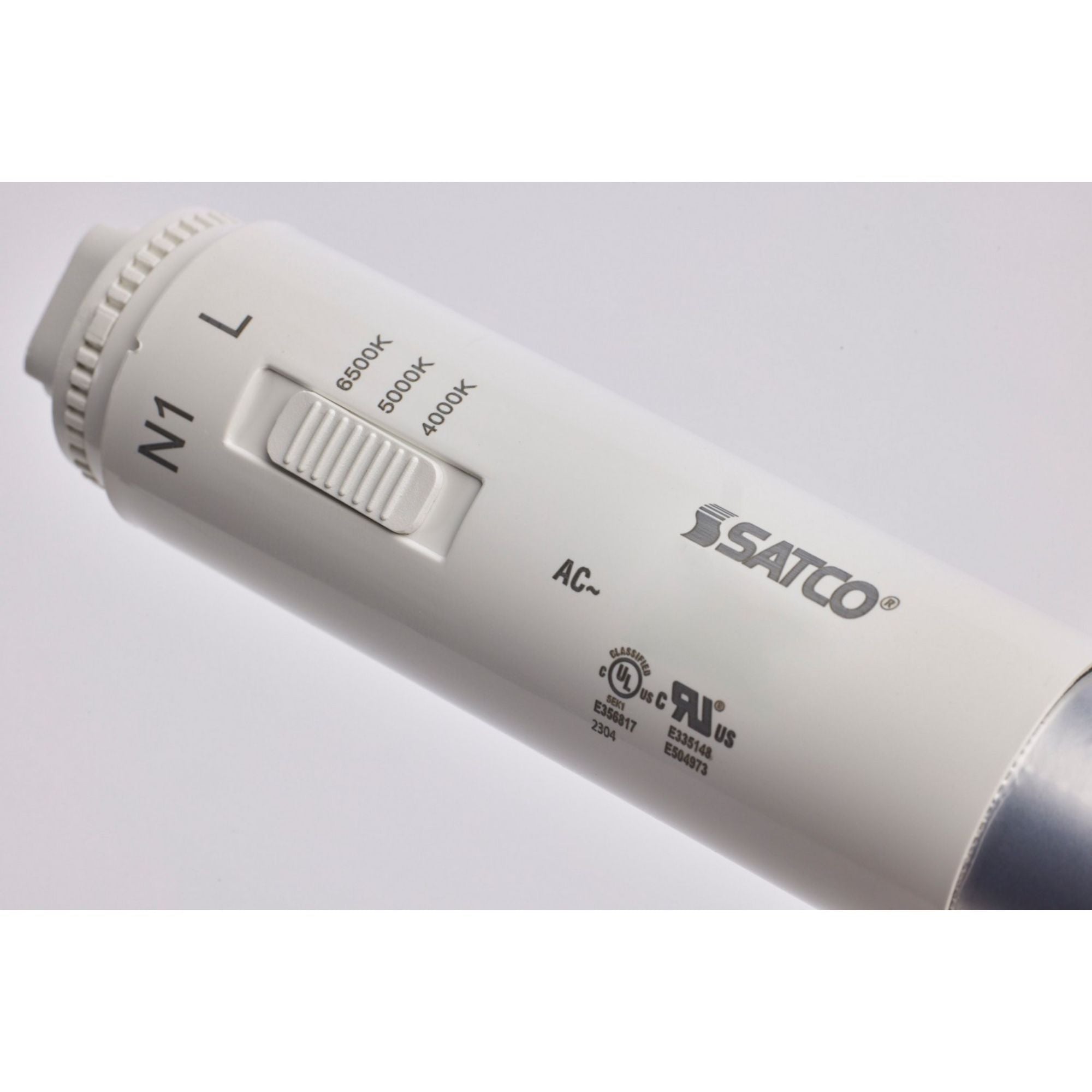

The SATCO-NUVO S16432 is an eleven-watt T8 LED lamp for ballast bypass installations. It operates on one hundred twenty to two hundred seventy-seven volts and features selectable color temperatures of four thousand Kelvin, five thousand Kelvin, and six thousand five hundred Kelvin. This lamp delivers 360-degree illumination and is rated for damp locations. It has a recessed double contact HO/VHO base and a lifespan of fifty thousand hours.

• T8 LED lamp with selectable color temperature settings.
• Requires ballast bypass for installation.
• Suitable for both single and double-ended wiring.

Product Highlights

The SATCO-NUVO S16432 offers flexibility in lighting options and is ideal for various commercial and residential projects requiring efficient lighting solutions.

Product Information

Standard Information

• Brand: SATCO-NUVO
• MPN: S16432

Technical Specifications

• Power Consumption: 11W
• Incandescent Equivalent: 50W
• Fluorescent Equivalent: 42W
• Input Voltage: 120V-277V
• Output Current: 0.092-0.040A
• Ballast Type: Type B
• Bulb Shape: T8

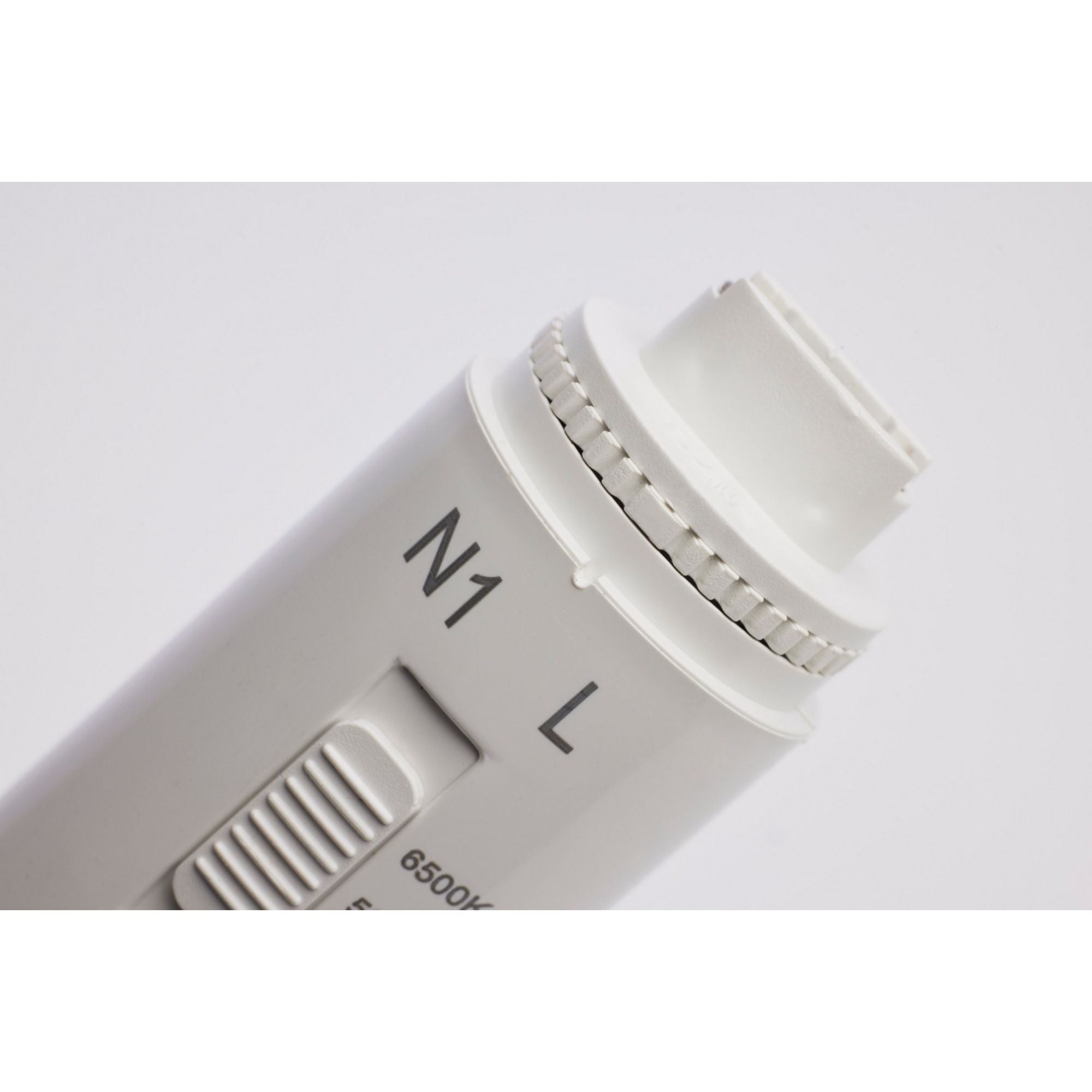

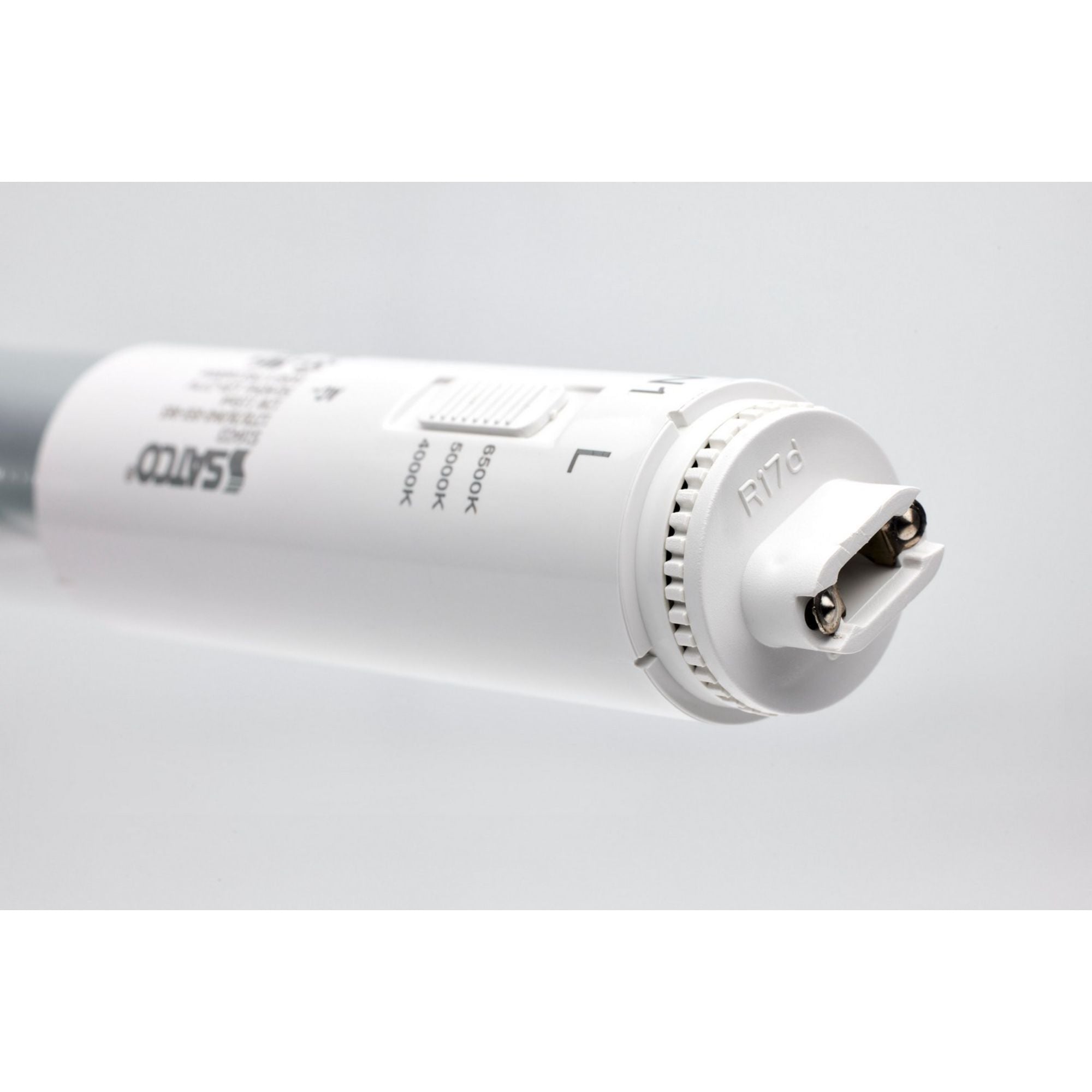

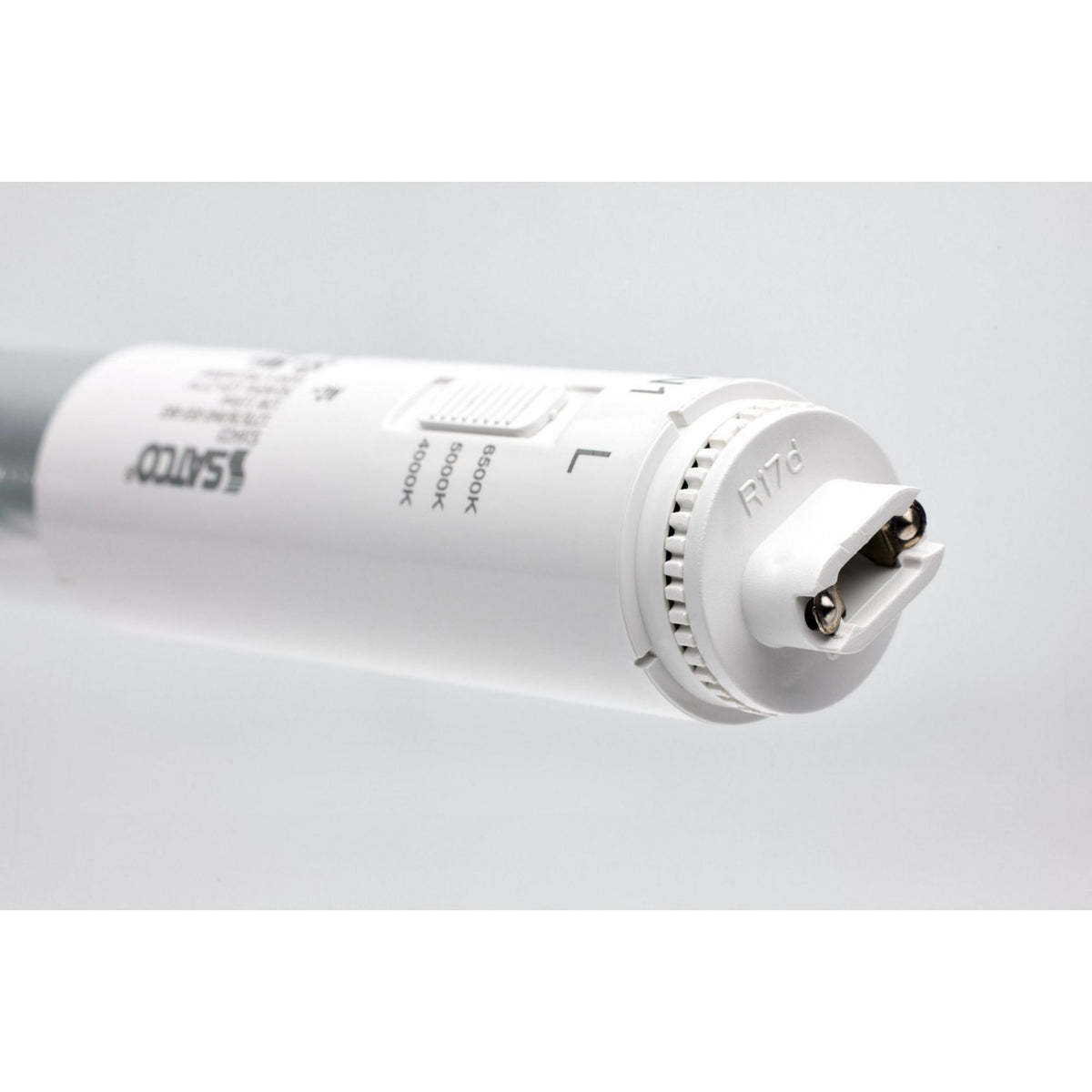

• Base Type: Recessed Double Contact HO/VHO
• ANSI Base: R17d
• Nominal Length: 30 inches
• Length (MOL): 27.81 inches
• Diameter: 1.13 inches
• Color Temperature: 4000K/5000K/6500K
• CRI: 80+
• Luminous Flux: 1500L/1600L/1450L
• Beam Angle: 360 degrees
• Dimmable: Non-Dimmable
• Rated Life: 50000 Hours
• Operating Temperature: -20C (-4F) to +45C (+113F)
• Material: Polycarbonate (PC)
• IP Rating: IP20
