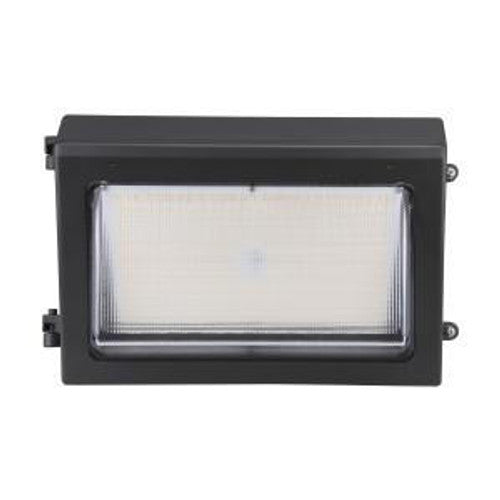

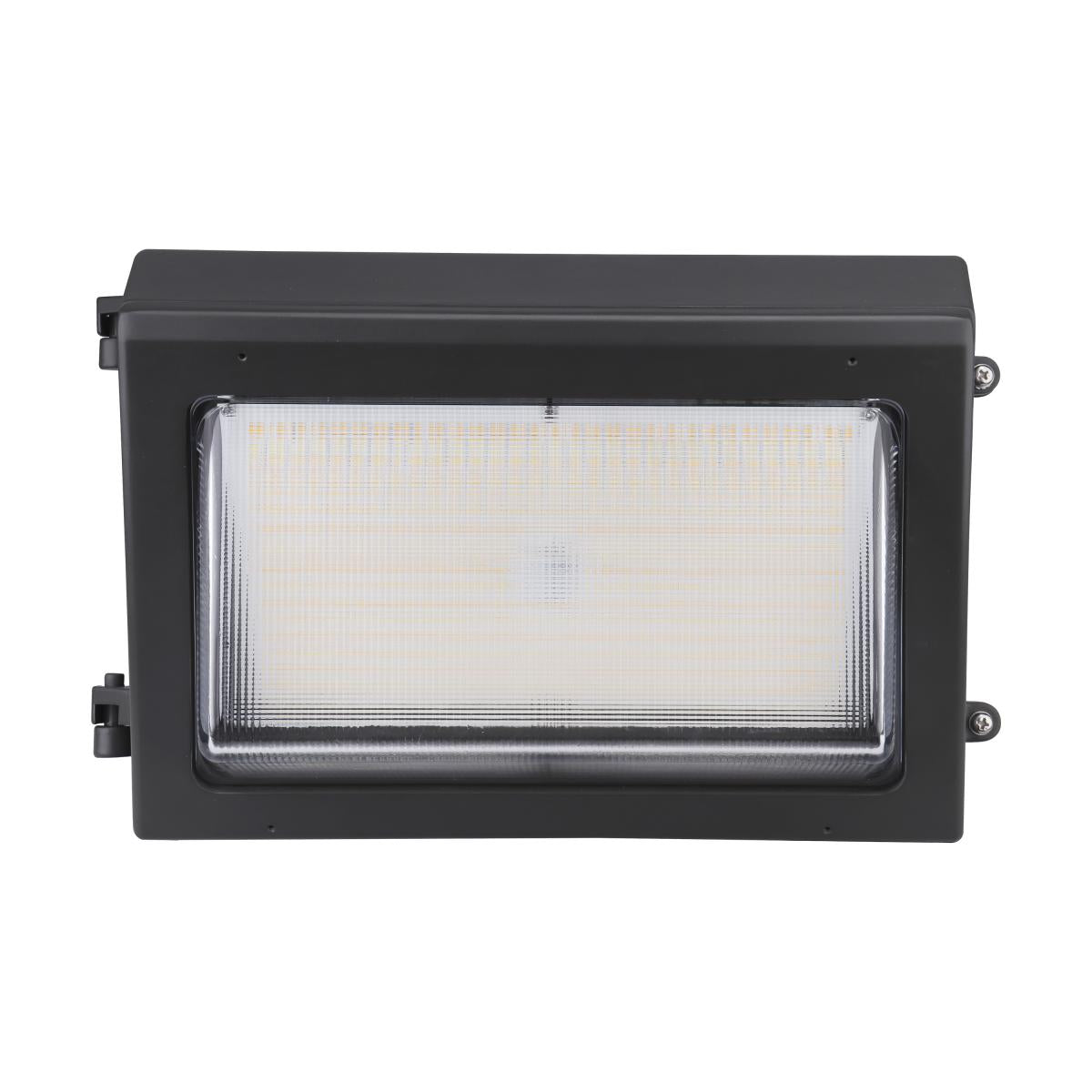

SATCO 65-756 LED Wall Pack, CCT & Wattage Adjustable

Product Description

The SATCO 65-756 is an LED wall pack suitable for outdoor lighting. It is designed with adjustable wattage options of eighty watts, one hundred watts, and one hundred twenty watts. Users can select color temperatures of three thousand Kelvin, four thousand Kelvin, or five thousand Kelvin. The product operates on a voltage range of one hundred twenty to two hundred seventy-seven volts and supports 0-10V dimming. This model includes a built-in bypassable photocell for automatic operation from dusk to dawn.

• Wattage selectable: 80W, 100W, or 120W.
• Color temperature adjustable: 3000K, 4000K, or 5000K.
• Integrated bypassable photocell included.

Product Highlights

This wall pack features a bronze finish and is rated for wet locations, making it a reliable choice for outdoor applications.

Product Information

Standard Information

• Brand: Satco
• Manufacturer Part Number: 65-756

Technical Specifications

• UPC: 045923670763
• Fixture Type: Wall Pack
• Light Source: LED
• Input Voltage: 120-277V
• Power Consumption: 80W/100W/120W
• Lumen Output: 11200L-17280L
• Color Temperature: 3000K/4000K/5000K
• Color Rendering Index (CRI): 80+
• Dimmable: Yes
• Dimming Note: 0-10V Dimming Only
• Fixture Finish: Bronze
• Fixture Environment: Outdoor
• IP Rating: IP65
• Rated Hours: 50000
• Operating Temperature: -40C to +50C
• Beam Angle: 110
• Surge Protection: Built-in surge protection - 4KV
• Mounting Type: Wall
• Height: 9.35 inches
• Width: 14.36 inches
• Extension: 7.39 inches
• Weight: 9.5 lb.
• Enclosure Material: Die-Cast Aluminum
• Lens Material: Glass
• Certifications: cULus - Certified
• Location Rating: Wet
• DLC Approved: Yes
• DLC Product ID: PLQBZSSZVMBW
• RoHS Compliant: Yes
• FCC Compliant: Yes
• Photocell: Yes
