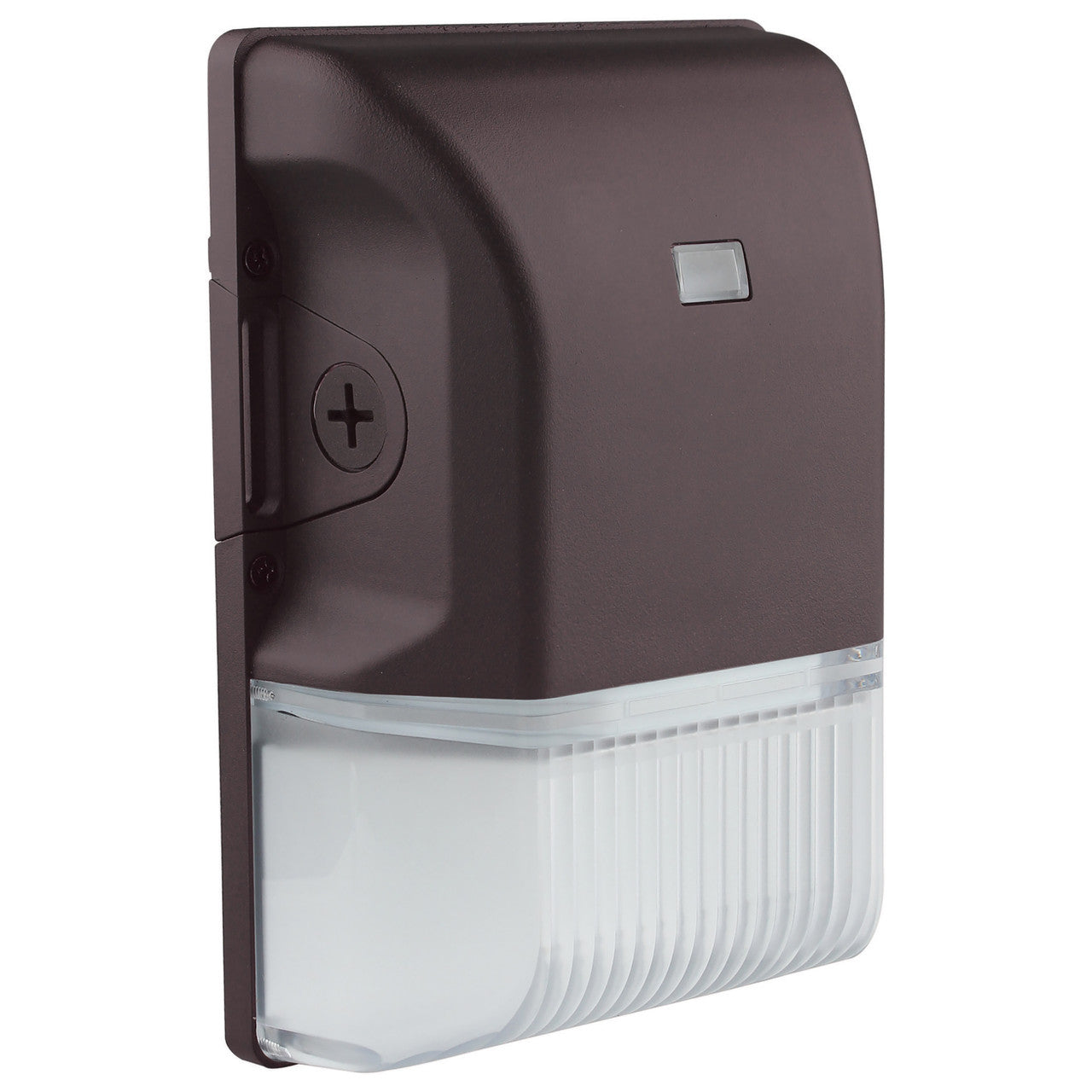

SATCO 65-748 LED Small Wall Pack with Photocell

Product Description

The SATCO 65-748 is a 20W LED small wall pack designed for outdoor applications. This fixture operates on voltages from one hundred to two hundred seventy-seven. It features selectable color temperatures at three thousand Kelvin, four thousand Kelvin, and five thousand Kelvin. The integrated photocell allows for automatic operation from dusk to dawn, making it ideal for energy efficiency. The construction comprises durable cast aluminum and a polycarbonate lens, suited for wet locations.

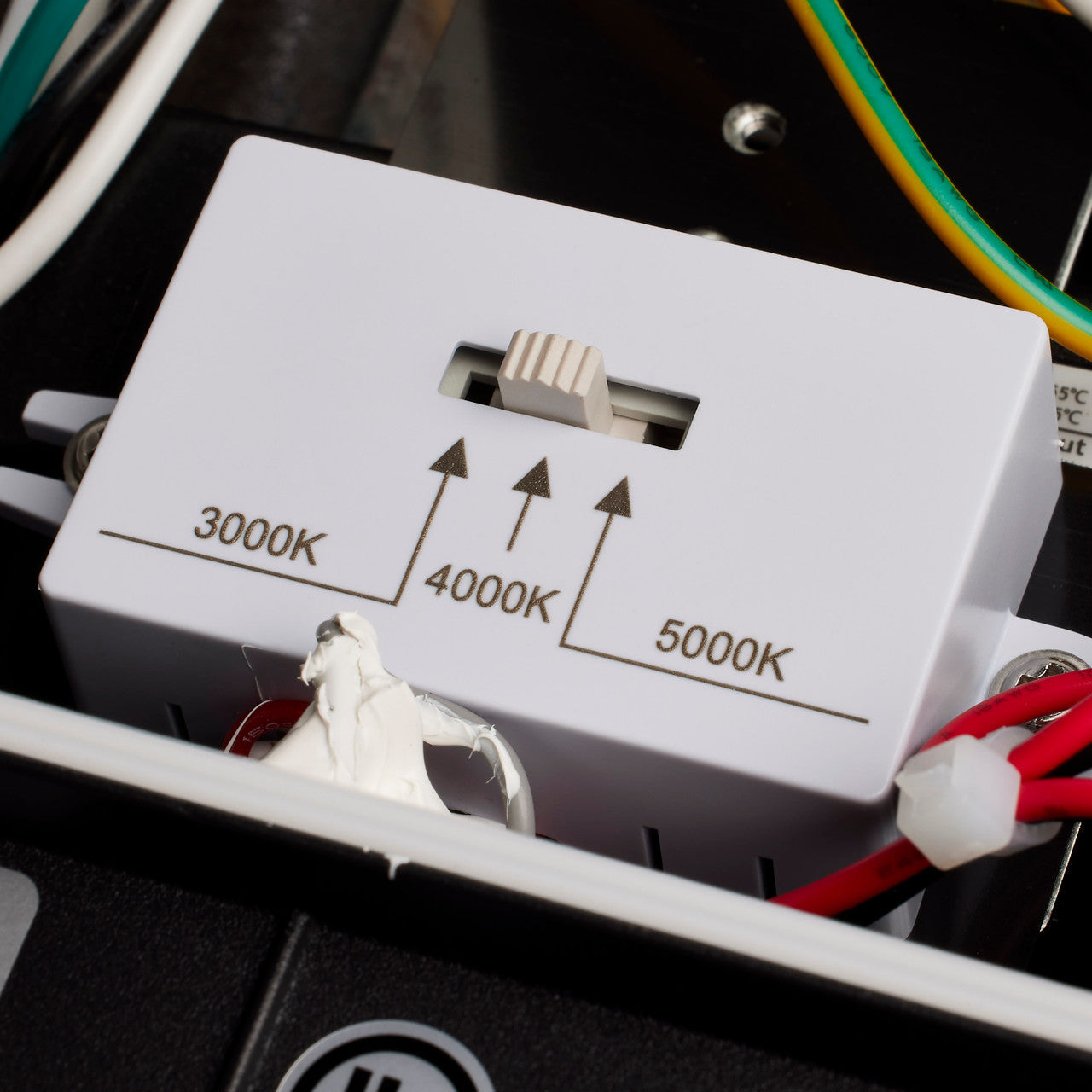

• 20W LED with selectable CCT (3000K, 4000K, 5000K)
• Integrated photocell for automatic dusk-to-dawn operation
• Designed for wet location use

Product Highlights

Product Information

Standard Information

• Brand: SATCO
• Manufacturer Part Number: 65-748

Technical Specifications

• Input Voltage: 120-277V
• Wattage: 20W
• Lumens: 2920
• Color Temperature: 3000K, 4000K, 5000K
• CRI: 80+
• Rated Hours: 50000
• Dimmable: Yes
• Dimming Type: 0-10V
• Fixture Finish: Bronze
• Location Rating: Wet
• Operating Temperature: -20C to +45C
• Photocell or Sensor: Has Photocell
• Lens Material: Polycarbonate
• Weight: 1.98 lbs
• Height: 8.59 inches
• Width: 5.81 inches
• Extension: 3.09 inches
• Safety Listing: cULus - Certified
• IP Rating: IP65
• DLC Approved: Yes
• Warranty: 5 Year
