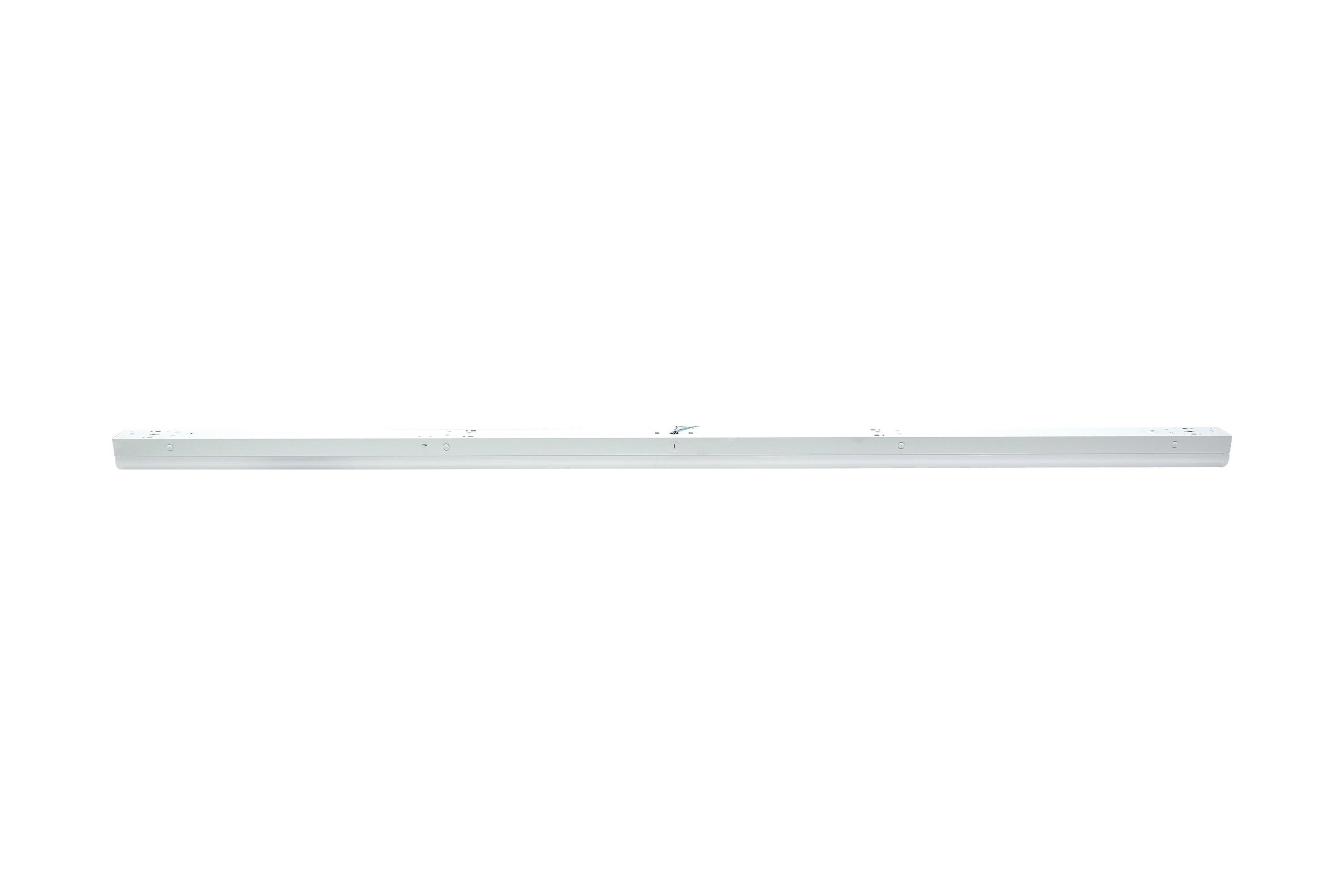

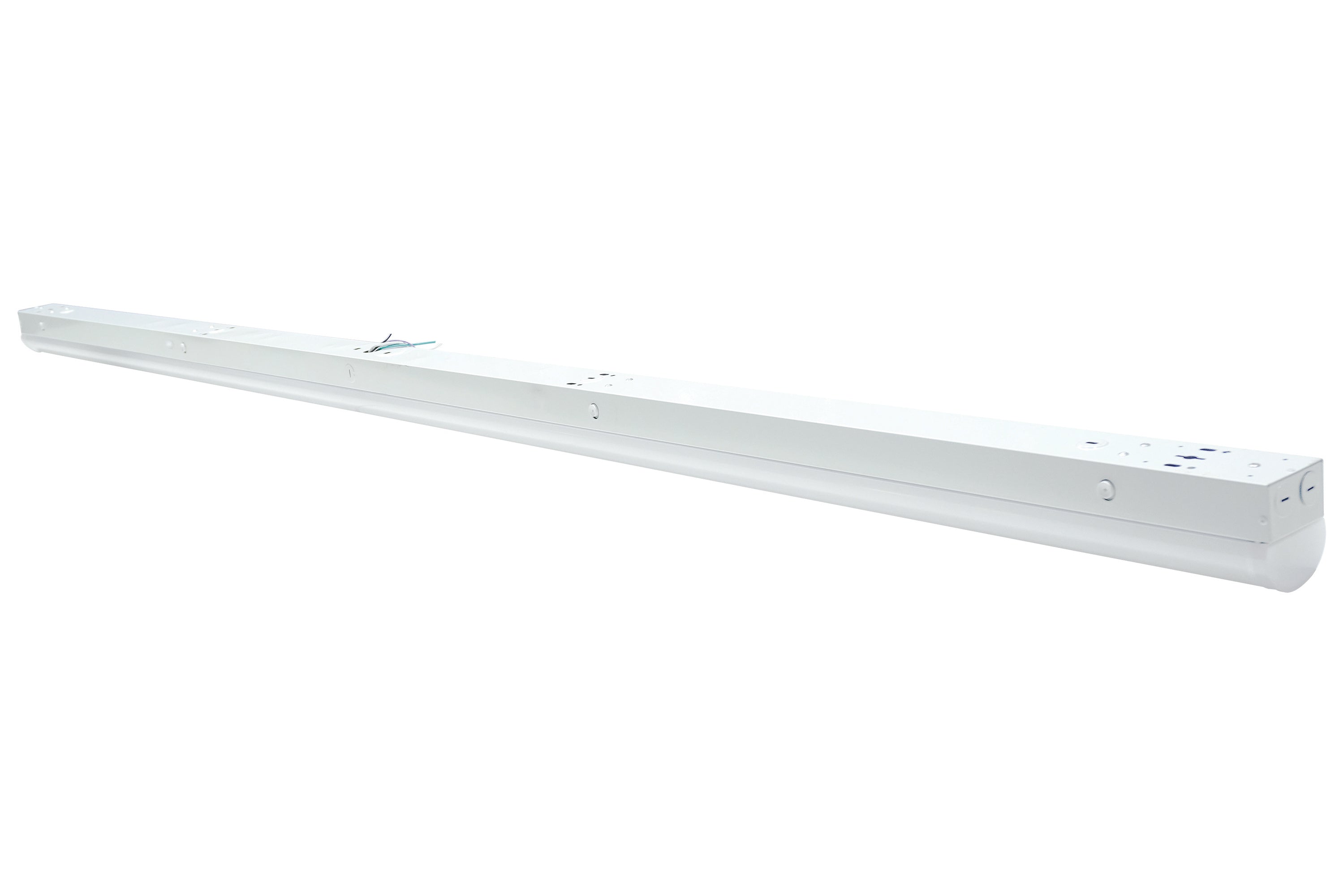

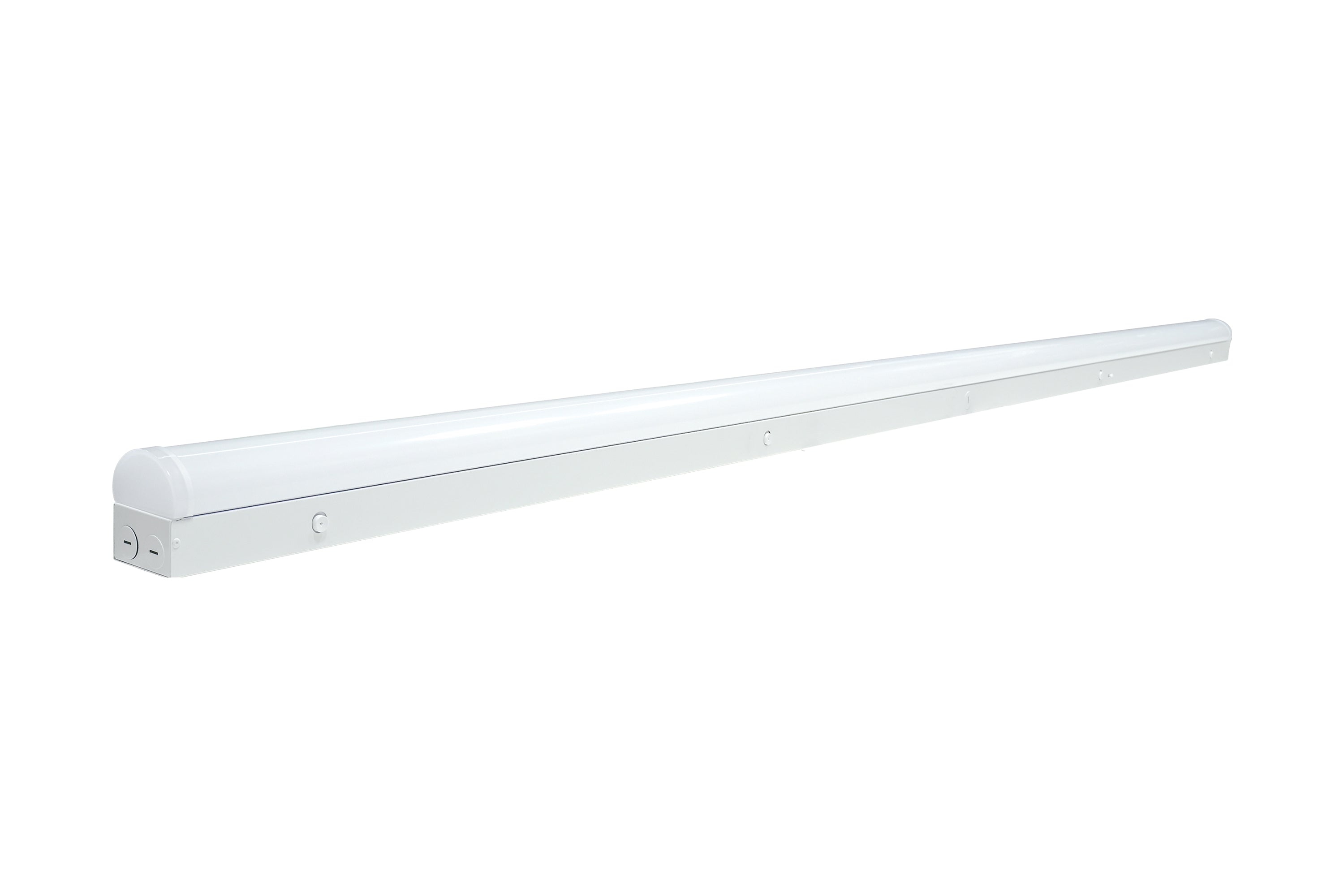

Satco 65-702 8 feet Linear Strip Wattage and CCT Selectable

Product Description

The SATCO 65-702 8' Linear Strip Light is an LED fixture with selectable wattage and CCT. This strip light offers versatile lighting solutions for a range of applications. It features a white finish and is suitable for indoor use. The fixture is wattage and CCT selectable, allowing users to adjust the color temperature to suit their preferences.

• Wattage and CCT Selectable
• Built-in surge protection - 2KV
• Flicker Free

Product Highlights

This LED linear strip light provides adaptable lighting for diverse applications with its selectable wattage and color temperature settings.

Product Information

Standard Information

• Brand: SATCO
• Manufacturer Part Number: 65-702
• Country of Origin: VN

Technical Specifications

• Bulb Included: Integrated
• Dimmable Text: 0-10V Dimming Only
• Material: Steel
• Fixture Type: Strip Light
• Status: Active
• Style: Utility
• Surge Protection: Built-in surge protection - 2KV
• Total Harmonic Distortion: 10.77%
• CCT Selectable: True
• Wattage Selectable: True
• Finish Family: White
• Amps: 0.250-0.108/0.333-0.144/0.417-0.181A
• Has Camera: False
• IOT Enabled: False
• Lens Finish: White
• Lens Material: Polycarbonate (PC)
• Connectable Units: 10
• Photo Cell: Optional Add-On
• Power Factor: 0.9
• SDS Class: LED_Fixture
• Sloped Ceiling Compatible: Yes
• Indoor Outdoor: Indoor
• Product Technology: LED
• Color Temperature: 3500K/4000K/5000K
• Dimmable: Yes-Dimmable
• Hours Rated: 50000
• Beam Angle (degree): 120
• CRI: 80+
• Operating Frequency: 50/60Hz
• Operating Temperature: -20C (-4F) to +60C (+140F)
• Lumens: 3900L-6750L
• Volts: 120V-277V
• Watts: 30W/40W/50W
• Lamp Base: Integrated
• Finish: White
• ANSI Base: Integrated
• Lamp Type: LED
• Warranty: 5-Years
• Installation Notes: Maximum connected units is 10. If dimming, the dimmer max load will dicatate how many units can be on the run/control.
• Lumen Output: 3900L-6750L
• IP Rating: IP20
• Indoor or Outdoor Fixture: Indoor
• Integrated Camera: No
• Technology: LED
• Dimming Note: 0-10V Dimming Only
• Max. Connectable Units: 10
• Weight (lb.): 6.84
• Height (in.): 3.27
• Width (in.): 2.95
• Length (in.): 96
• Safety Listing: cULus - Certified
• Location Rating: Damp
• UL Application: Ceiling / Wall
• ENERGY STAR: No
• DLC Approved: Yes
• DLC ID: P4B87ZHS; PLIHZ3V2CRB9; S-04FYBP
• California Prop 65: Lead
• RoHS Compliant: Yes
• FCC Compliant: Yes
• Canadian Standard ICES-005: Class A
• Average Life: 50000 hr
• Color Rendering Index (CRI): 80
• Enclosure Type: IP20
• Fixture Wattage: 30/40/50 W
• Housing Finish: White
• Housing Material: Polycarbonate/Steel
• Light Color: Warm to Cool White
• Mounting Type: Surface
• Voltage Rating: 100 to 277 V AC, 100 to 277 VAC
• Driver: Flicker Free Driver
• Mounting: Multiple Mounting Options
• Estimated Life: Rated for 50,000 hours
