Product Description
The SATCO 65/678 is a 40 Watt adjustable LED wall pack, offering CCT selectable color temperature and 4800-5000 lumens for versatile outdoor lighting. This fixture features a die-cast aluminum body and an impact-resistant PC lens, ensuring durability in various conditions. It is designed for wet locations with an IP65 rating and includes built-in 4KV surge protection, making it suitable for robust exterior applications.
- CCT selectable (3000K/4000K/5000K) for customizable lighting.
- Adjustable fixture head (0-90 degrees) for precise light direction.
- IP65 rated and wet location certified for outdoor durability.
Product Highlights
DLC Premium certified, offering 50,000 hours of energy-efficient LED light with built-in 4KV surge protection.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: 65/678
Technical Specifications
-
MPN: 65/678
-
Fixture Type: Wall Pack
-
Technology: LED
-
Wattage: 40W
-
Lumens: 4800L-5000L
-
Input Voltage: 120V-277V
-
Current: 0.333-0.144A
-
Operating Frequency: 50-60Hz
-
Power Factor: >0.9
-
Total Harmonic Distortion: 9.81%
-
Color Temperature: 3000K/4000K/5000K
-
CCT Selectable: Yes
-
CRI: 80+
-
Dimmable: Yes
-
Dimming Type: 0-10V Dimming
-
Life Hours: 50000
-
Beam Angle: 65x95
-

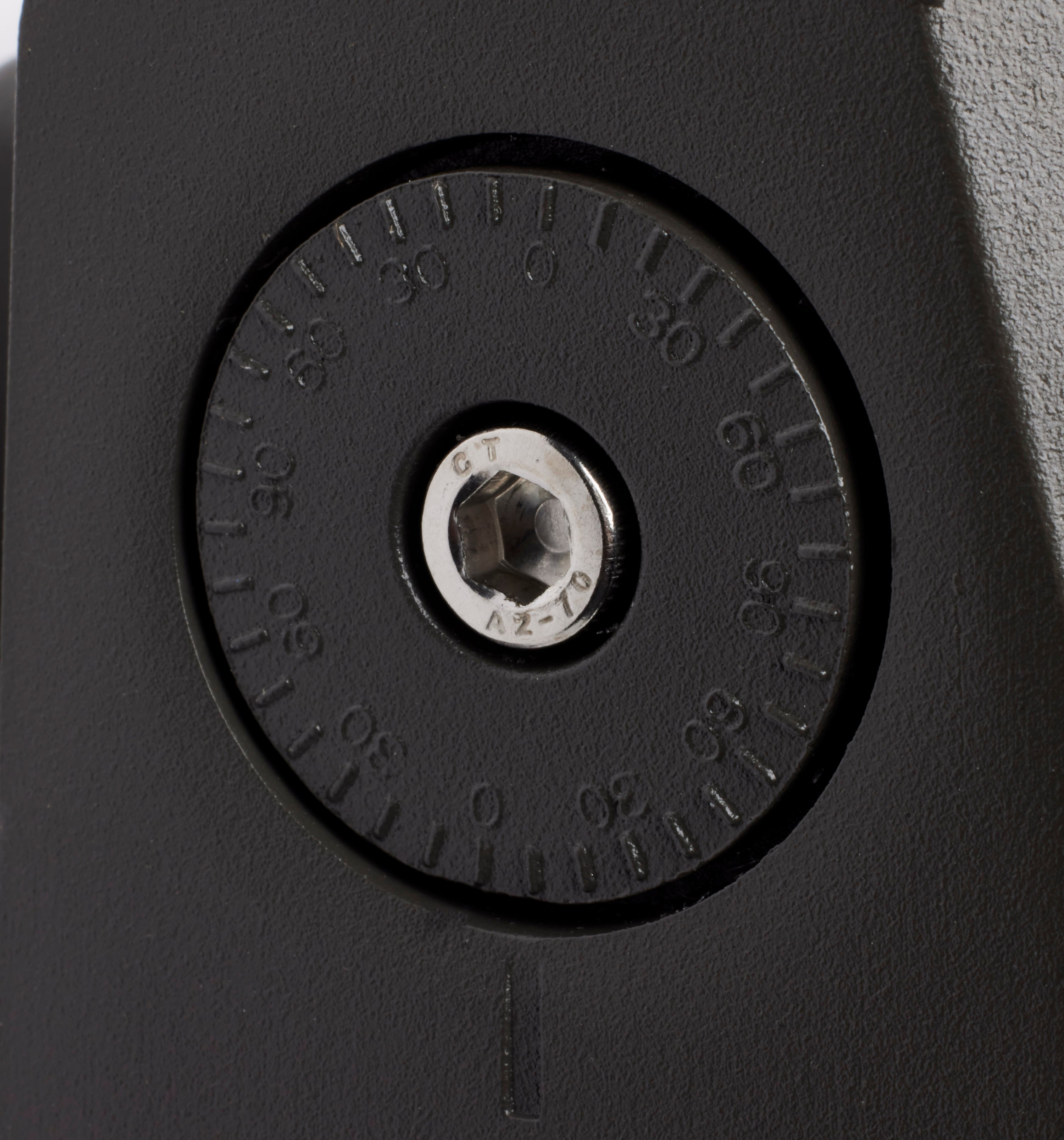

Angle Adjustment: 0-90 degrees from wall
-
Surge Protection: 4KV
-
Material: Die-cast Aluminum
-
Lens Material: Impact Resistant PC
-
Finish: Bronze
-

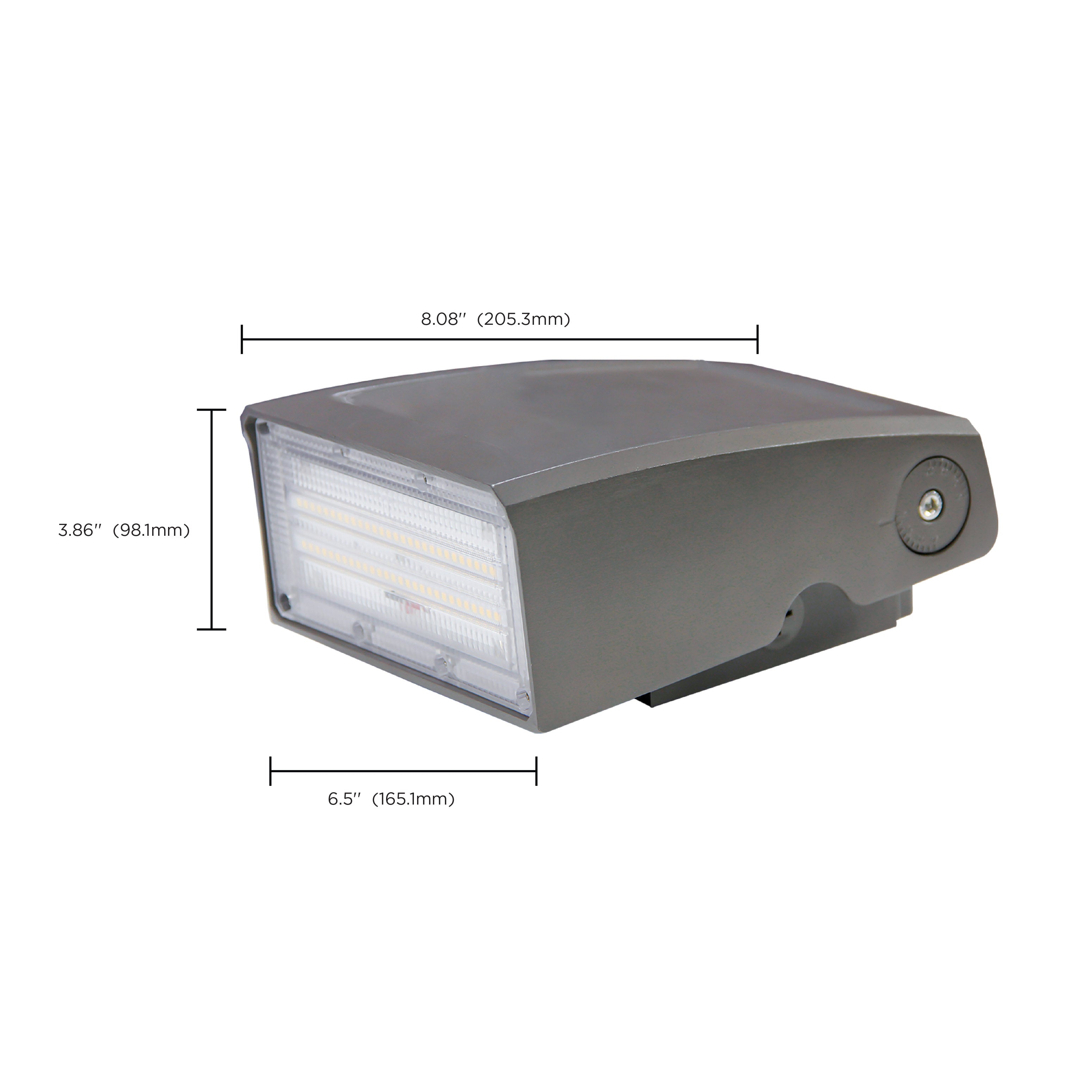

Extends: 3.86 in
-
Location Rating: Wet
-
IP Rating: IP65
-
Operating Temperature: -40F to +104F (-40C to +40C)
-
Equivalent Wattage (Incandescent): 300W
-
Equivalent Wattage (HID): 100W-150W
-
Base: Integrated
-
Lamp Type: Integrated LED
-
Certifications: DLC Premium, cULus Certified, FCC Compliant, ROHS Compliant, ADA Compliant
