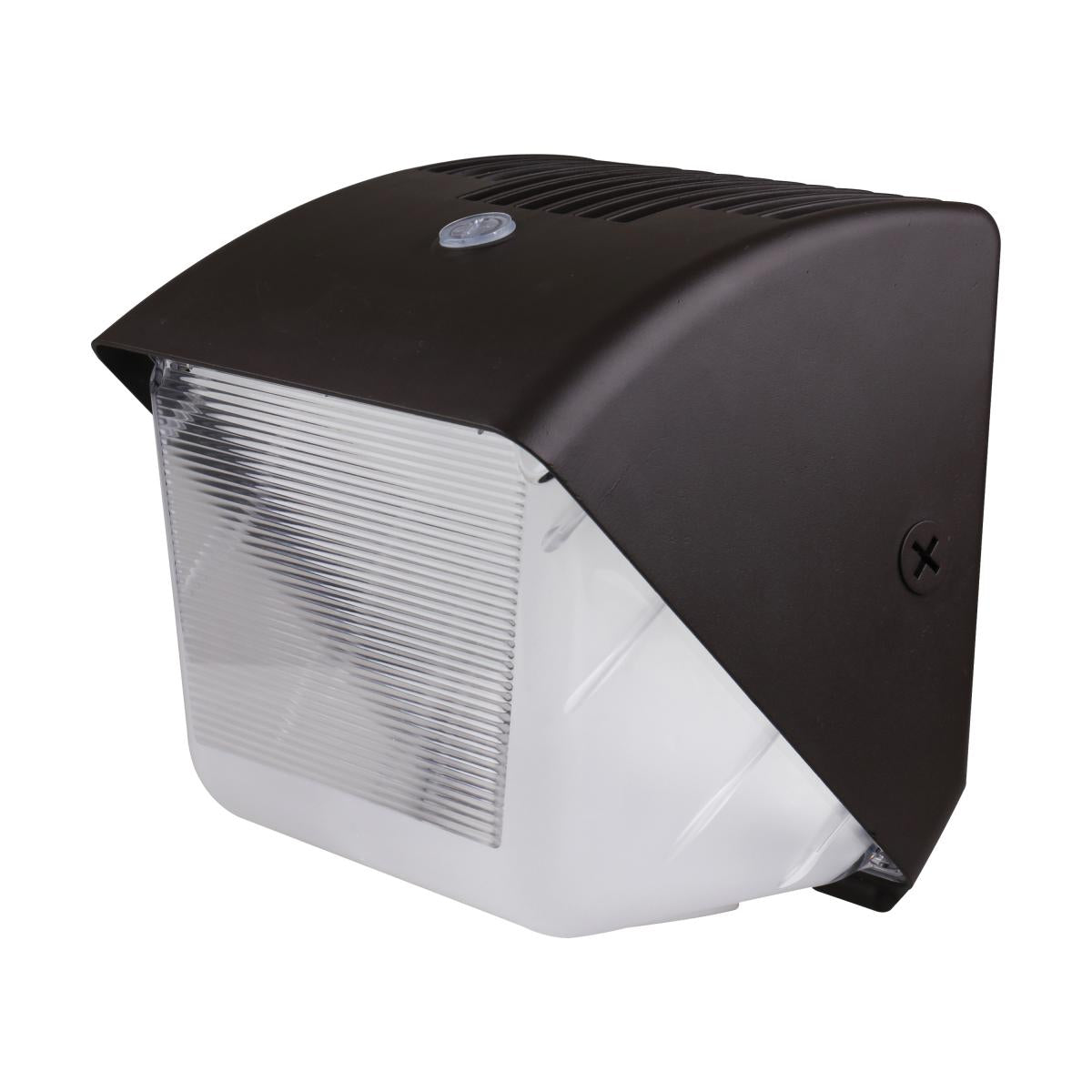

SATCO 65-655 29W LED Small Wall Pack

Product Description

The SATCO 65-655 is a 29W LED small wall pack suitable for outdoor applications. This fixture offers selectable color temperatures of 3000K, 4000K, or 5000K, making it versatile for various lighting needs. It operates on a voltage range of 120-277V and supports 0-10V dimming for enhanced control over brightness.

• Integrated bypassable photocell for dusk-to-dawn operation.
• IP65 rated for wet location use.
• Dimmable functionality with a simple setup.

Product Highlights

The SATCO 65-655 wall pack light ensures reliable performance in outdoor settings while providing energy-efficient LED technology.

Product Information

Standard Information

• Brand: SATCO
• Fixture Type: Wall Pack

Technical Specifications

• Manufacturer Part Number: 65-655
• Wattage: 29W
• Input Voltage: 120-277V
• Lumen Output: 3650L-3770L
• Color Temperature: 3000K/4000K/5000K
• Color Rendering Index (CRI): 70+
• Dimmability: Yes - Dimmable
• Dimming Note: 0-10V Dimming Only
• Photocell or Sensor: Yes - Bypassable
• IP Rating: IP65
• Location Rating: Wet
• Operating Temperature: -40C to +45C
• Rated Hours: 50000
• Beam Angle: 80
• Surge Protection: Built-in 2.5KV
• Finish: Bronze
• Material: Aluminum / Polycarbonate
• Height: 8.44 inches
• Width: 8.5 inches
• Extension: 7.45 inches
• Weight: 5.08 lbs
• Safety Listing: cULus
• DLC Approved: Yes
• DLC ID: PLUFWGU0SVE7
• B.U.G. Rating: B1-U3-G2
• RoHS Compliant: Yes
• FCC Compliant: Yes
• Canadian Standard ICES-005: Class A
• Flicker Free: Yes
• Average Life: 50000 hours
• Dimension (Inches): 10.14 x 9.84 x 9.65
• Warranty Information: Standard Manufacturer's Limited Warranty
