Product Description

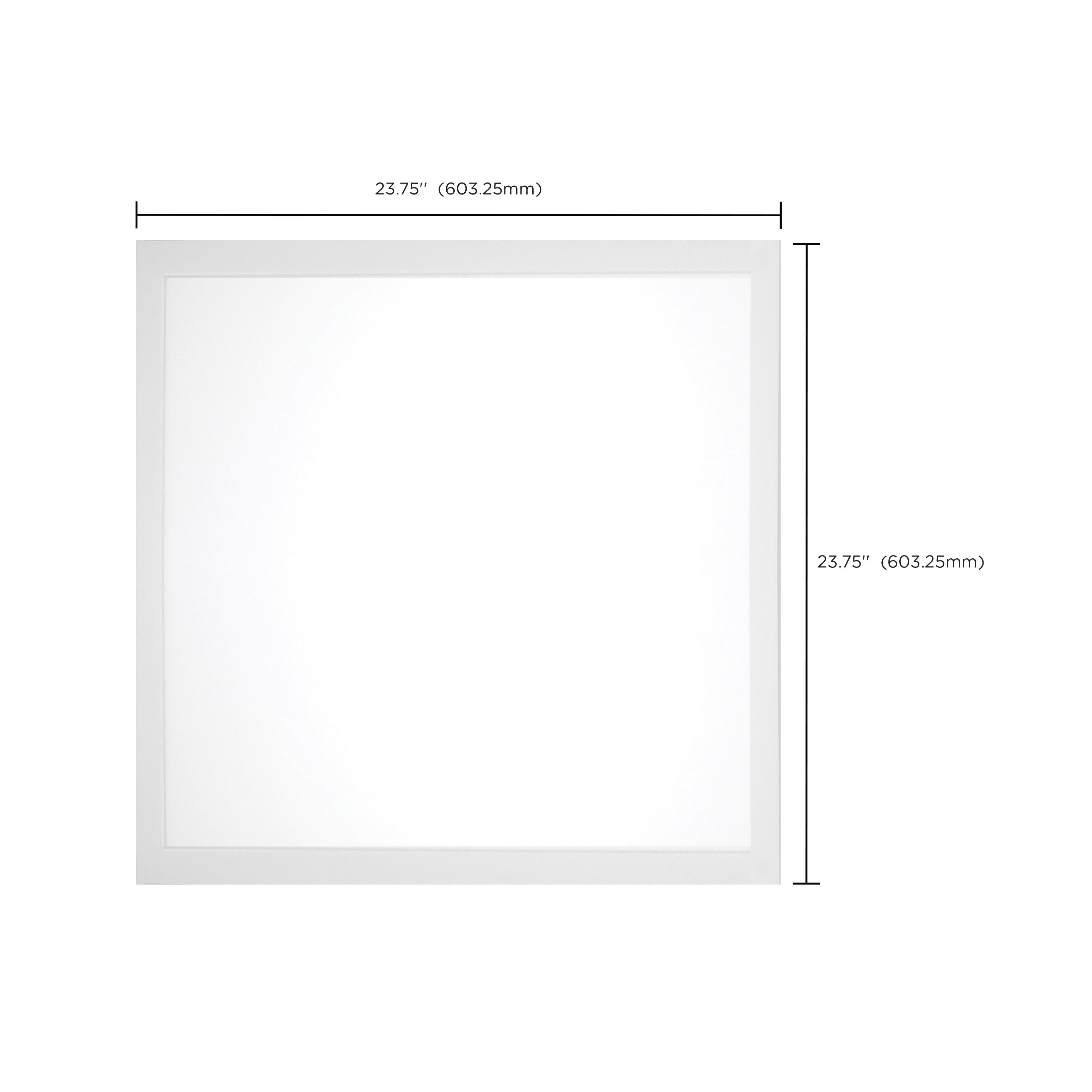

The SATCO 65/575R1 is a 2 ft. x 2 ft. LED emergency backlit flat panel with selectable wattage and CCT. This 100-277 Volt fixture features ColorQuick and PowerQuick Technology and a white finish. It has built-in surge protection of 2KV and operates at 50/60Hz. The product is suitable for indoor use.
- Flicker Free
- Wattage and CCT Selectable
- ColorQuick Technology
- PowerQuick Technology
Product Highlights
This LED flat panel offers adjustable wattage and color temperature, ensuring optimal lighting for various indoor environments.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: 65/575R1
Technical Specifications
-
Bulb Included: Integrated
-
Dimmable Text: 0-10V Dimming Only
-
Material: Aluminum / Steel
-
Fixture Type: Backlit Flat Panel
-
Status: Active
-
Style: Utility
-
Surge Protection: Built-in surge protection - 2KV
-
Total Harmonic Distortion: 16.30%
-
Wire Color: White / Black / Green
-
Wire Length: 3.54
-
CCT Selectable: Yes
-
Wattage Selectable: Yes
-
Finish Family: White
-
Additional Info: Driver Specs - VDC38-48V; 430/620/810mA
-
Amps: 0.200-0.072/0.300-0.108/0.400-0.144A
-
Has Camera: No
-
IOT Enabled: No
-
Lens Finish: Frost
-
Lens Material: Poly methyl methacrylate (PMMA)
-
Photo Cell: No Photocell
-
Power Factor: 0.9
-
SDS Class: LED_Fixture
-
Indoor Outdoor: Indoor
-
Product Technology: LED
-
Incandescent Equivalent: 150W-175W
-
CCT (Kelvin Temp): 3500K/4000K/5000K
-
Dimmable: Yes-Dimmable
-
Hours Rated: 50000
-
Beam Angle (degree): 120
-
Color Temp: Warm to Cool White
-
CRI: 80+
-
Operating Frequency: 50/60Hz
-
Operating Temp: -17C (+1.4F) to +45C (+113F)
-
Lumens: 2200L-4600L
-
Volts: 120V-277V
-
Watts: 20W/30W/40W
-
Lamp Base: Integrated
-
Finish: WHITE
-
ANSI Base: Integrated
-
Lamp Type: Integrated LED
-
Fixture Shape: Square
