Product Description

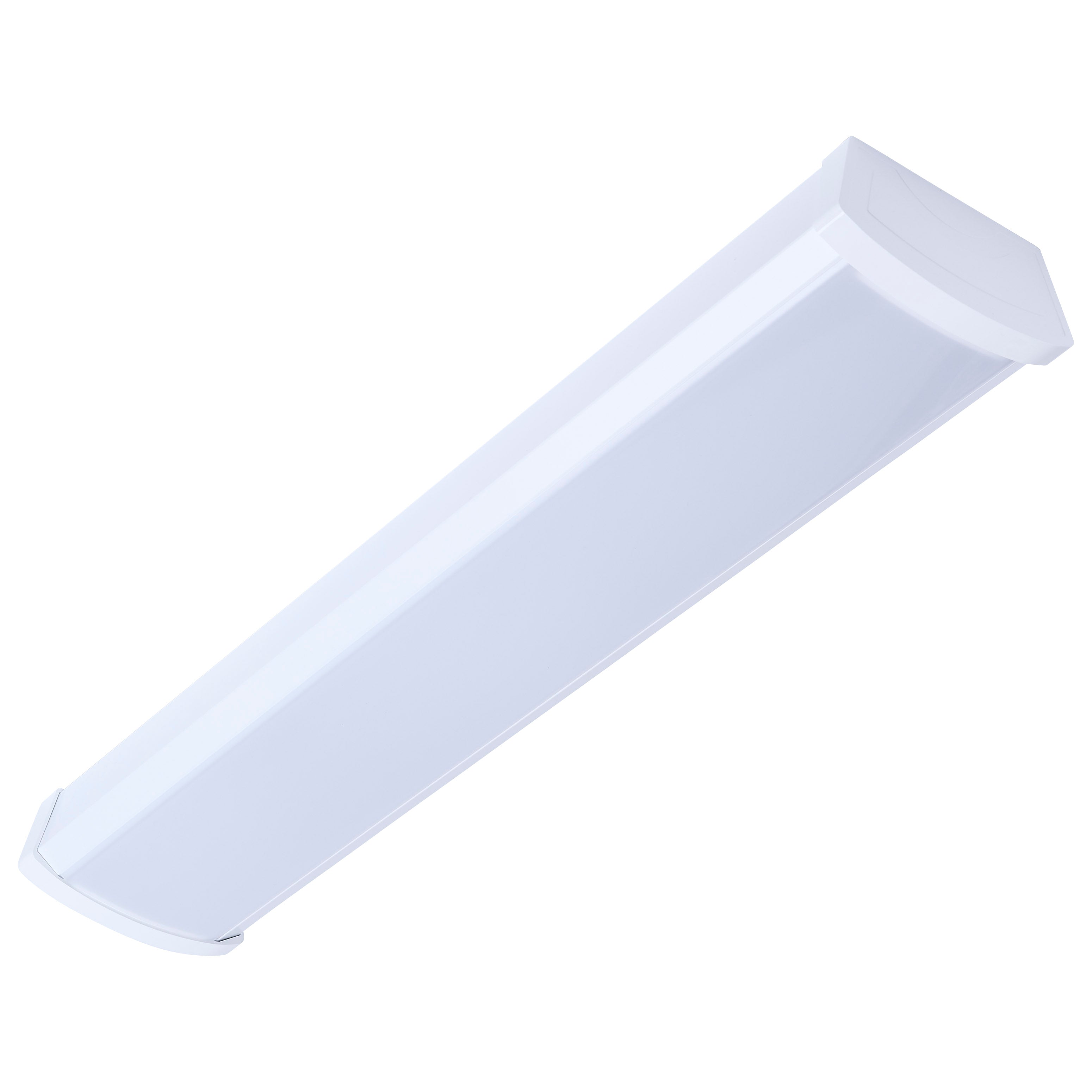

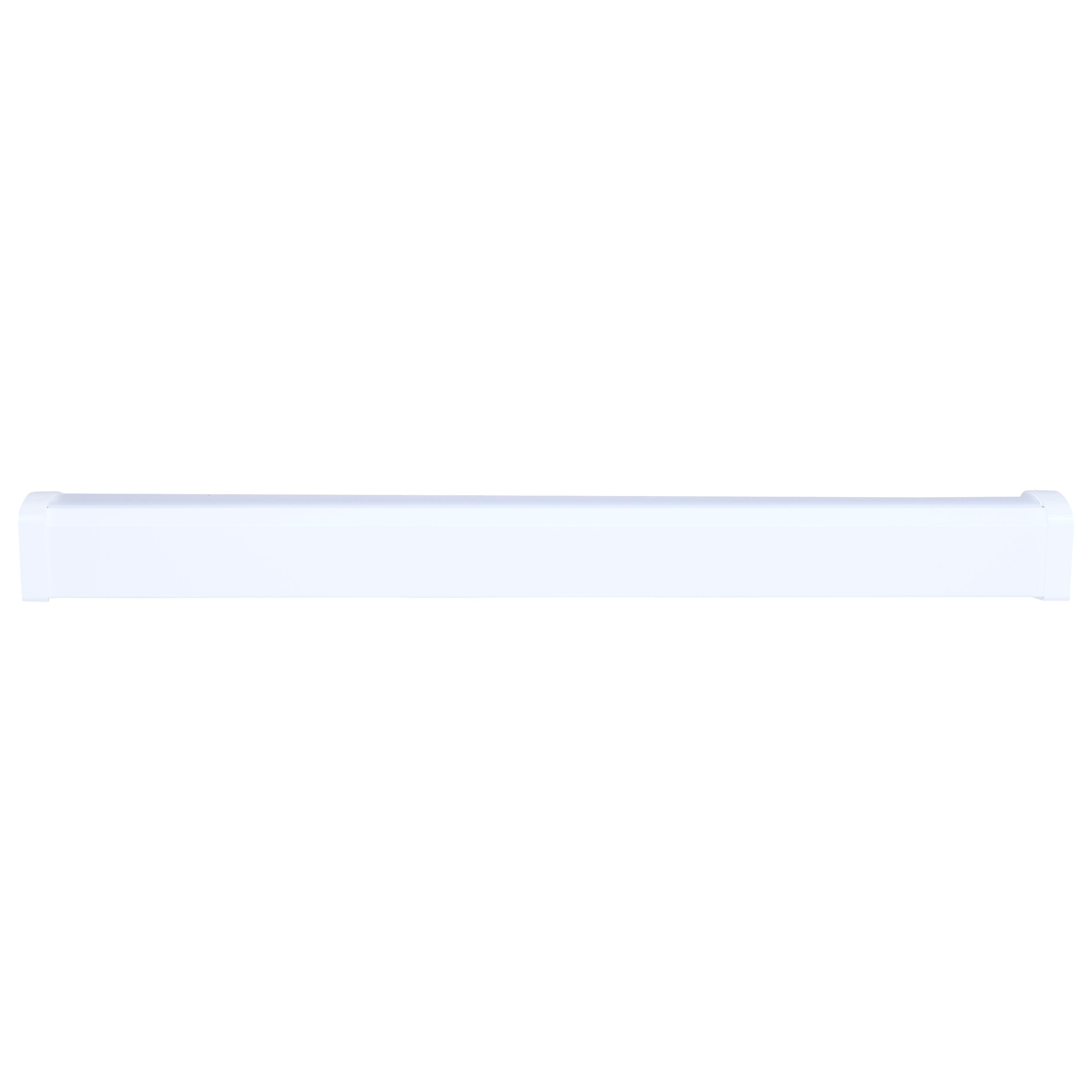

The SATCO 65/1210 is a 2ft LED wrap fixture operating at 20 watts. This ceiling wrap features selectable color temperatures of 2700K, 3000K, 3500K, 4000K, and 5000K, and is designed with a white finish. Operating on 120-277 volts, it provides efficient and customizable lighting solutions for indoor use.
- 20 Watts
- CCT Selectable: 27K/30K/35K/40K/50K
- 120-277 Volt
Product Highlights
This LED wrap fixture offers selectable color temperatures and is suitable for closets, storage rooms, hallways, and utility spaces.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: 65/1210
Technical Specifications
-
Bulb Included: Integrated
-
Material: Steel
-
Fixture Type: Ceiling Wrap
-
Status: Active
-
Style: Utility
-
Surge Protection: Built-in surge protection - 2.5KV
-
Total Harmonic Distortion: <20%
-

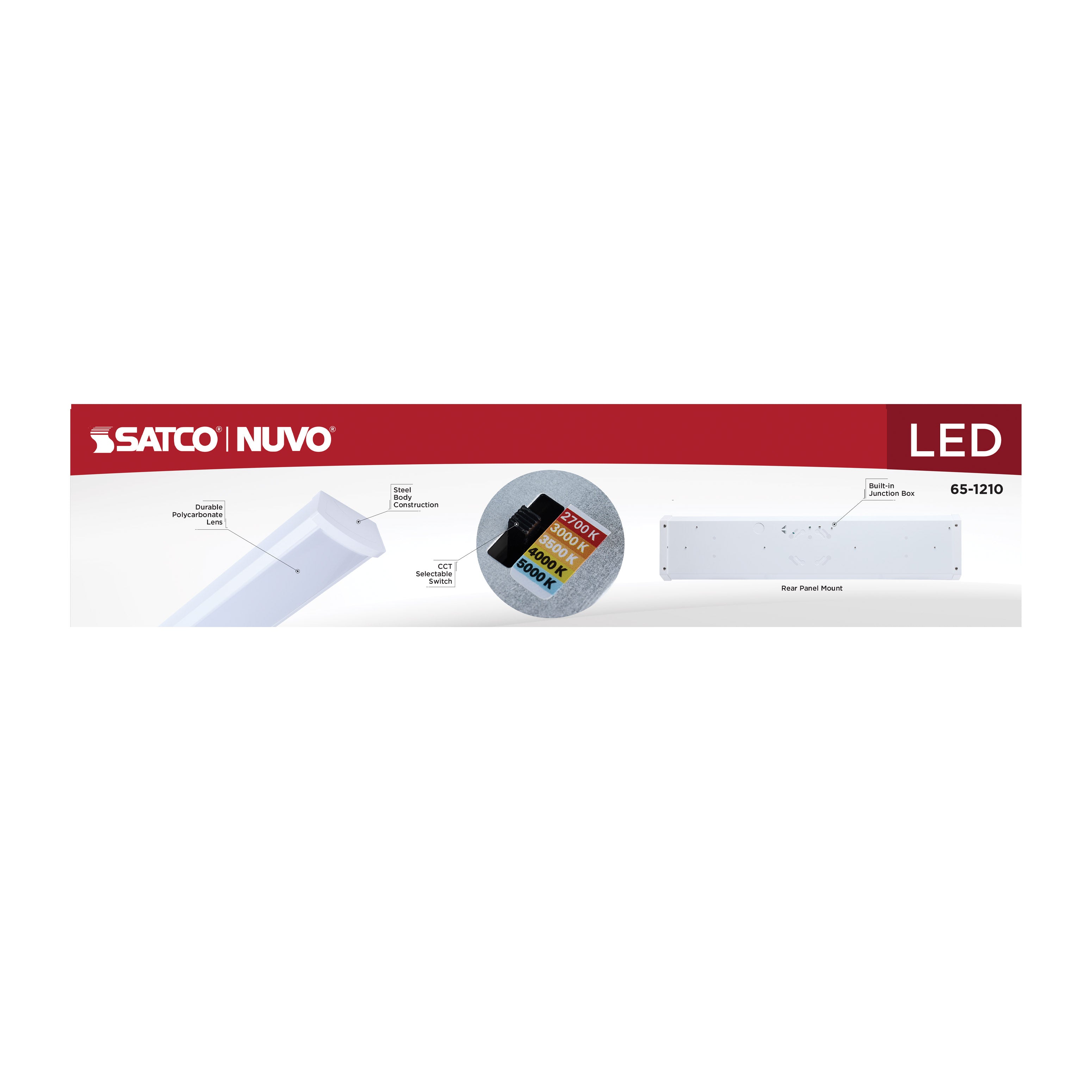

CCT Selectable: True
-
Wattage Selectable: False
-
Finish Family: White
-
Amps: 0.170A
-
Has Camera: False
-
IOT Enabled: False
-
Lens Finish: White
-
Lens Material: Polycarbonate (PC)
-
Lensed: True
-
Power Factor: 0.9
-
Indoor Outdoor: Indoor
-
Product Technology: LED
-
Incandescent Equivalent: 100W
-
Color Temperature: Warm White to Natural Light
-
CRI: 90+
-
Operating Frequency: 50/60Hz
-
Operating Temperature: -20C (-4F) to +40C (+104F)
-
Lumens: 1600L-1650L
-
Input Voltage: 120V-277V
-
Watts: 20W
-
Lamp Base: Integrated
-
ANSI Base: Integrated
-
Lamp Type: Integrated LED
-
Fixture Shape: Linear
-
Hours Rated: 50000
-
Beam Angle (degree): 110
-
Finish: White
-
Height (in.): 2.56
-
Width (in.): 5.5
-
Length (in.): 24.33
-
Safety Listing: cETLus
-
Location Rating: Damp
-
RoHS Compliant: Yes
-
NEC Compliance: Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)
-
FCC Compliant: Yes
-
Canadian Standard ICES-005: Class A
-
Part Number#: 65-1210
-
Type of Area: Office & Small Retail, Parking Garage, Commercial Offices
-
Lamp Life: 41,001 - 50,000 Hours
-
Ballast Start Type: Instant Start
-
Fixture Wattage: 20 W
-
Housing Material: Steel
-
Lens: Polycarbonate
-
Mounting Type: Ceiling/Wall
-
Number Of Lamps: 1
-
Reflector Type: White
-
Socket Type: Integrated
-
Dimmable: No
-
Minimum Start Temperature: -4 Deg F
-
Technology: LED - New Fixture
-
Fixture Length: 2 Feet / 24 Inches
