Product Description
The SATCO 62-1804R1 is a 7-inch LED Disk Light, featuring a 9.5W integrated LED. This fixture offers CCT selectable options from 2700K to 5000K, delivering 780 lumens with a 90+ CRI. Designed for indoor wet locations, it includes built-in 2.5KV surge protection and is dimmable via 120V phase cut. With a 50,000-hour rated life, it is Energy Star certified and compatible with sloped ceilings.

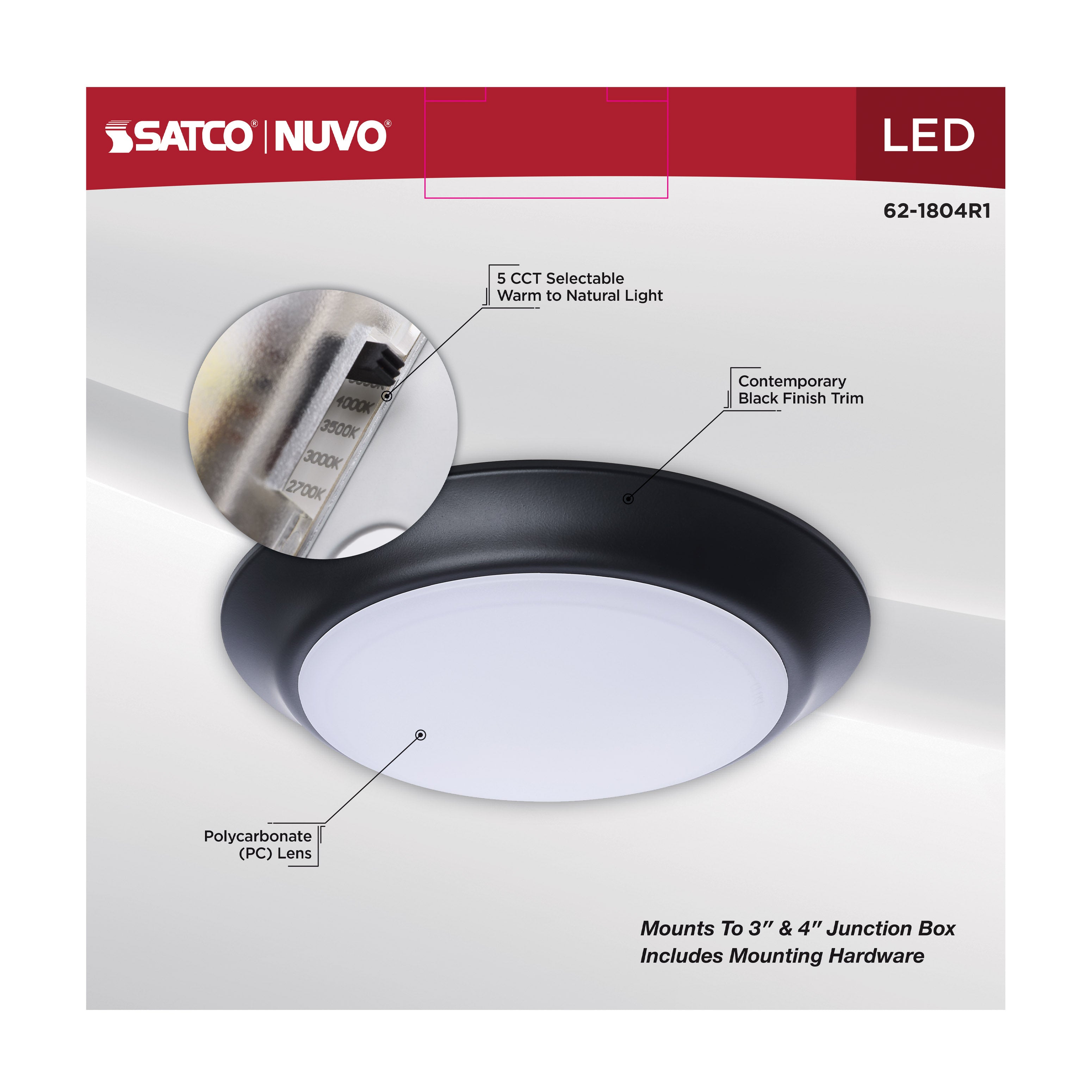

- CCT selectable (2700K/3000K/3500K/4000K/5000K) and dimmable (120V phase cut).
- Built-in 2.5KV surge protection and Wet Location Rated for versatile indoor use.
- Delivers 780 lumens with 90+ CRI and a 50,000-hour rated life.
Product Highlights
Versatile 7-inch LED disk light with selectable CCT, dimming, and wet location rating.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: 62-1804R1
Technical Specifications
-
Lamp Type: Integrated LED
-
Diameter: 7.4 inches
-
Material: Steel
-
Fixture Type: Disk Light
-
Surge Protection: 2.5KV
-
CCT Selectable: Yes
-
Wattage Selectable: No
-
Amperage: 0.110A
-
Lens Material: Polycarbonate (PC)
-
Power Factor: 0.9
-
Sloped Ceiling Compatible: Yes
-
Location Use: Indoor
-
Light Source Technology: LED
-
Incandescent Equivalent: 40W
-
Color Temperature (CCT): 2700K/3000K/3500K/4000K/5000K
-
Dimmable: Yes
-
Rated Life: 50000 Hours
-
Beam Angle: 110 degrees
-
CRI: 90+
-
Dimming Type: 120V Phase Cut
-
Operating Frequency: 60Hz
-
Operating Temperature: -4F to +104F (-20C to +40C)
-
Lumens: 780
-
Input Voltage: 120V
-
Wattage: 9.5W
-
Lamp Base: Integrated
-
Fixture Shape: Round
-
FCC Compliant: Yes
-
Location Rating: Wet
-
ROHS Compliant: Yes
-
Safety Listing: cETLus
-
Energy Star Certified: Yes
-
Title 20: Exempt
-
T24/JA8 Compliant: Yes
