Product Description

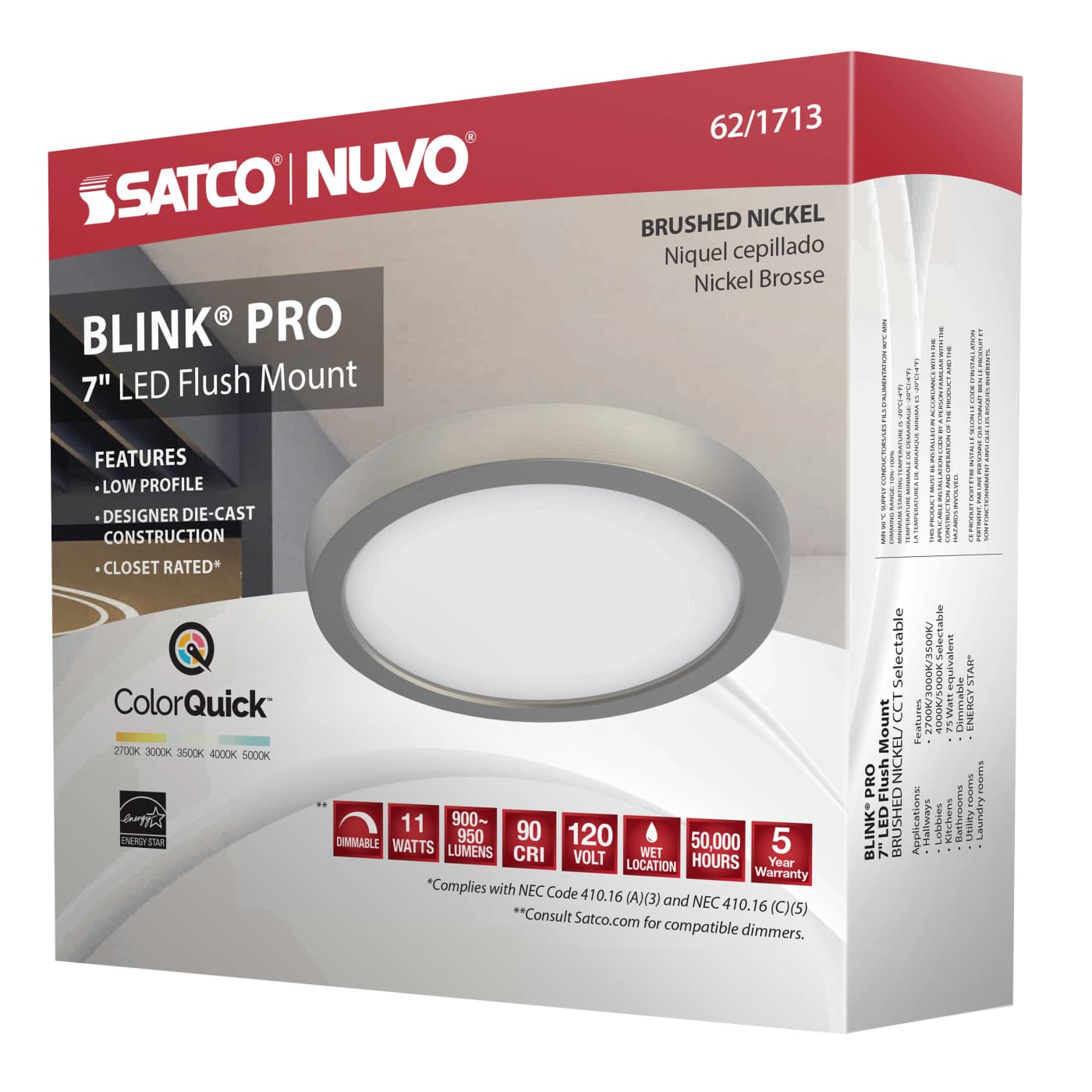

The SATCO 62/1713 Blink LED Fixture is an 11W, 7-inch round, CCT selectable LED fixture designed for indoor flush mount applications. Operating at 120V, this fixture offers a versatile lighting solution with a 50,000-hour rated life and 90+ CRI for accurate color rendering. It features built-in 2.5KV surge protection and is suitable for wet locations, making it ideal for various residential and commercial settings. The fixture is dimmable and compatible with sloped ceilings.
- CCT Selectable (2700K/3000K/3500K/4000K/5000K) and Dimmable for customizable lighting.
- Wet Location Rated and cETLus Listed, ensuring safety and durability in diverse environments.
- Energy Star Certified with a 50,000-hour rated life and 90+ CRI for efficient, high-quality illumination.
Product Highlights
This 11W, 7-inch round LED fixture offers CCT selectable lighting, dimmability, and wet location rating, making it a versatile and energy-efficient choice for various indoor settings.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: 62/1713
Technical Specifications
-
Bulb Included: Integrated
-

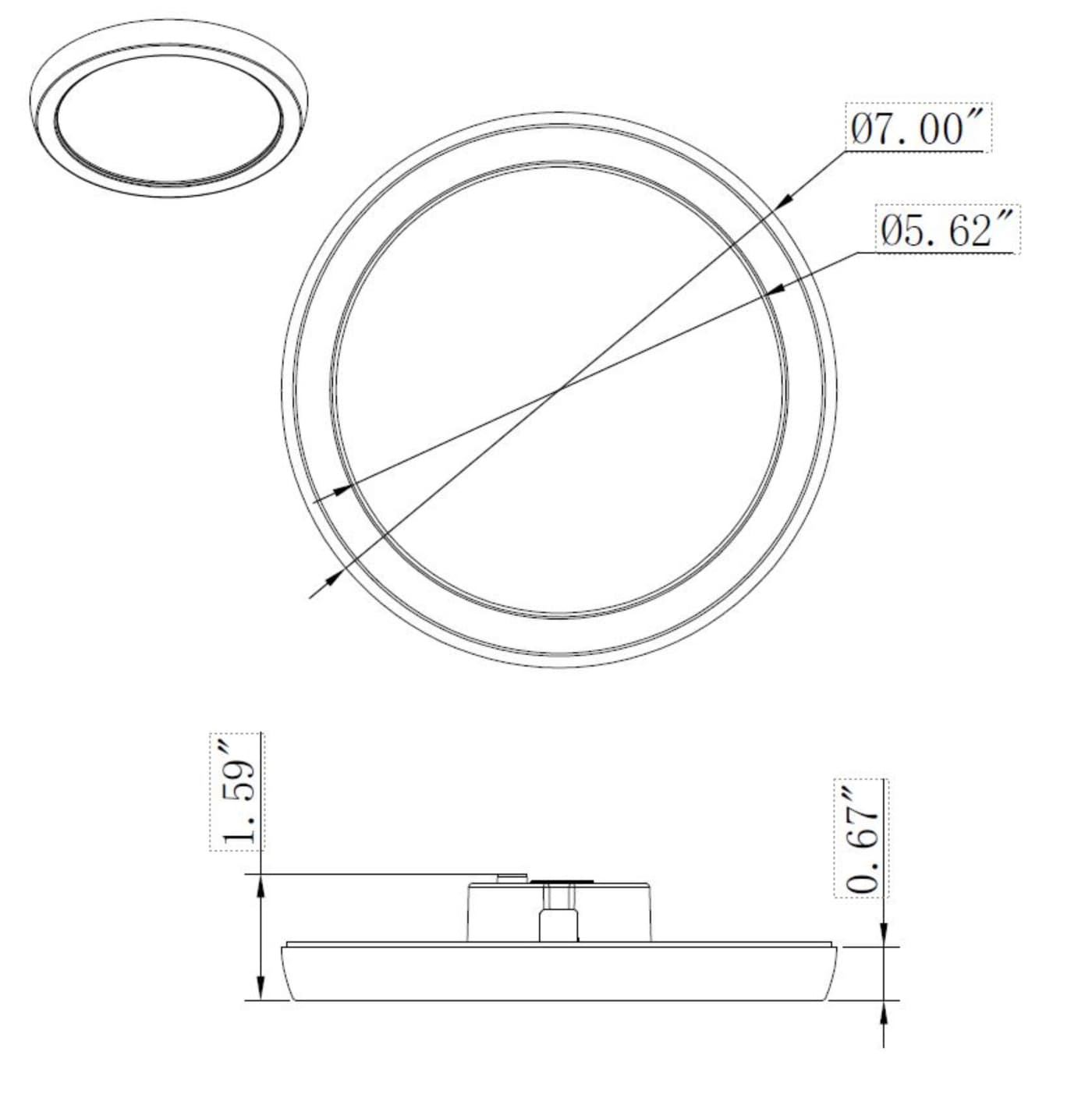

Diameter: 7.0 inches
-
Material: Die-cast Aluminum
-
Fixture Type: Flush Mount
-
Overall Height: 1.59 inches
-
Style: Utility
-
Surge Protection: 2.5KV
-
Total Harmonic Distortion: <20%
-
CCT Selectable: Yes
-
Wattage Selectable: No
-
Finish Family: Nickel
-
UGR: 26.97
-
Hi-Pot Test: DC-1550V
-
Edge-lit: Yes
-
Current: 0.092A
-
Lens Material: Poly methyl methacrylate (PMMA)
-
Power Factor: 0.9
-
Sloped Ceiling Compatible: Yes
-
Location Use: Indoor
-
Technology: LED
-
Incandescent Equivalent: 75W
-
Color Temperature (CCT): 2700K/3000K/3500K/4000K/5000K
-
Dimmable: Yes
-
Rated Life: 50000 hours
-
Beam Angle: 100 degrees
-
Color Temperature Range: Warm White to Natural Light
-
CRI: 90+
-
Dimming Type: Reverse Phase
-
Operating Frequency: 60Hz
-
Operating Temperature: -4F to +104F (-20C to +40C)
-
Lumens: 900-950L
-
Input Voltage: 120V
-
Wattage: 11W
-
Lamp Base: Integrated
-

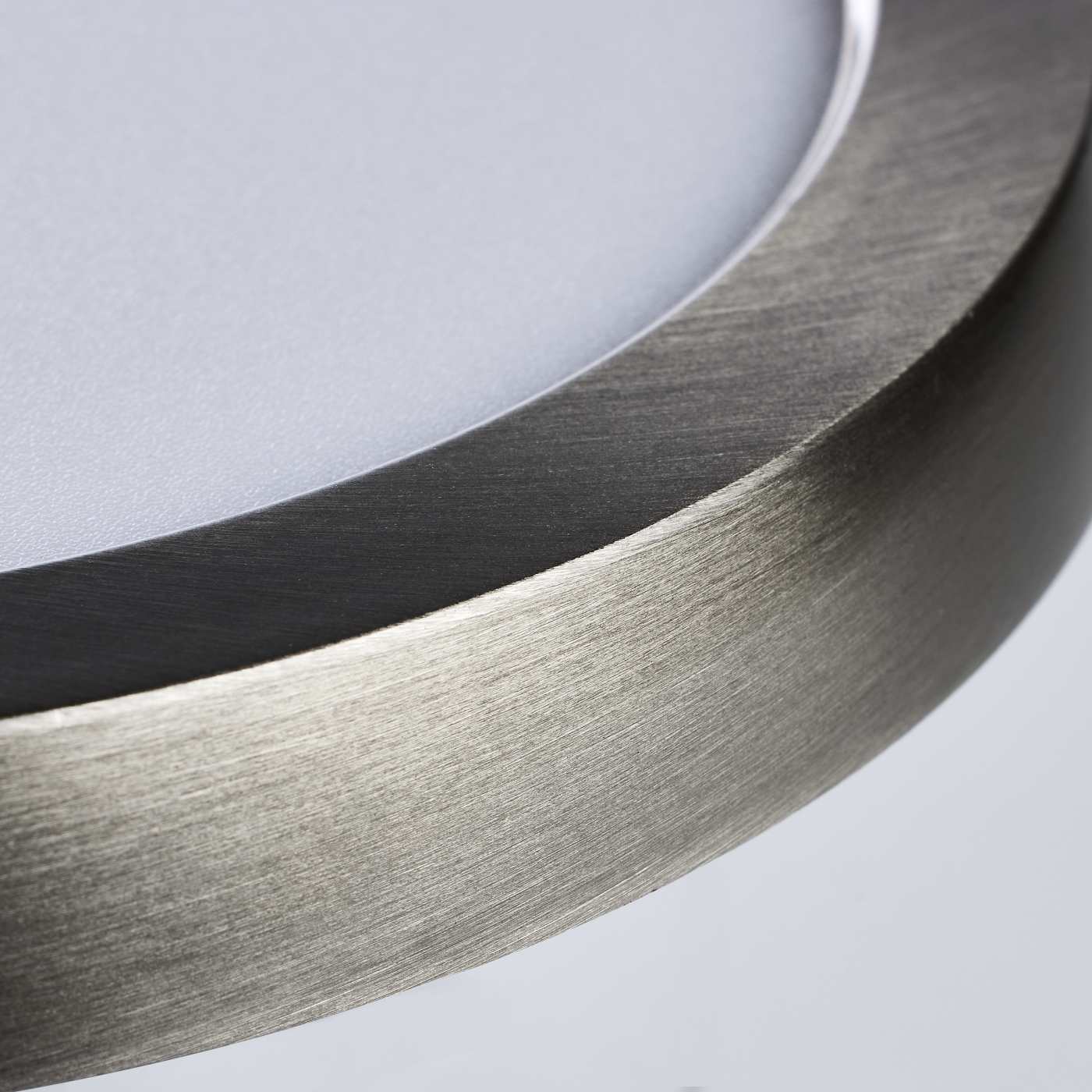

Finish: Brushed Nickel
-
ANSI Base: Integrated
-
Lamp Type: Integrated LED
-
Fixture Shape: Round
-
Installation: Surface mount
-
J-Box Compatibility: 3" & 4" J-box and pancake J-box
-
FCC Compliant: Yes
-
Location Rating: Wet
-
NEC Compliance: Clothes Closet Certified (Reg: 410.16 (A)(3) and 410.16 (C)(5))
-
ROHS Compliant: Yes
-
Safety Listing: cETLus Listed
-
California T24 Listed: Yes
-
DLC Approved: No
-
Energy Star Certified: Yes
-
Title 20: Exempt
-
T24 Compliant: Yes
