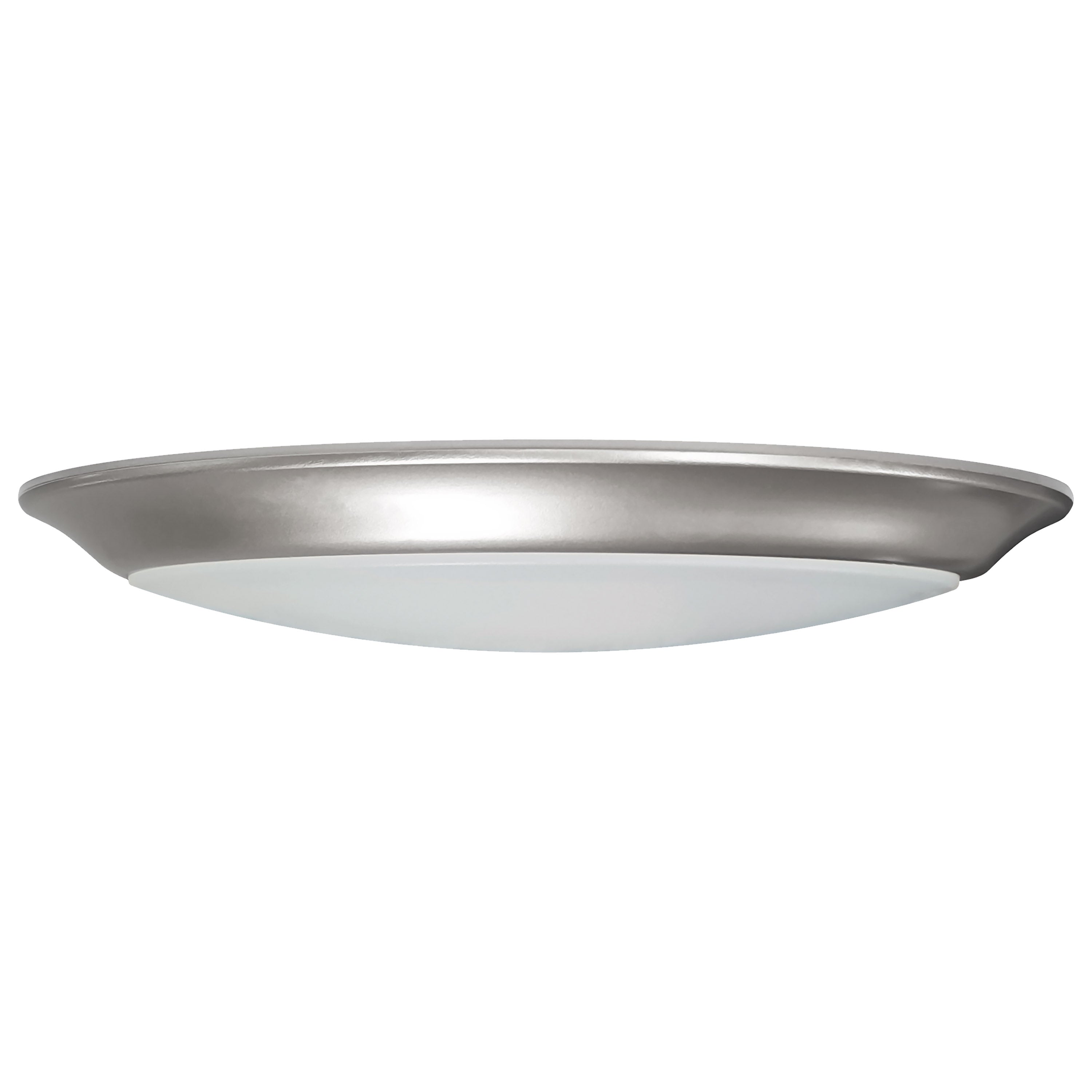

Satco 62/1675 LED Disk Light 16W

Product Description

The Satco 62/1675 is a 10" LED disk light with a brushed nickel finish and ColorQuick selectable CCT technology. The CCT can be selected between 3000K, 4000K, and 5000K. It is an all-purpose lighting solution that is NEC compliant and wet location rated. The fixture is dimmable and sloped ceiling compatible.

• LED Disk Light

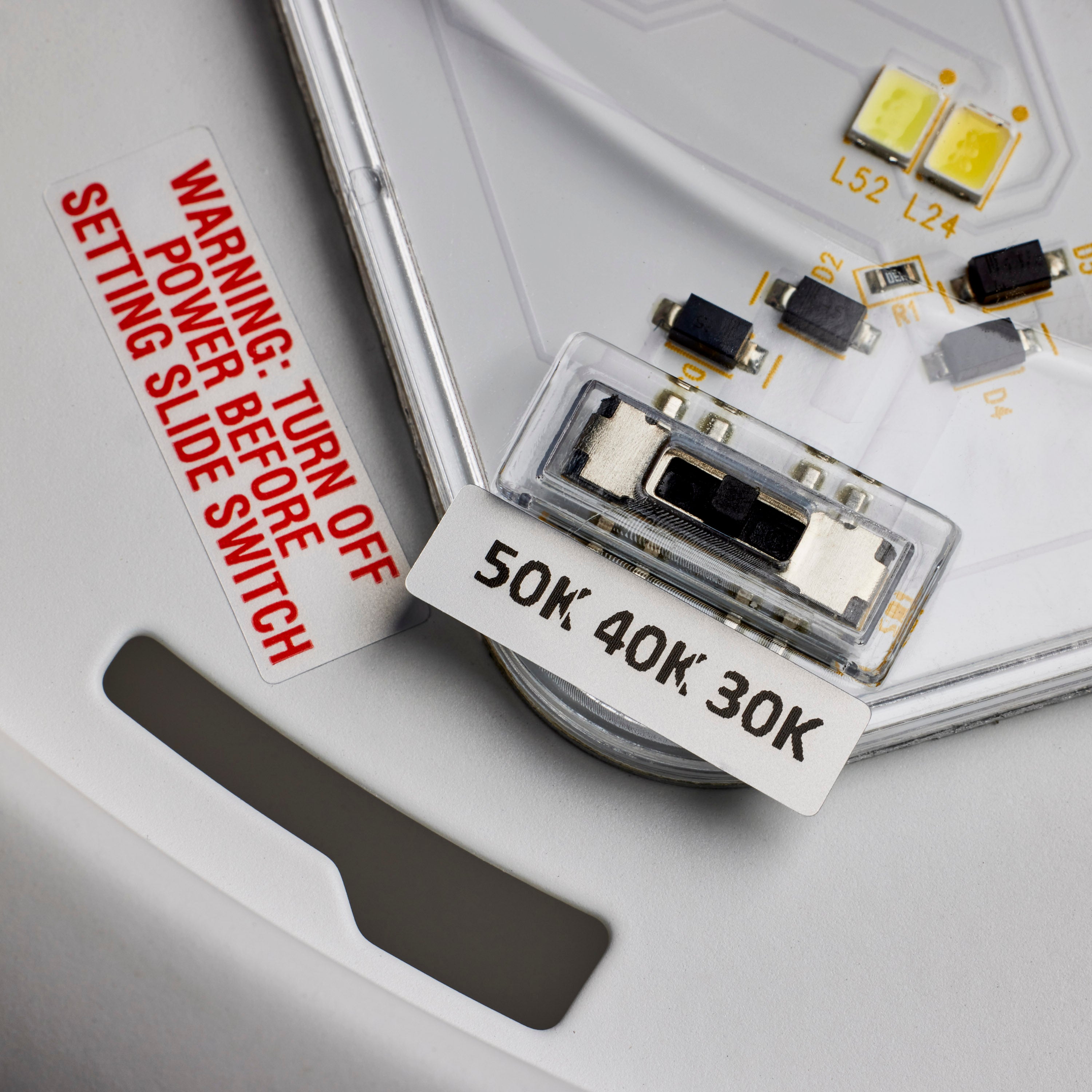

• CCT Selectable 3K/4K/5K
• Dimmable

Product Highlights

This LED disk light features selectable color temperature, easy installation, and is suitable for wet locations.

Product Information

Standard Information

• Brand: Satco
• Manufacturer Part Number: 62/1675
• Country of Origin: Viet Nam

Technical Specifications

• Bulb Included: Integrated
• Diameter: 9.49
• Dimmable Text: Reverse Phase; 120V only
• Shade Finish: Frosted
• Material: Steel
• Fixture Type: Disk Light
• Product Notes: 3000K = 1120L; 4000K = 1220L; 5000K = 1160L
• Style: Transitional
• Surge Protection: Built-in surge protection - 2.5KV
• CCT Selectable: Yes
• Wattage Selectable: No
• Finish Family: Nickel
• Amps: 0.133A
• Has Camera: No
• IOT Enabled: No
• Lens Material: Acrylic
• Power Factor: 0.92
• SDS Class: LED_Fixture
• Sloped Ceiling Compatible: Yes
• Indoor Outdoor: Indoor
• Product Technology: LED
• Incandescent Equivalent: 75W
• CCT (Kelvin Temp): 3000K/4000K/5000K
• Dimmable: Yes-Dimmable
• Hours Rated: 50000
• Beam Angle (degree): 110
• Color Temp: Warm to Cool White
• CRI: 90+
• Dimming Type: Reverse Phase
• Operating Frequency: 60Hz
• Operating Temp: -35C (-31F) to +50C (+122F)
• Lumens: 1120 to 1220 Lumens
• Volts: 120v
• Watts: 16W
• Lamp Base: Integrated
• Finish: Brushed Nickel
• ANSI Base: Integrated
• Lamp Type: Integrated LED
• Fixture Shape: Round
• Average Life: 50, 000 hr
• Ballast/Driver Type: Dimmable
• Color Rendering Index (CRI): 90
• Color Temperature: 3000, 4000, 5000 K
• Fixture Material: Steel
• Light Color: Warm to Cool White
• Temperature Rating: -31 to 122 deg F
• Voltage Rating: 120 V
• Wattage Rating: 16 W
• Catalog Number: 62/1675
• Manufacturer: Satco
• Brand: Nuvo
• Country of Origin: Viet Nam
• Made in USA: No
• Application: Close to Ceiling Lighting
• Mounting: Ceiling
• Special Features: Lumens: 1120-1220 ; CCT: 3000K/4000K/5000K ; Color Temperature: Warm to Cool White ; CRI: 90 ; Hours Rated: 50000 ; ADA Compliant: Yes ; Beam Spread: 110 degrees ; Dimmable: Dimming range from 100 to less than or equal to 20 percent depending on dimmer control ; Incandescent Equivalent: 75W ; Indoor/Outdoor: Indoor ; Lens Material: Acrylic ; Operating Temperature: -35C (-31F) to a maximum of +50C (+122F) ; Location Rating: Wet ; Lens Finish: Frosted ; Sloped Ceiling Compatible: Yes ; Built-in surge protection - 2.5KV ; Warranty: 5 Year Limited - Fixtures
• Standard: cETLus
• UPC: 045923616754
• GTIN: 00045923616754
• Item Type: Flush
• Length: 9.49
• Length UOM: Inch
• Width: 9.49
• Width UOM: Inch
• Height: 1.28
• Height UOM: Inch
