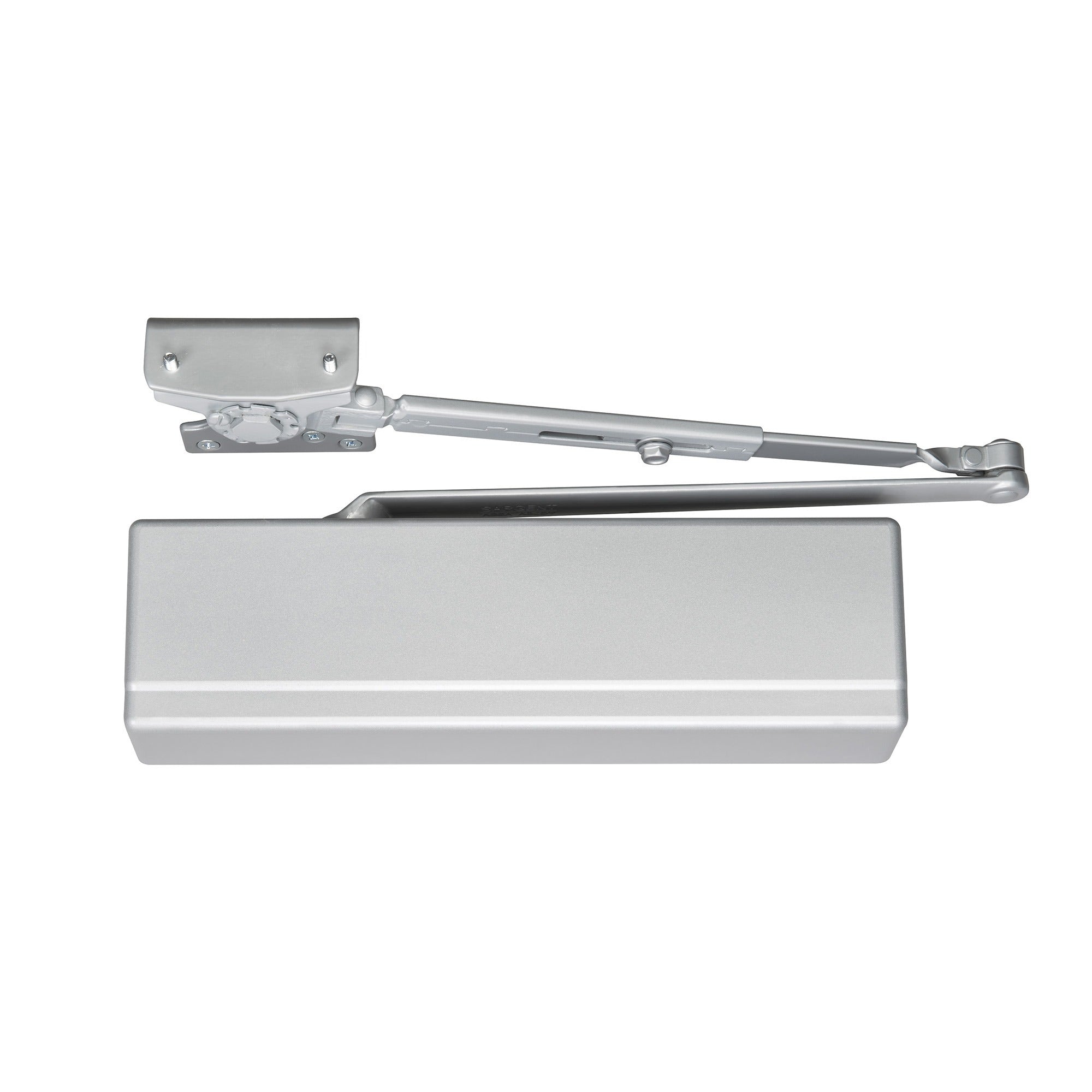

Sargent TB351P10EN Parallel Arm Door Closer

Product Description

The SARGENT TB351P10EN is a heavy-duty parallel arm door closer designed for commercial, institutional, and industrial door applications. It mounts in a parallel arm configuration and ships with thru bolts for a secure, positive connection to the door and frame. The finish is sprayed aluminum enamel, providing a clean, professional appearance suited for high-traffic environments. At 10.4 pounds, this is a substantial unit built for long-term, high-cycle service. Licensed door hardware professionals and commercial locksmiths are the typical installers for this type of hardware.

The TB351P10EN is intended for commercial and institutional buildings including healthcare facilities, schools, and industrial settings where a heavy-duty parallel arm closer is required. The parallel arm configuration is commonly used when the door swings toward a wall or partition that would obstruct a standard regular arm mount. It is sold as an individual unit and is appropriate for both new construction and retrofit applications on standard commercial door openings.

Key Features

• Parallel arm mount configuration suits doors that swing toward walls or obstructions
• Thru bolt fasteners included for a secure, vibration-resistant connection
• Sprayed aluminum enamel finish suitable for commercial architectural applications
• Heavy-duty construction rated for high-traffic, high-cycle door openings
• Weighs 10.4 pounds — robust, full-size closer body

Compatibility

Designed as an OEM-style heavy-duty parallel arm door closer for commercial, healthcare, educational, and industrial door applications where a parallel arm mount is specified.

Installation Notes

Installation should be performed by a licensed door hardware professional or commercial locksmith familiar with ADA and local building code requirements for door closing force and speed. Power off any access control or electrified hardware integrated with the door assembly before beginning work. Verify door and frame construction can support the thru bolt fastener pattern before mounting. Adjust closing speed and latching speed via the valve screws on the closer body only after the unit is fully mounted and secured.
