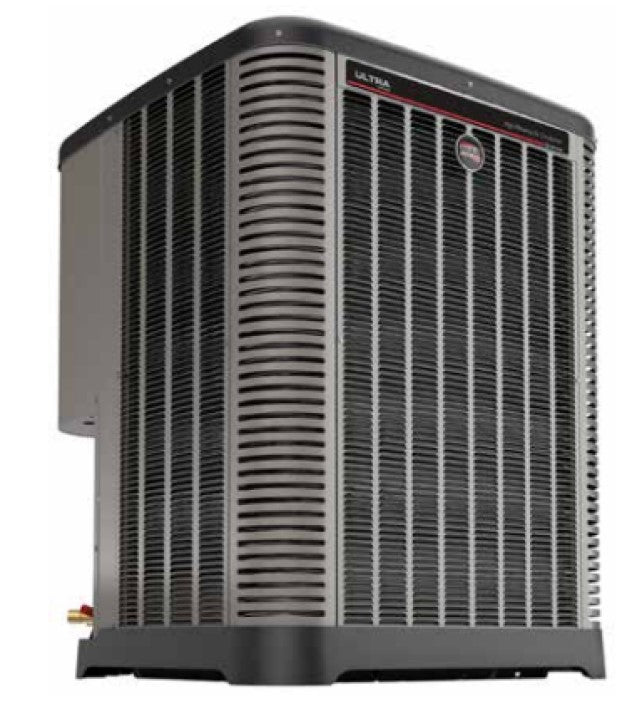

Ruud UA19AY24AJVCA Condenser 2 Ton

Product Description

The Ruud UA19AY24AJVCA is a residential condensing unit with a capacity of two tons and a SEER2 rating of 19+. This unit runs on R454B refrigerant and operates at a voltage of 208/230-1-60. It features a variable speed scroll compressor, which enhances efficiency and performance. This model is also EcoNet enabled, making it suitable for advanced system configuration and optimization.

• EcoNet Enabled for system optimization.
• Includes PlusOne Diagnostics & Bluetooth for easy setup.
• Designed for efficient serviceability and reliability.

Product Highlights

This unit is ideal for both residential and commercial applications, providing reliable cooling with optimal performance efficiency.

Product Information

Standard Information

• Application: Condenser SEER2 19+
• Tonnage: 2 tons

Technical Specifications

• Voltage Data: 208/230-1-60
• Refrigerant Type: R454B
• Compressor Type: Variable Speed Scroll
• Maximum Overcurrent Protection: 20 amps
• EcoNet Enabled
• Capacity BTU/HR: 24,000
• Standard Rating (DBA): 68-59
• Liquid Line O.D.: 3/8 inches
• Suction Line O.D.: 3/4 inches
• Outdoor Fan Diameter: 26 inches
• Outdoor Fan Number of Blades: 3
• Motor HP: 1/2
• Motor RPM: Variable speed
• Length: 36.13 inches
• Width: 36.13 inches
• Height: 45.17 inches
• Shipping Weight: 238 lbs
• Individual Item Weight: 230 lbs
• Nominal Capacity: 2.0 Ton
• Voltage Rating: 208/230/1/60
• BTU Rating: 24000 BTU/hr
• Cooling Stage(s): Inverter
• Electrical Phase(s): 1 Phase
• Decibel Level: 68 dB
• Suction Valve Size: 3/4 inches
• Liquid Valve Size: 3/8 inches
• Parts Warranty: 10 years
• Compressor Warranty: 10 years
• AHRI Certificate #: 216705179
• Phase: 1
• Volts: 208/230
