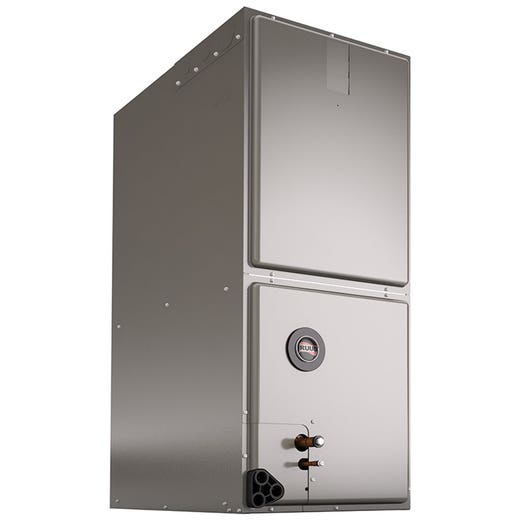

Ruud RH2VZ4821STANNJ Air Handler 4 Ton

Product Description

The Ruud RH2VZ4821STANNJ is a reliable 4 ton air handler unit designed for efficient climate control. This unit features a 2-stage constant CFM operation and is suitable for multi-position installation. It operates on standard voltage of 208/240 and uses R-410A refrigerant for optimal cooling.

• R-410A Refrigerant for environmental safety
• Multi-position configuration for flexible installation
• 21-inch width allows for compact fitting in tight spaces

Product Highlights

This air handler unit gradually adjusts from low to full capacity to ensure comfort while maximizing energy efficiency when paired with an EcoNet Smart Thermostat.

Product Information

Standard Information

• Brand: Ruud
• SKU: RH2VZ4821STANNJ

Technical Specifications

• Configuration: Multi-Position
• Electrical: 208/240/1
• Nominal Capacity: 48,000 BTU
• Refrigerant: R-410A
• Width: 21 inches
• Product Length: 21.7 inches
• Product Height: 55.5 inches
• Nominal CFM: 1600 CFM
• Phase: 1 Phase
• Tons: 4 tons
• Liquid Line (OD): 3/8 inches
• Vapor/Gas Line (OD): 7/8 inches
• Air Filter Nominal Size: 20 x 20 inches
• Fuse Size (Max): 15 A
• Hertz: 60Hz
• Stage: Two Stage
• Horsepower (HP): 3/4
