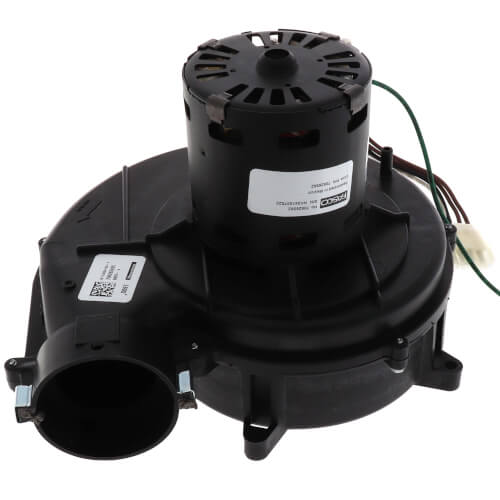

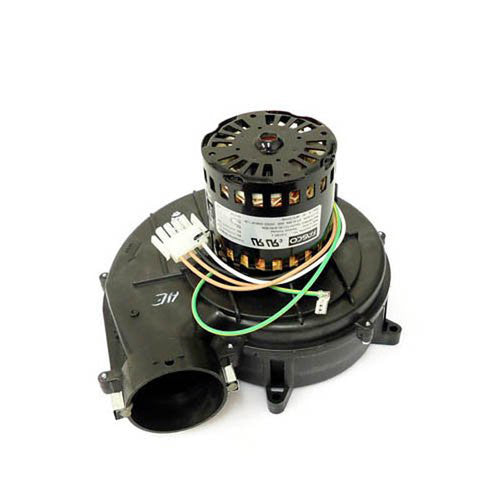

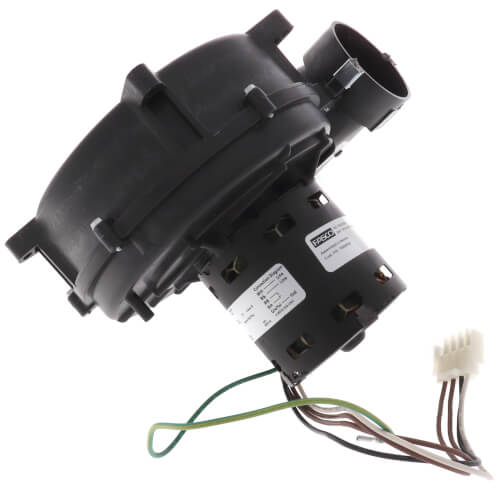

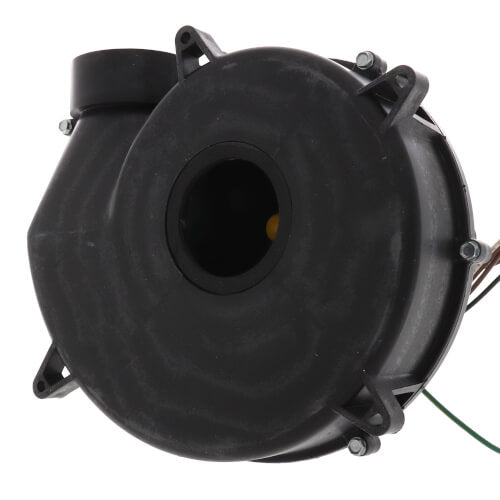

RUUD 70-24033-01 Draft Inducer Blower

Product Description

The RUUD 70-24033-01 is a draft inducer blower suitable for Rheem HVAC and water heating systems. This blower works at a voltage of one hundred fifteen to one hundred twenty volts and operates at sixty hertz. It features a permanent split capacitor motor along with ball bearings to ensure reliable performance. The design allows for right-side discharge and includes a polymeric inducer housing. Some units may include a gasket.

• Draft inducer blower designed for Rheem and RUUD systems.
• Single-speed operation with ball bearings for enhanced durability.
• Voltage range of one hundred fifteen to one hundred twenty volts with a frequency of sixty hertz.

Product Highlights

This product is essential for ensuring efficient airflow in heating systems, providing reliable performance and durability.

Product Information

Standard Information

• Brand: RUUD
• MPN: 70-24033-01

Technical Specifications

• Horsepower: 1/20
• Input Current: 0.75 amps
• Input Voltage: 120 volts
• Frequency: 60 Hz
• RPM: 3450
• Number of Speeds: 1
• Bearings: Ball
• Inducer Housing Material: Polymeric
• Stages: 1
• Side of Discharge: Right
