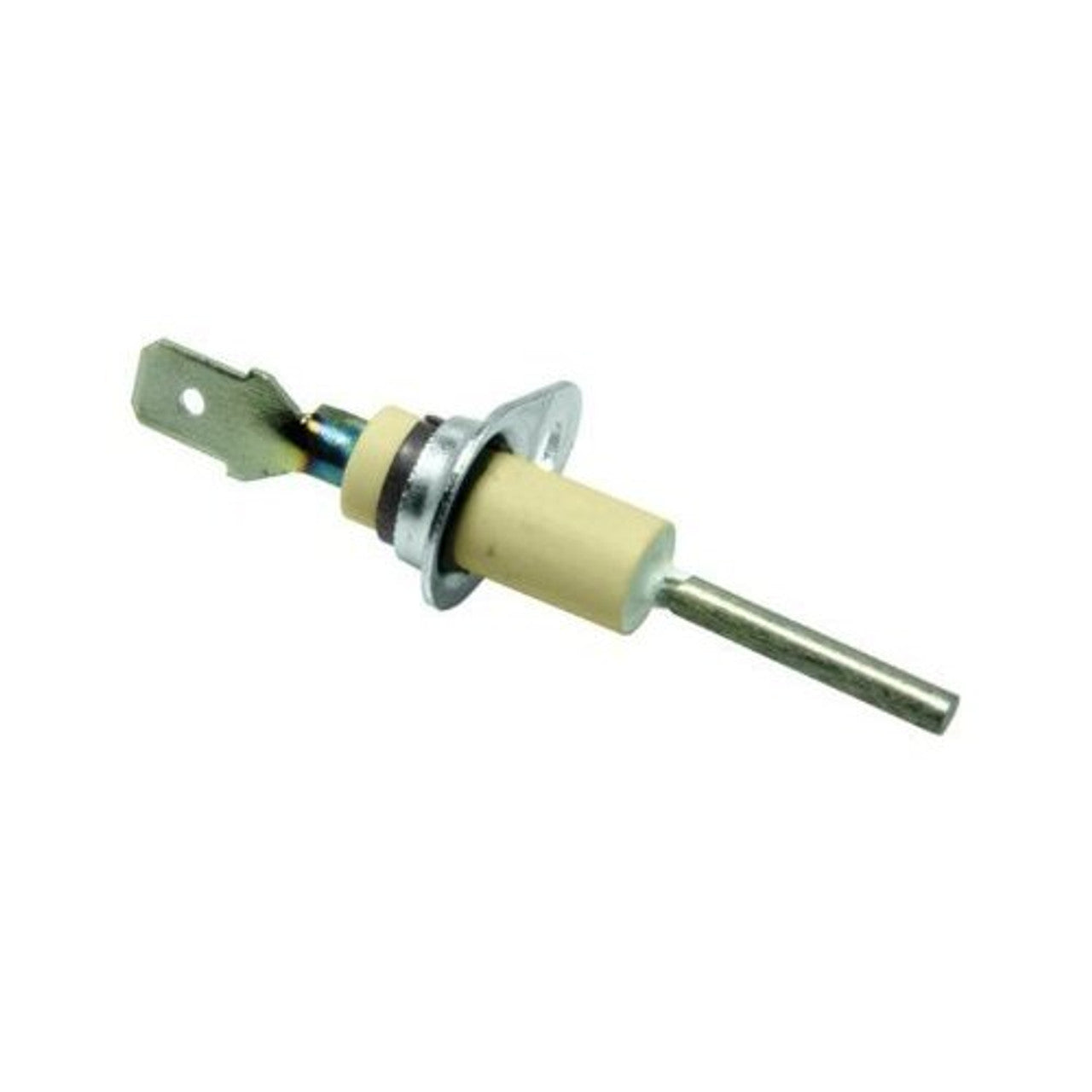

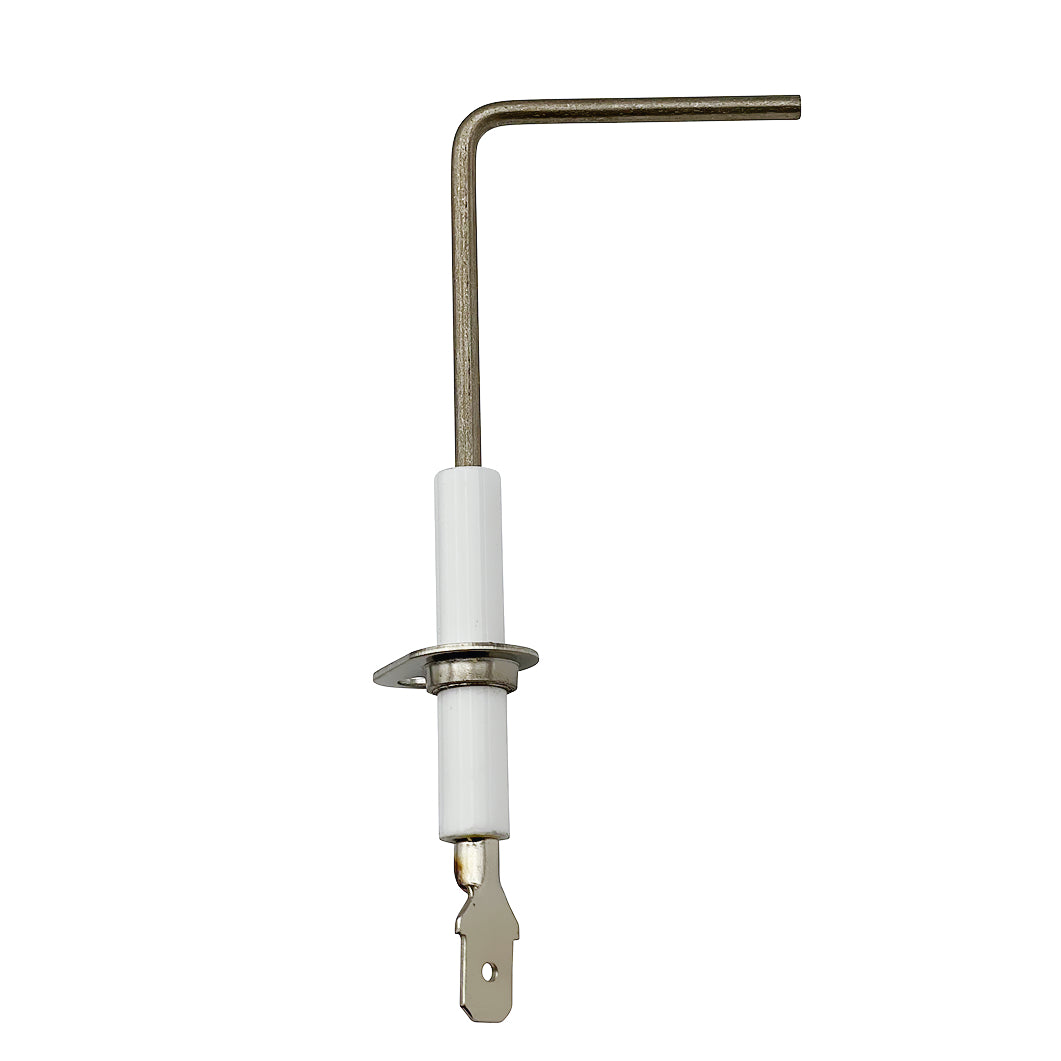

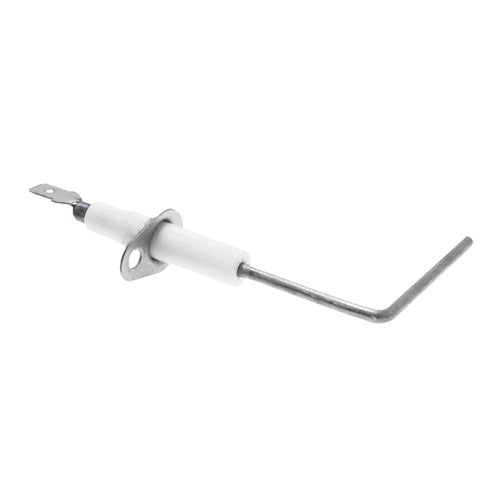

RUUD 62-23543-02 Flame Sensor

Product Description

The RUUD 62-23543-02 is a flame sensor used in gas-fired heating systems. This component confirms the presence of a burning flame in the furnace. It detects when the burner flame ignites and sends a signal to the control board, stopping the igniter from functioning. The flame sensor verifies adequate combustion, promoting safe operation of the furnace.

• Features a quarter-inch male quick connect.
• Mounting flange to sensor tip length is two and one-sixteenth inches.
• Sensor offset measures one and thirteen-sixteenths inches.

Product Highlights

This flame sensor is critical for the safe operation of gas appliances.

Product Information

Standard Information

• Brand: RUUD
• MPN: 62-23543-02

Technical Specifications

• Mount Type: Flange Mount
• Angle - Sensor Offset: 90 degrees
• Termination: quarter-inch Male Quick Connect
• Length - Mounting Flange to Sensor Tip: two and one-sixteenth inches
• Length - Sensor Offset: one and thirteen-sixteenths inches
• Approximate Height: .55 inches
• Approximate Length: three point eight inches
• Approximate Width: three point one inches
• Compatibility: Designed for use with select Rheem and Ruud gas appliances
