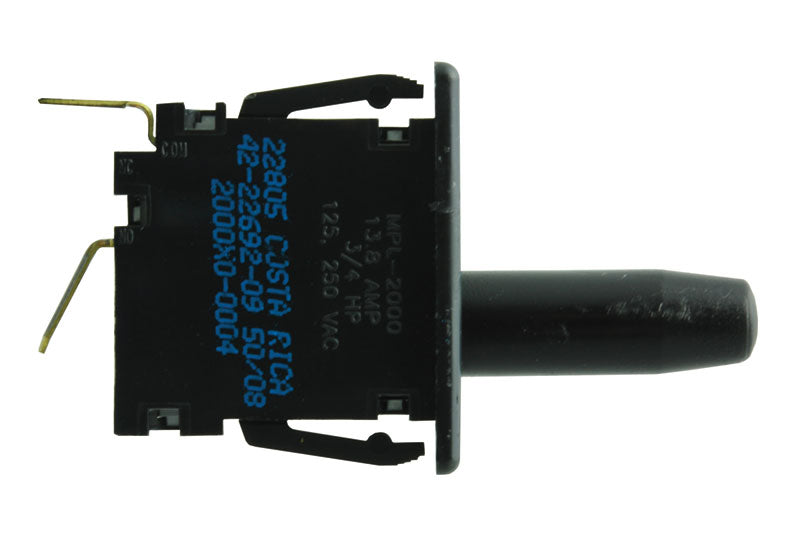

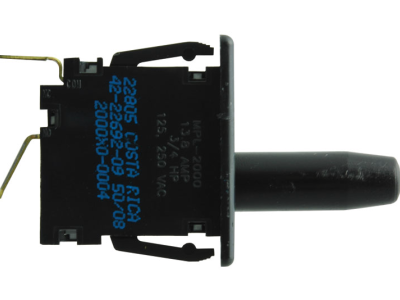

RUUD 42-22692-09 Push Button Door Switch

Product Description

The RUUD 42-22692-09 is a push button door switch intended for door switch applications. It features a single pole single throw normally open (SPST-NO) switch action which allows for easy operation. The switch is connected using one quarter-inch quick connects, simplifying installation. The button actuation provides reliable operation in various environments.

• Push button actuation
• SPST-NO switch action
• 1/4 inch quick connect electrical connections

Product Highlights

This product is suitable for controlling electric circuits from a door, ensuring ease of use and safety in operation.

Product Information

Standard Information

• Brand: RUUD
• MPN: 42-22692-09

Technical Specifications

• Application: Door Switch
• Primary Voltage: 120 / 230 Vac
• Current Rating (A): 13.8
• Actuation: Push Button
• Mounting Hole Width (in.): 9/16
• Mounting Hole Height (in.): 1-1/8
• Reset Position Length (From Face) (in.): 1-1/16
• Operating Position Length (From Face) (in.): 7/8 - 1
• Overtravel Position Length (From Face) (in.): 19/32
• Electrical Connection Type: 1/4 in. Quick Connects
• Switch Action: SPST - NO
• Height (inches): 0.70
• Length (inches): 5.60
• Weight (pounds): 0.03
• Width (inches): 3.95
