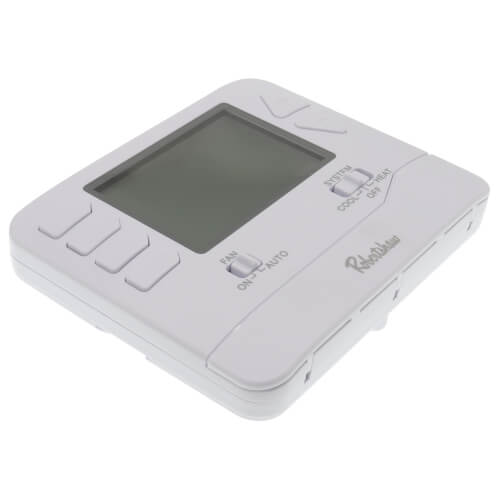

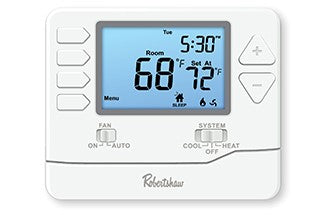

Robertshaw RS9110 Digital Programmable Thermostat 24 Volts (1 Heat/1 Cool)

Product Description

The Robertshaw RS9110 digital programmable thermostat offers precise temperature control for single-stage heat and cool systems. Featuring a 4.6-inch backlit display and compatibility with 24V systems, the RS9110 is ideal for both residential and commercial applications.

• Programmable for 7-day, 5-1-1 schedules
• Large terminal blocks and universal sub-base for easy installation
• Adjustable temperature differential for energy optimization

Product Highlights

This thermostat provides intuitive control with a clear display and easy-to-use programming menus. It offers features such as short cycle protection and a filter change reminder, making it a versatile choice for HVAC systems.

Product Information

Standard Information

• Brand: Robertshaw
• MPN: RS9110
• Model Name: Pro Series Programmable Thermostat
• Application: Single-Stage (Heat/Cool)

Technical Specifications

• Voltage Rating: 24 Volts
• Screen Size: 4.6 Inches
• Display Type: Digital
• Control Type: Button Control
• Power Source: Battery Powered / Hardwired
• Dimensions: 4.7 inches W x 3.8 inches H x 1 inch D
• Warranty: 6 Years Limited
• Temperature Control Range: 44 to 90 degrees Fahrenheit
• Operating Temperature Range: 41 to 95 degrees Fahrenheit
• Mounting Type: Wall/Junction Box
• Batteries Required: 2 AAA (included)
• Terminal Designation: Rh, Rc, C, Y, W, G, O, B
